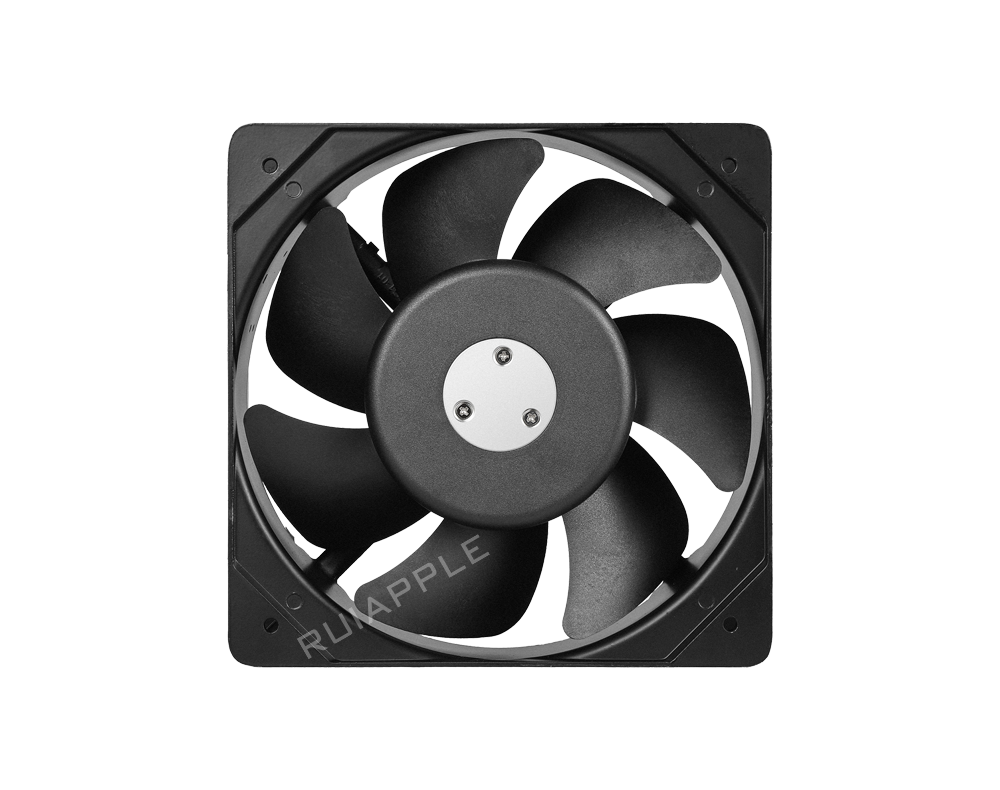

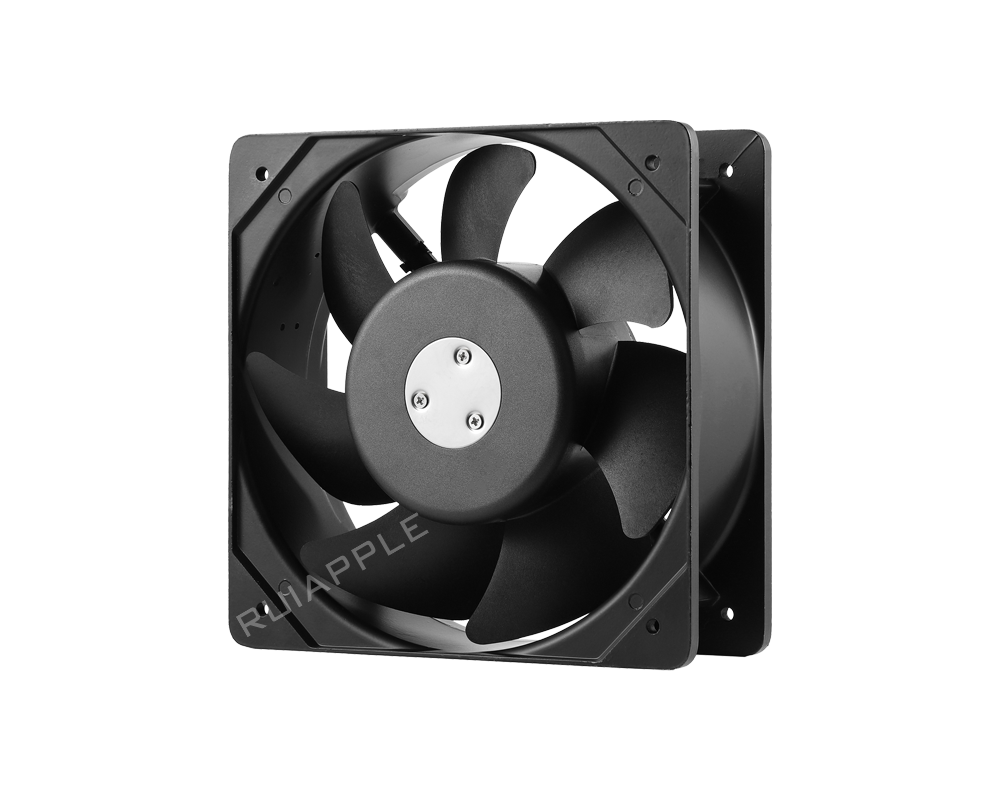

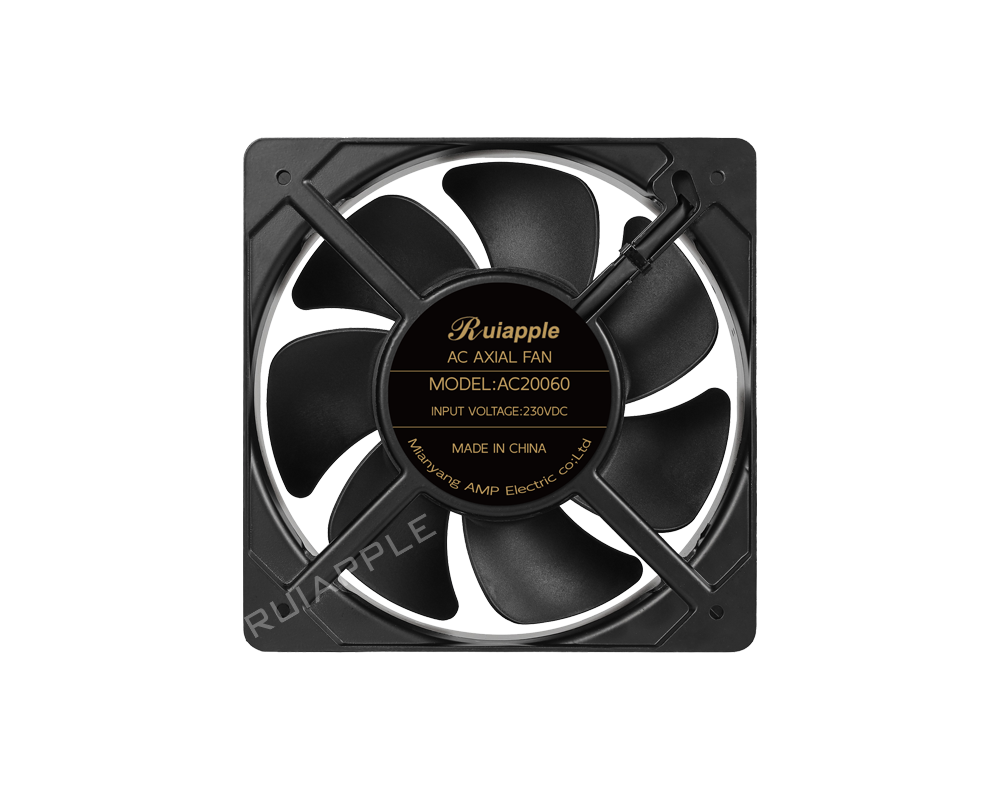

The AC 20060 axial fan, with dimensions of 200*200*60mm, features a robust aluminum alloy frame and heat-resistant thermoplastic blades. It is designed for various industrial applications such as electronic equipment cabinets, industrial machinery, and display cases. The fan uses a dual ball bearing design, ensuring long-term stable operation in high-temperature and harsh environments, with a lifespan of up to 70,000 hours. It operates on 110-120V or 220-240V AC. The fan also supports multiple mounting options, allowing for horizontal or vertical installation, making it ideal for applications requiring efficient cooling.
Date Sheet
Model: AC20060
Fan Type: Axial Fan
Motor: AC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT, Flame Retardant UL-94V0
Frame Material: Die Cast Aluminum Alloy(ADC12)
Insulation Class: Class B
Insulation Resistance: 10M/500VDC
Voltage Strength: 2 Minutes /1800AVC-5mA
Humidity Range: H20%-RH75%
Operating Temperature: -10℃～70℃
Maximum of Life Expectancy: 70000 Hours
Power Supply: 110/220V 50/60Hz Or Customized
Certification: CE ROSH
