AC9225 29CFM 65Pa 29Db
DESCRIPTION:

The AC 9225 axial fan measures 90*90*25 mm and features a robust aluminum alloy frame with heat-resistant thermoplastic blades. It is designed for a variety of industrial applications, such as electronic equipment cabinets, industrial machinery, and display cases. The fan employs a dual ball bearing design, ensuring stable operation for extended periods in high-temperature and harsh environments, with a lifespan of up to 70,000 hours. It operates at a voltage of 110-120V or 220-240V AC. Additionally, this fan supports multiple mounting options, allowing for horizontal or vertical installation, making it suitable for applications requiring efficient heat dissipation.

Date Sheet
Detailed Parameters

Model: AC9225

Fan Type: Axial Fan

Motor: AC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT, Flame Retardant UL-94V0

Frame Material: Die Cast Aluminum Alloy(ADC12)

Insulation Class: Class B

Insulation Resistance: 10M/500VDC

Voltage Strength: 2 Minutes /1800AVC-5mA

Humidity Range: H20%-RH75%

Operating Temperature: -10℃~70℃

Maximum of Life Expectancy: 70000 Hours

Power Supply: 110/220V 50/60Hz Or Customized

Certification: CE ROSH

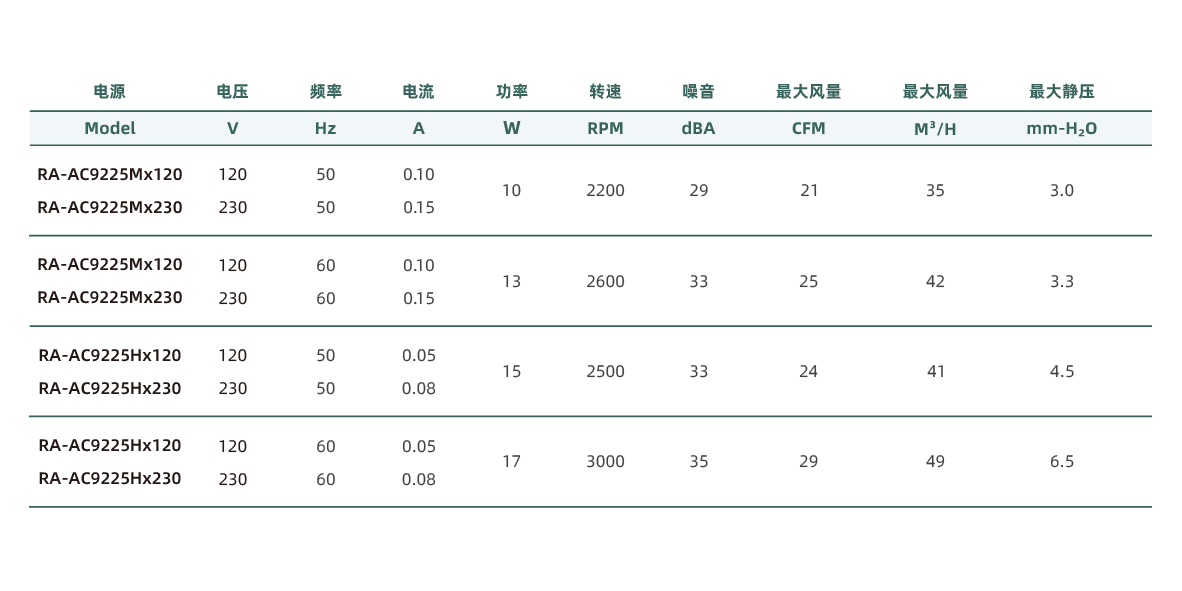

Performance Parameter

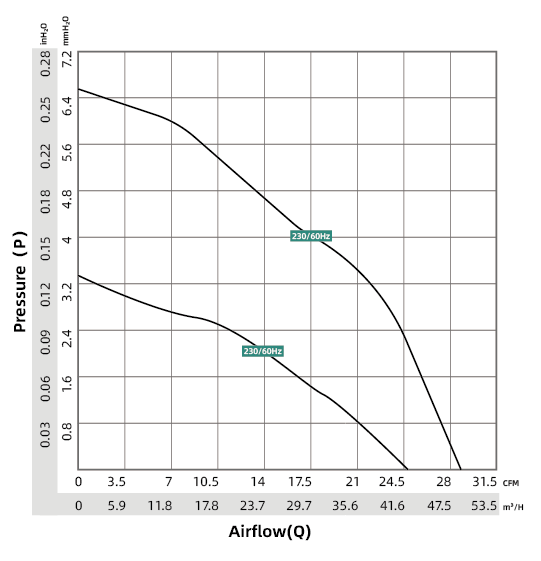

P-Q Curve Chart

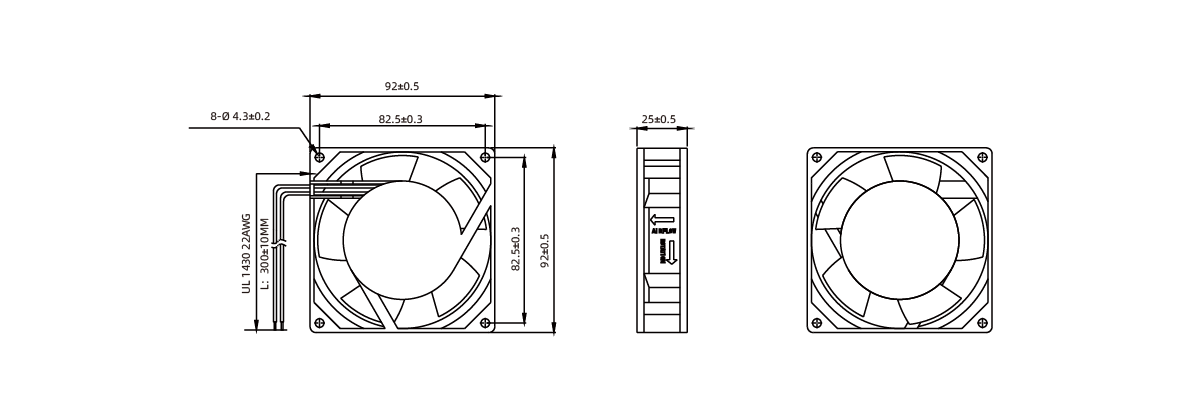

Drawing
