DCC-10025 53.5CFM 328.8Pa 30.5Db
DESCRIPTION:

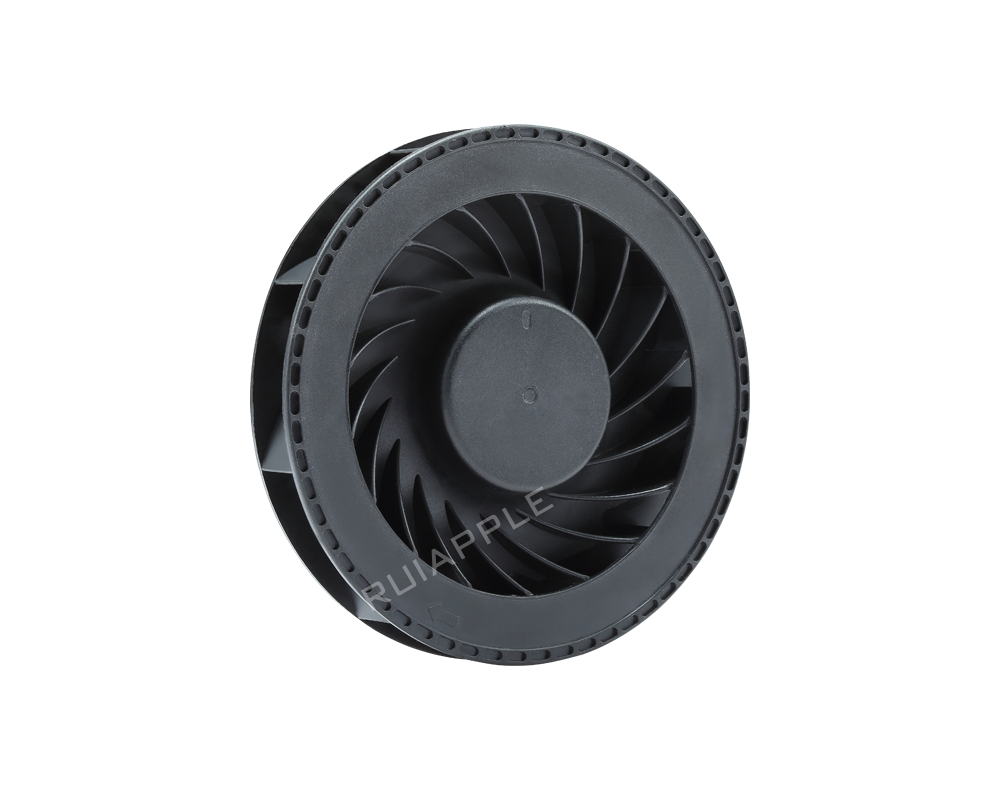

The DCC-10025 DC centrifugal fan features a compact design, making it suitable for various electronic devices requiring efficient cooling. The fan offers 12V and 24V voltage options and operates at high speeds. It utilizes a dual ball bearing design, ensuring long lifespan and reliability across different applications. Commonly used in air purifiers, this fan has been employed in Hyundai's high-end models as an air purifier since 2019, providing excellent PM2.5 filtration performance.

Date Sheet
Detailed Parameters

Model: DCC-10025

Fan Type: Backward-Curved Centrifugal Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: High-Temperature Resistant LPC Engineering Plastic, Flame-Retardant Rated UL-94V0

Base Material: Base frame: Die Cast Aluminum Alloy

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

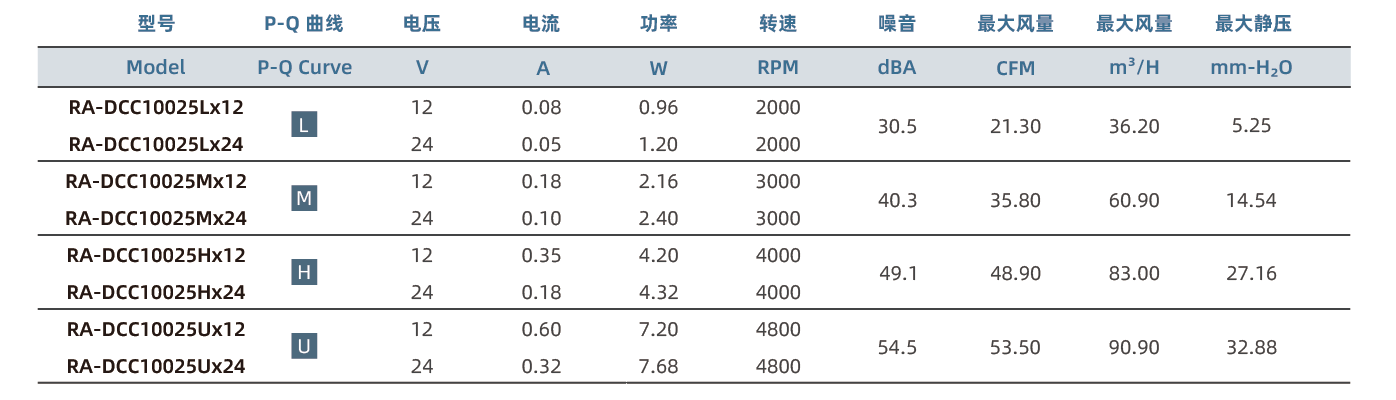

Performance Parameter

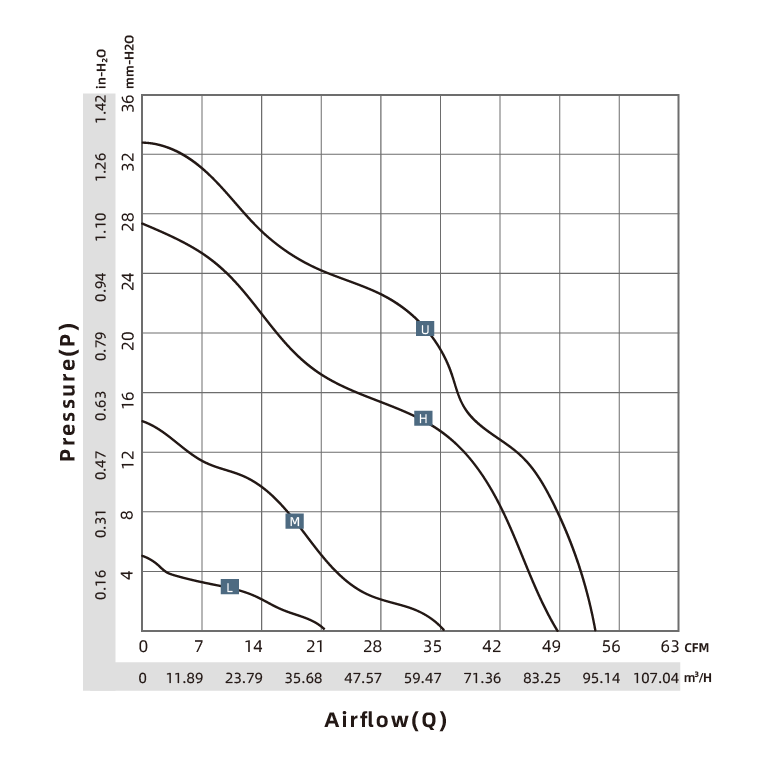

P-Q Curve Chart

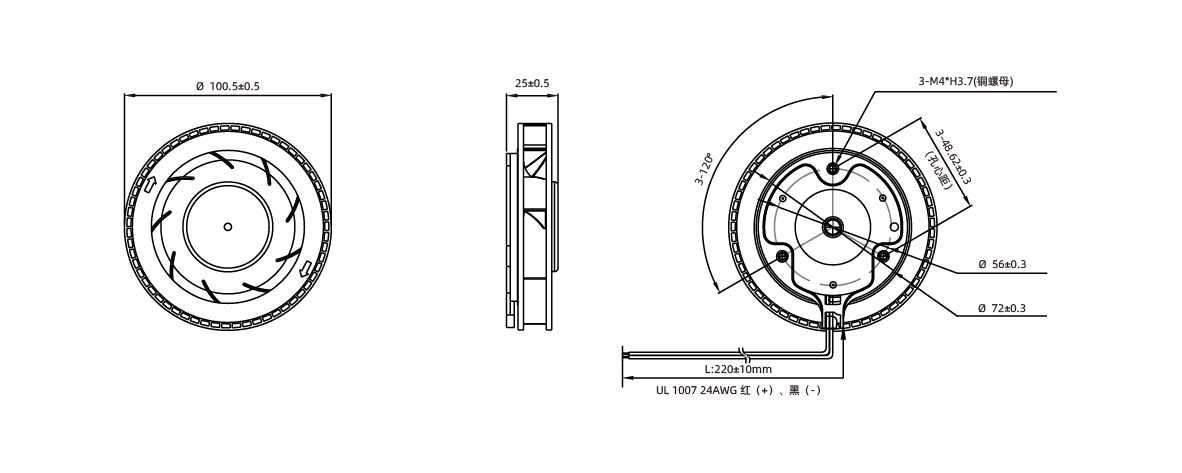

Drawing
