DB-12032 46.7CFM 689.7Pa 36.7dB
DESCRIPTION:

The 120x120mm DC brushless blower fan is suitable for a wide range of industrial and household applications, including air purifiers, printers, and medical equipment. The fan offers voltage options of 12V, 24V, and 48V and operates at speeds ranging from 2500 to 4000 RPM, making it ideal for environments that require efficient heat dissipation while maintaining low noise levels. It is constructed with heat-resistant plastic (compliant with UL 94V-0 standards) and features a dual ball bearing design, ensuring long-lasting performance in various application scenarios.

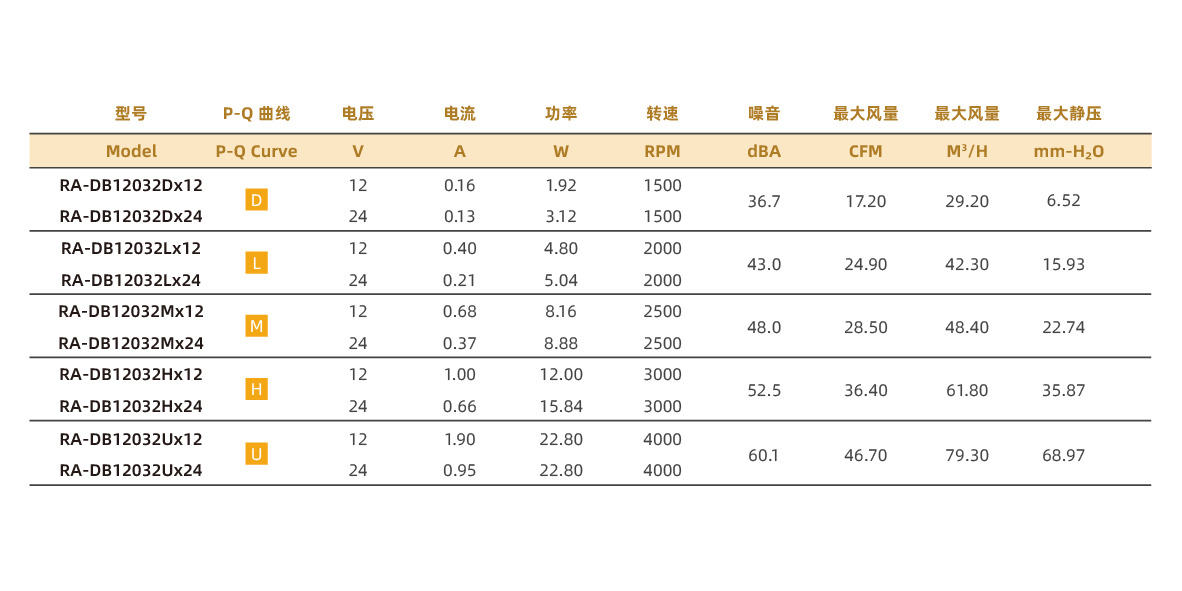

Date Sheet
Detailed Parameters

Model: DB12032

Fan Type: DC Blower

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Frame Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock protection, Soft Start, IP maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 50000 Hours

Performance Parameter

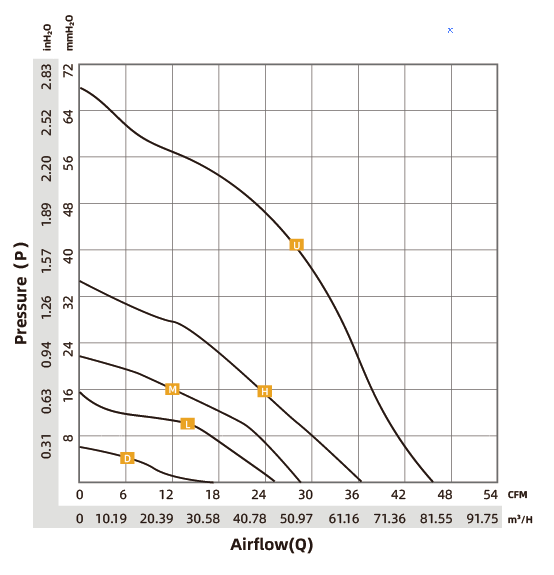

P-Q Curve Chart

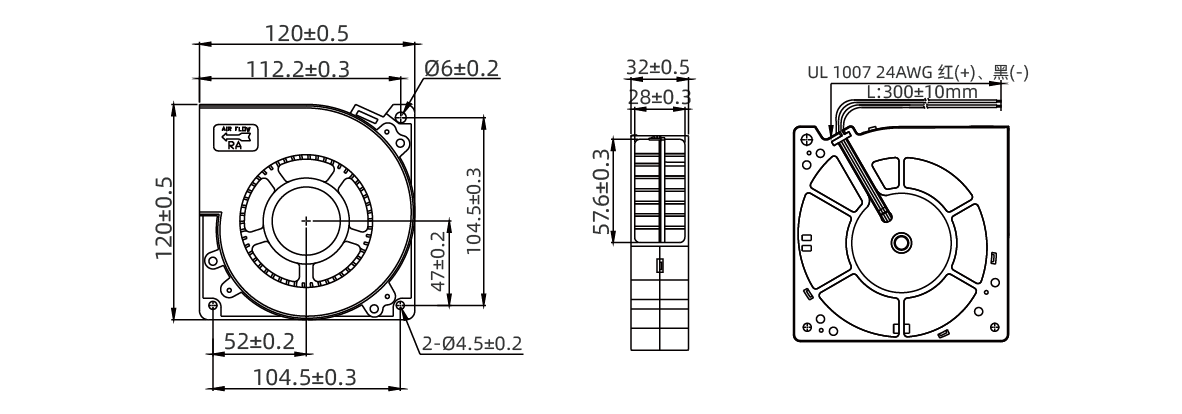

Drawing
