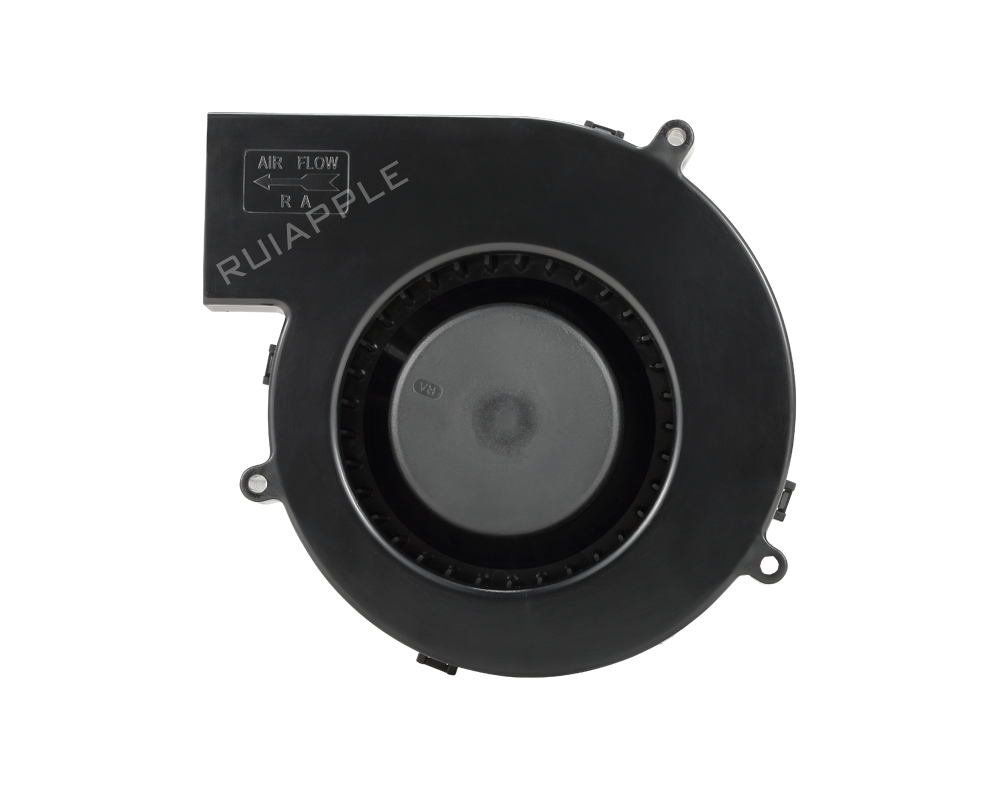

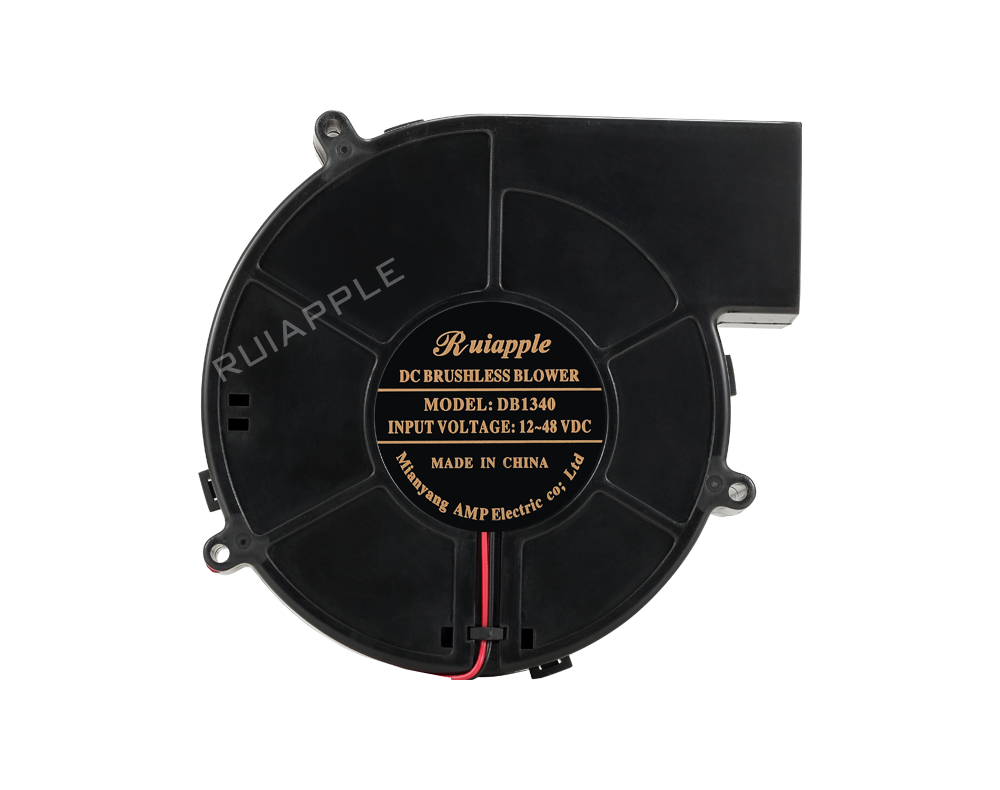

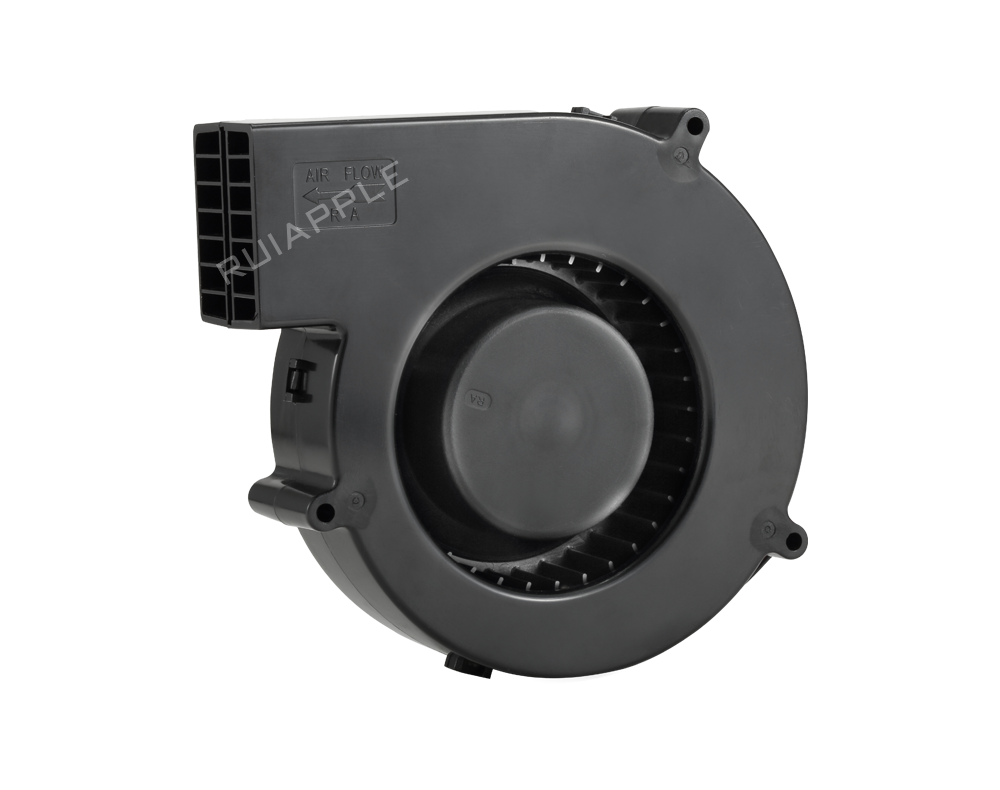

The 130*140mm blower fan is suitable for larger equipment and industrial instruments. The fan offers voltage options of 12V, 24V, and 48V, capable of running at high speeds, with a pure copper core for enhanced stability and reliability. It is ideal for environments requiring efficient cooling where noise is not a primary concern. The fan is constructed with heat-resistant plastic (compliant with UL 94V-0 standards) and features a dual ball bearing design, ensuring long-lasting performance across various applications.
Date Sheet

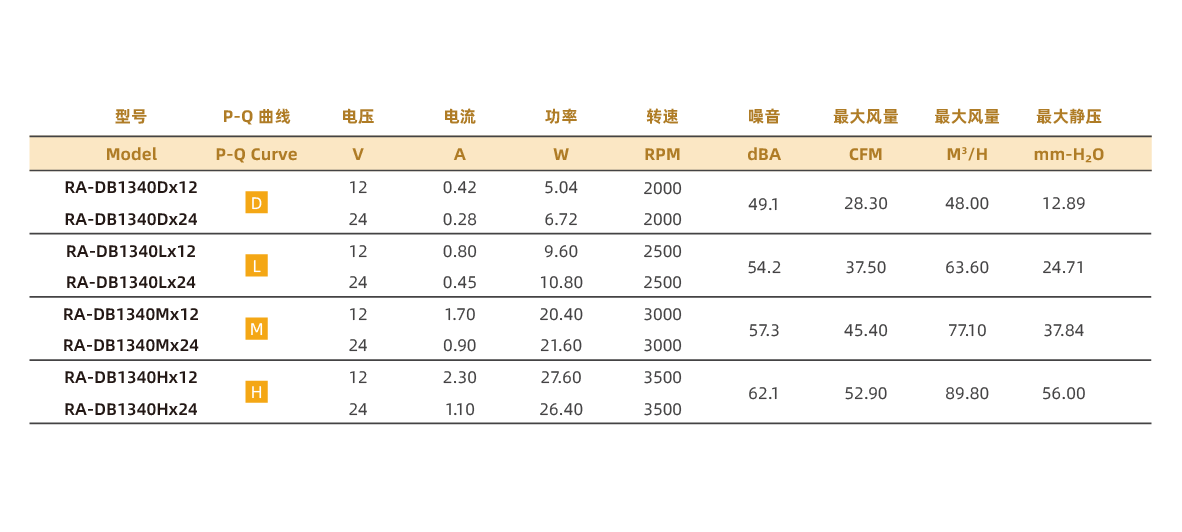

Model: DB1340
Fan Type: DC Blower
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Frame Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock protection, Soft Start, IP maximum IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 50000 Hours
