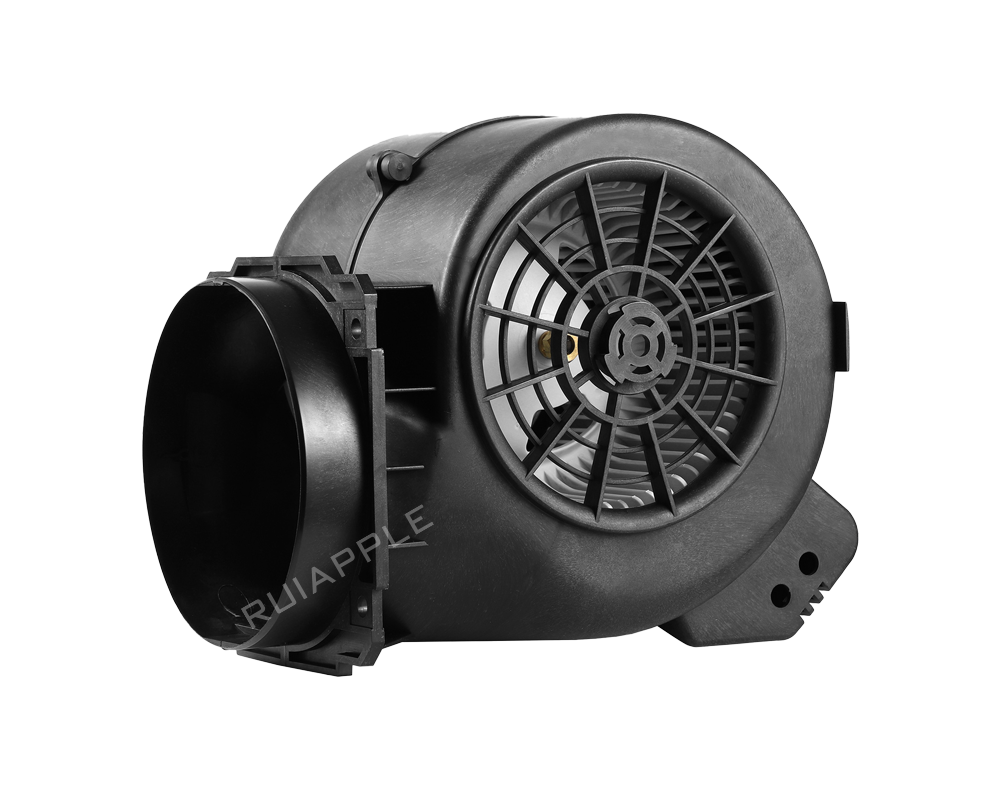

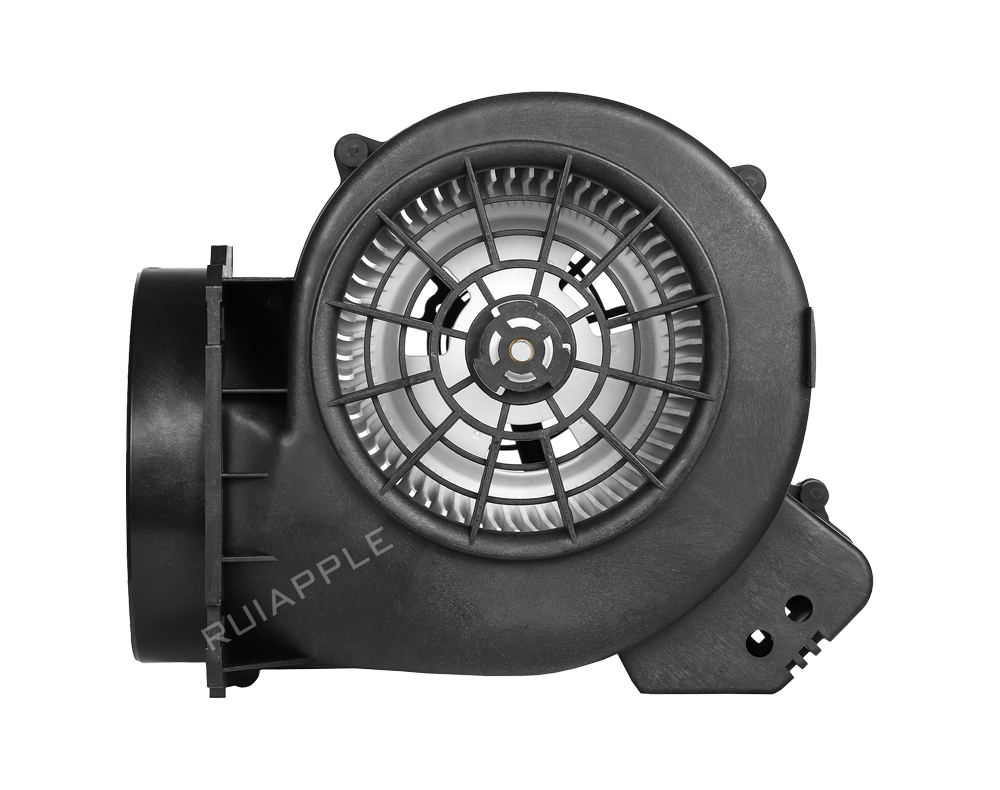

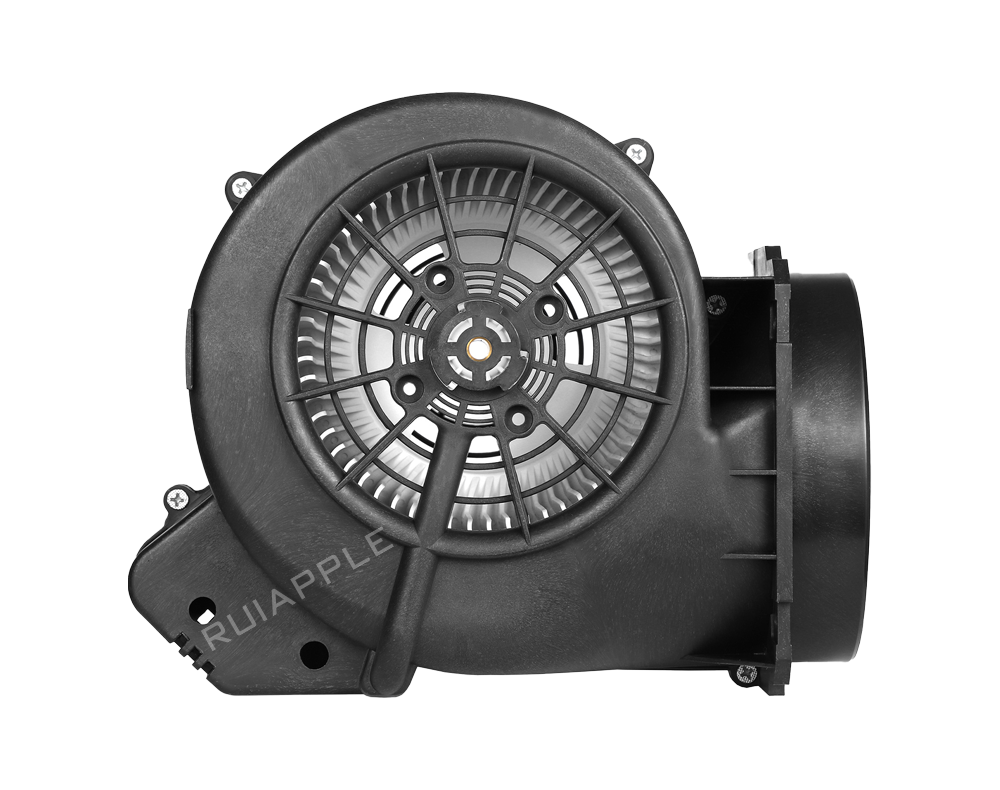

The approximately 155mm DC blower fan is suitable for use in large industrial equipment or ventilation for boats and RVs. The fan offers voltage options of 12V, 24V, and 48V, with customizable power settings available before shipment to meet specific customer needs. It features heat-resistant plastic (compliant with UL 94V-0 standards) and a dual ball bearing design, with the option to add IP67 protection, ensuring long-lasting performance in various application scenarios.
Date Sheet
Model: DB155
Fan Type: DC Blower
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Frame Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, Soft Start, Maximum IP IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 50000 Hours
