DB-3010 1.3CFM 119Pa 20.9dB
DESCRIPTION:

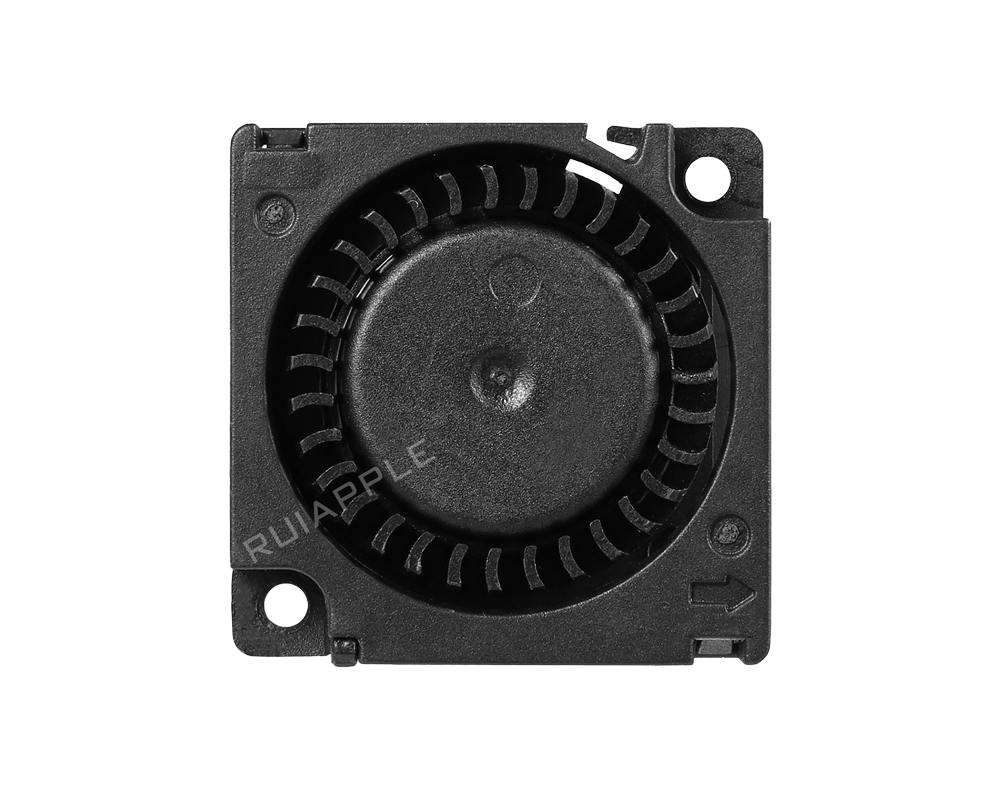

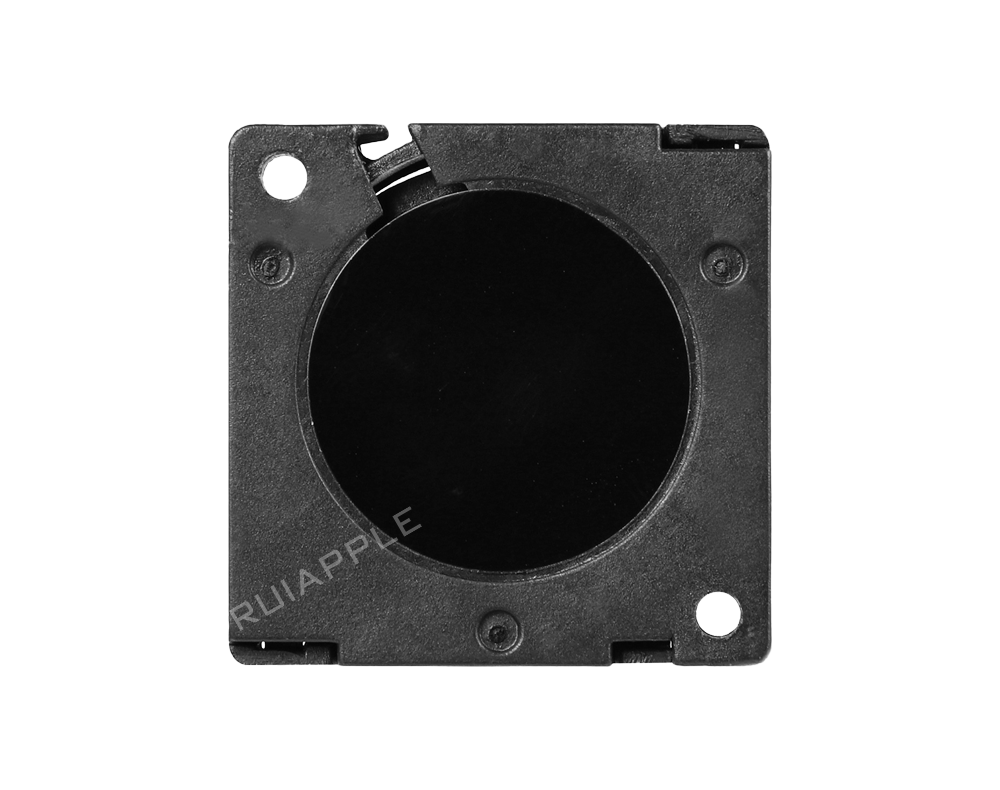

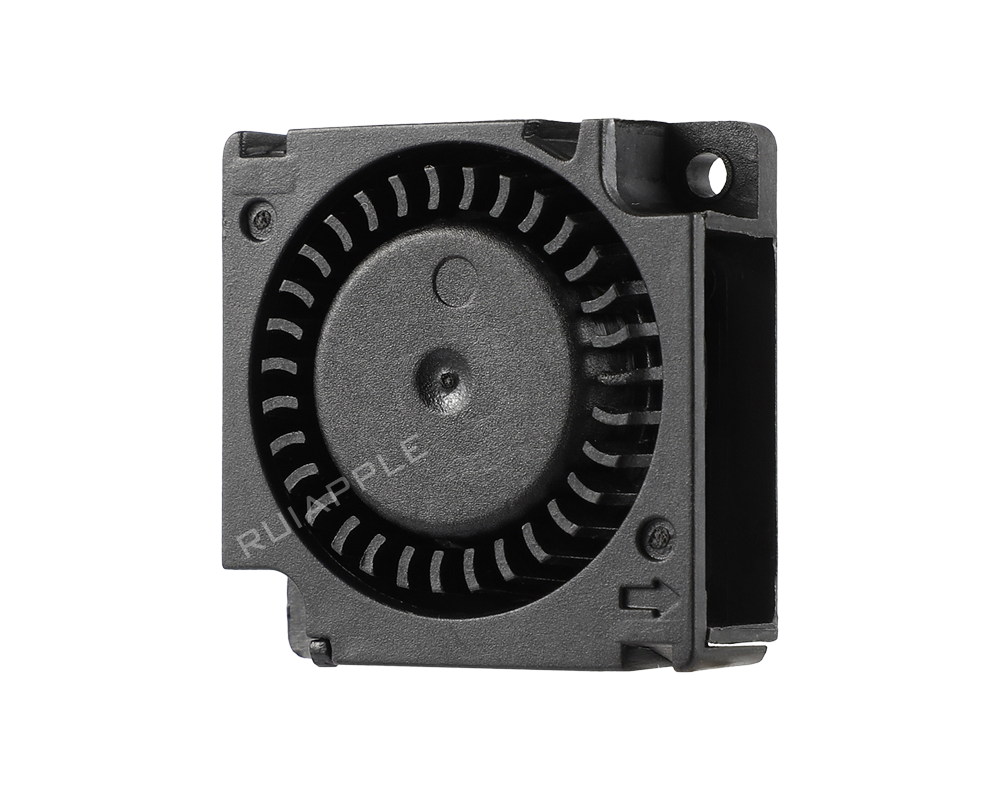

The 30x30x10mm DC brushless blower fan is a compact and efficient cooling solution designed for electronic devices with limited space. It provides high-performance airflow and quiet operation, making it ideal for applications such as 3D printers, computer components, and other small electronic devices. The fan features a long-lasting dual ball bearing system, ensuring reliable operation even under harsh conditions. With a rated voltage of 12V and a maximum speed of over 10,000 RPM, it delivers excellent cooling efficiency while maintaining minimal noise, making it the perfect choice for keeping equipment at optimal temperatures.

Date Sheet
Detailed Parameters

Model: DB3010

Fan Type: DC Blower

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Frame Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, Soft Start, IP maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 50000 Hours

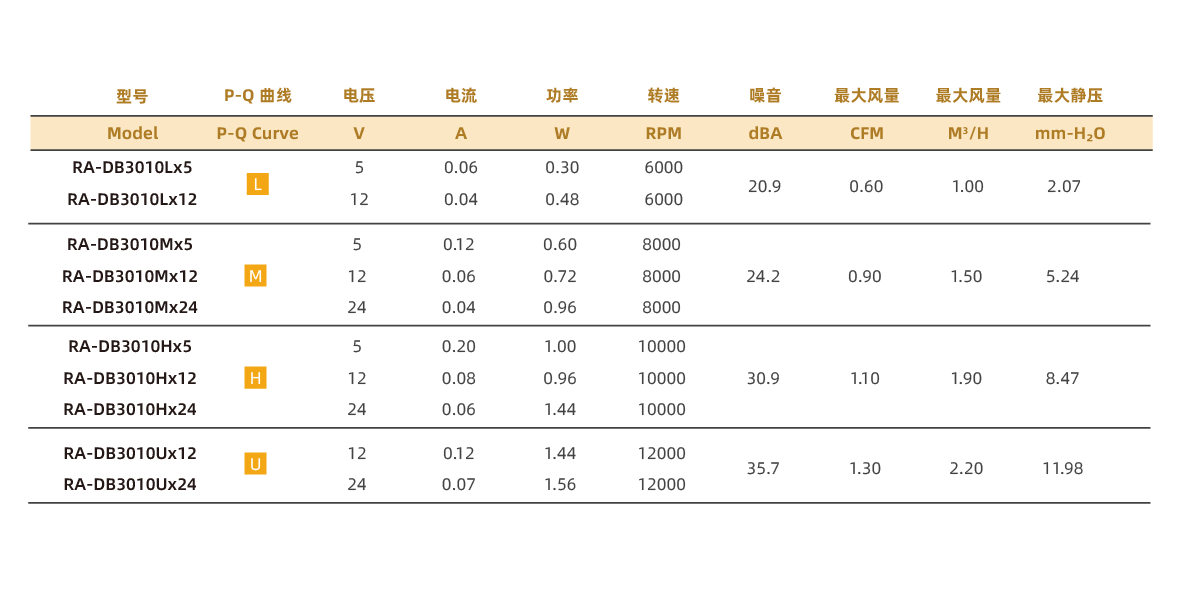

Performance Parameter

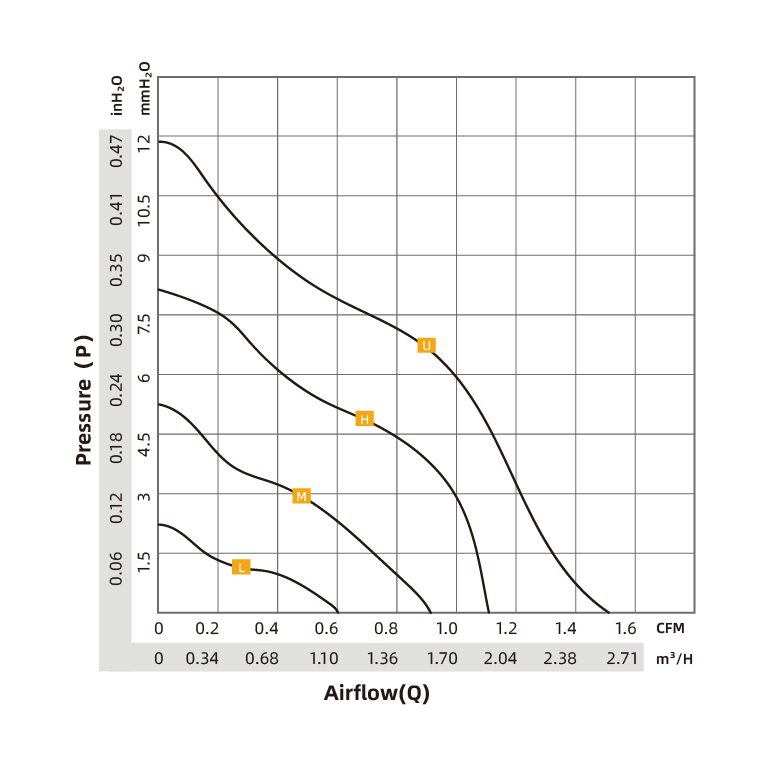

P-Q Curve Chart

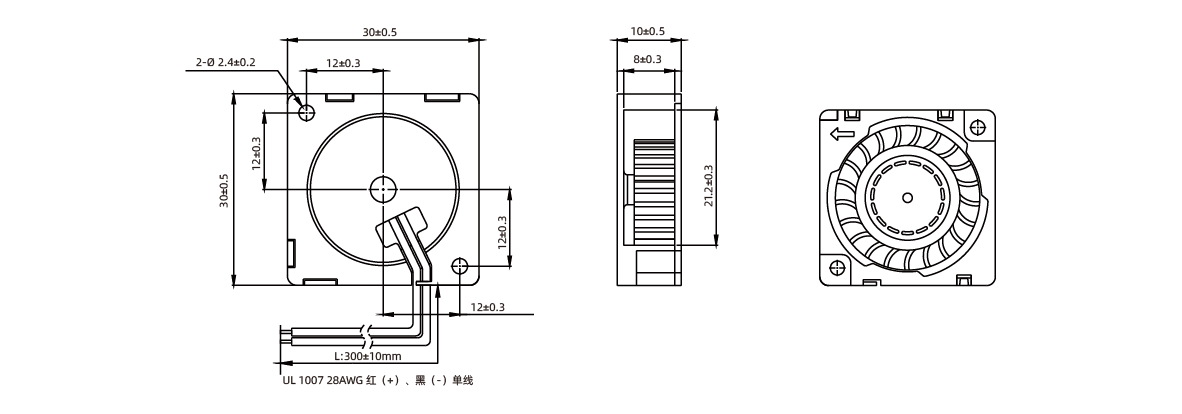

Drawing
