DB-4010 2.4CFM 136.8Pa 27.4dB
DESCRIPTION:

The 40x40mm DC brushless blower fan is a high-efficiency, compact cooling solution, ideal for meeting the cooling needs of electronic devices. The fan features a high-quality plastic frame and blades with heat-resistant and flame-retardant properties, ensuring stable operation in harsh environments. This model offers multiple voltage options (5V, 12V) and can reach a maximum speed of 9000 RPM, delivering strong airflow for effective heat dissipation. Additionally, the fan is designed for low noise, making it suitable for noise-sensitive applications.

Date Sheet
Detailed Parameters

Model: DB4010

Fan Type: DC Blower

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Frame Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock protection, Soft Start, IP maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 50000 Hours

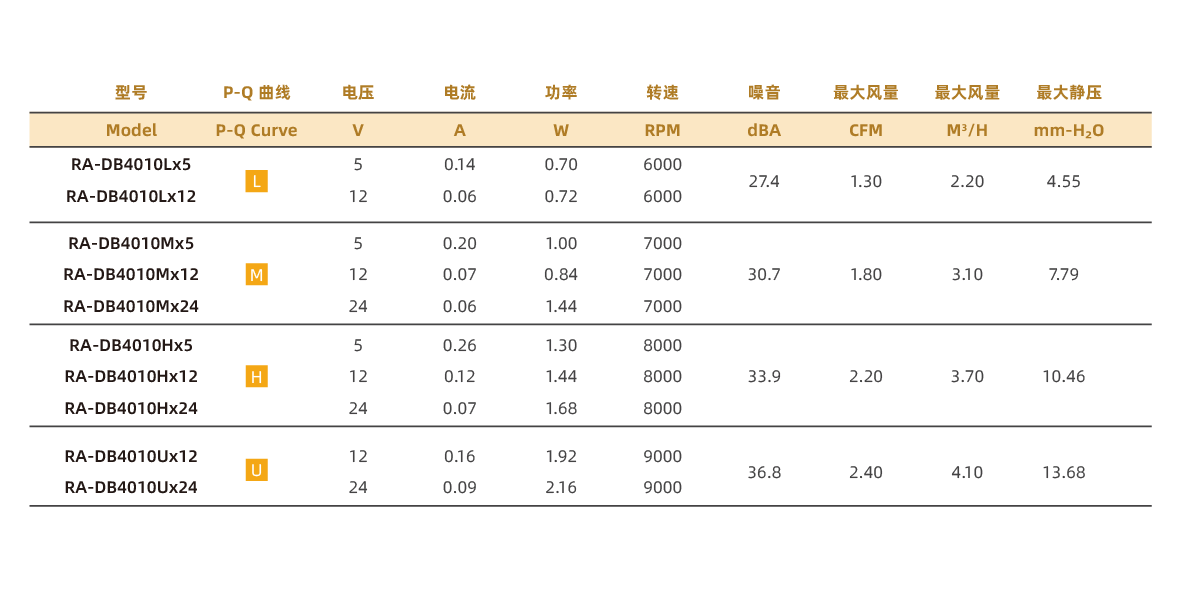

Performance Parameter

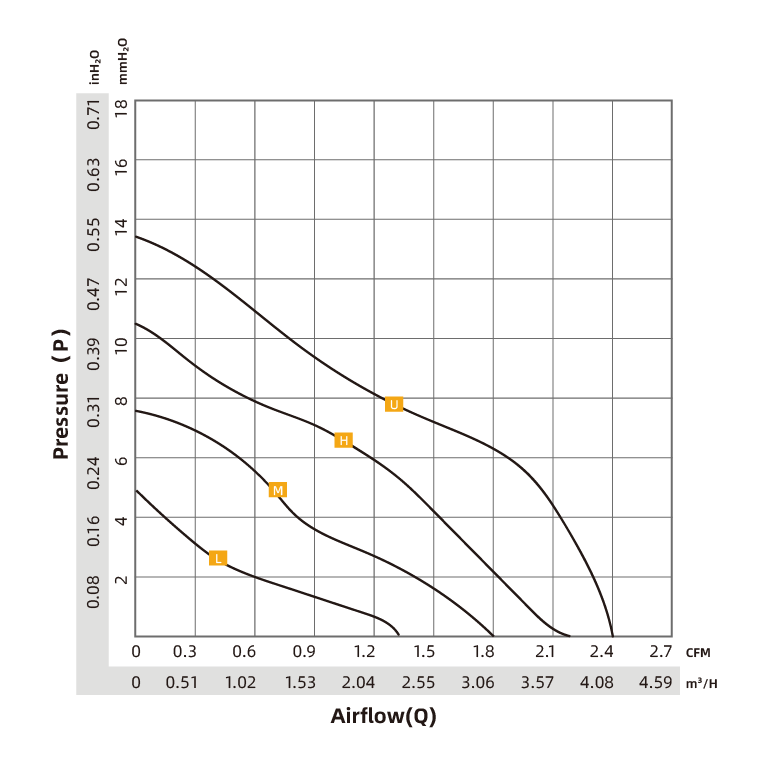

P-Q Curve Chart

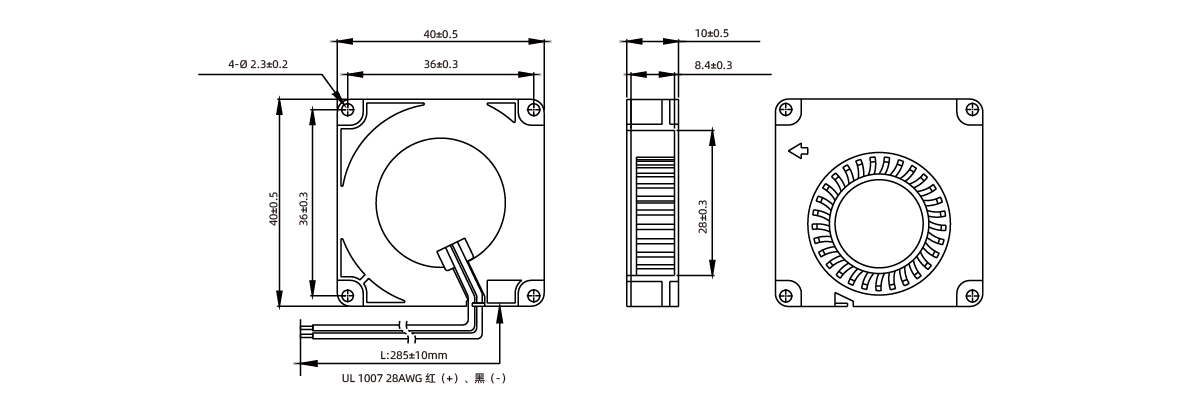

Drawing
