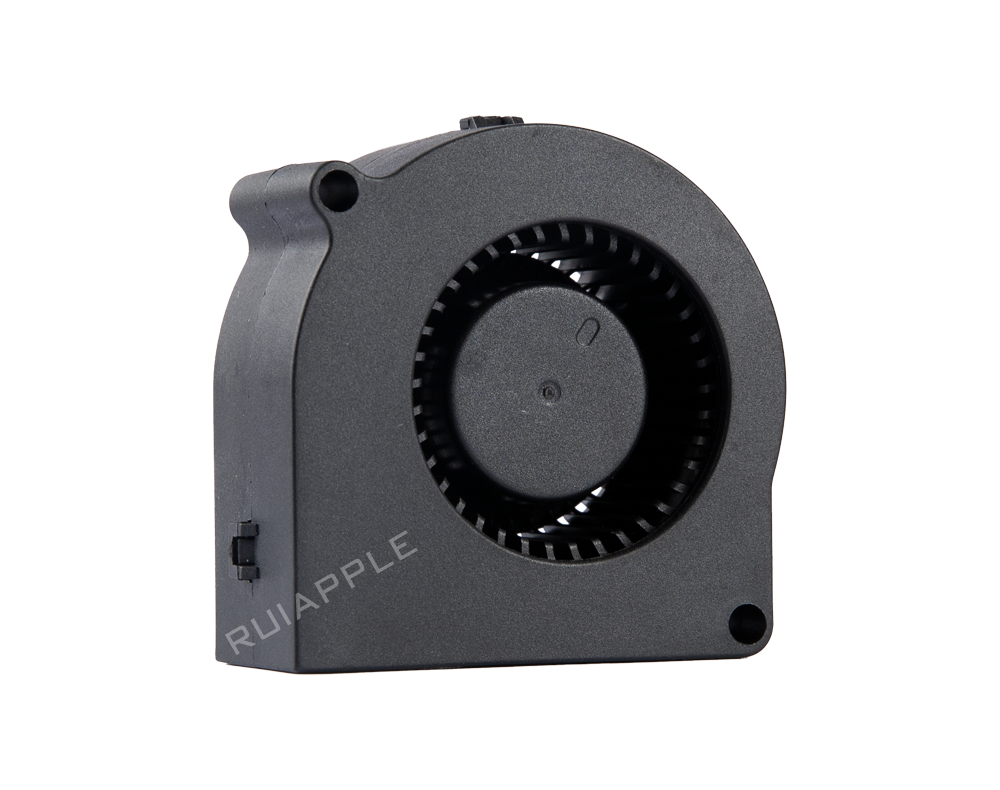

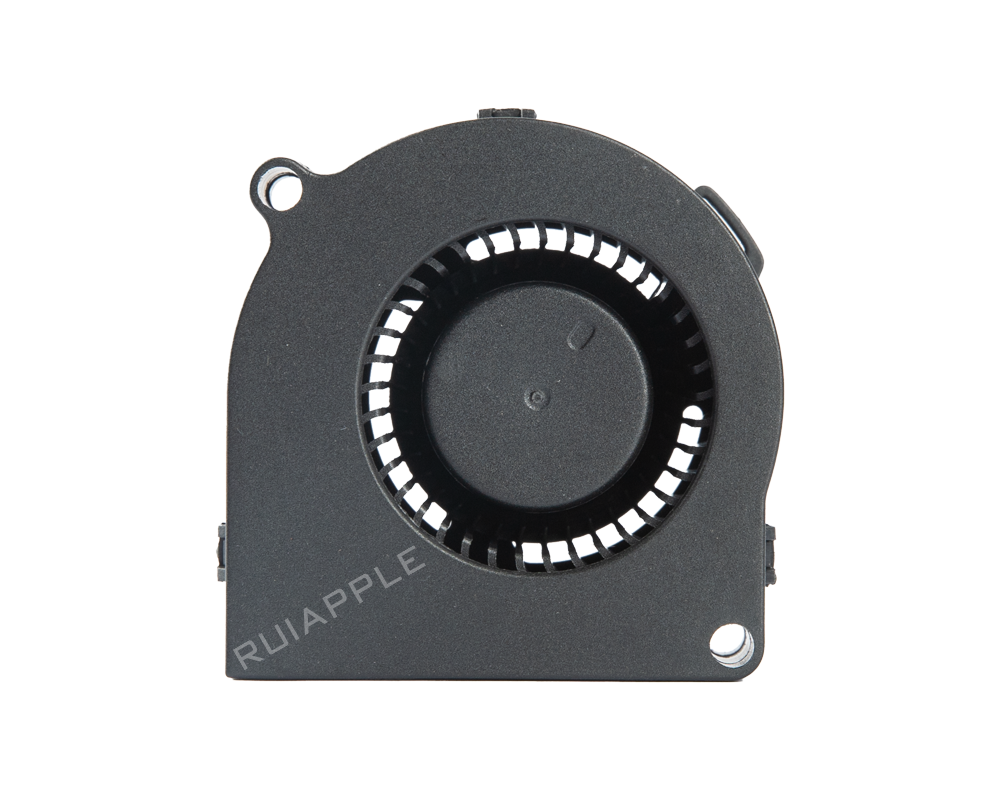

DB-6028 13.8CFM 324.6Pa 25.4dB
DESCRIPTION:

The 60x60mm DC brushless blower fan is designed for medium-sized electronic devices requiring efficient heat dissipation. The fan offers multiple voltage options, including 5V, 12V, and 24V, to meet various application needs. Its compact design delivers strong airflow in limited spaces, and the low-noise operation makes it ideal for applications requiring a quiet environment. Additionally, the fan features a durable structure with a long lifespan, making it suitable for both household and industrial equipment.

Date Sheet
Detailed Parameters

Model: DB6028

Fan Type: DC Blower

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Frame Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock protection, Soft Start, IP maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Humidity Range: -10℃/+60℃

Maximum of Life Expectancy: 50000 Hours

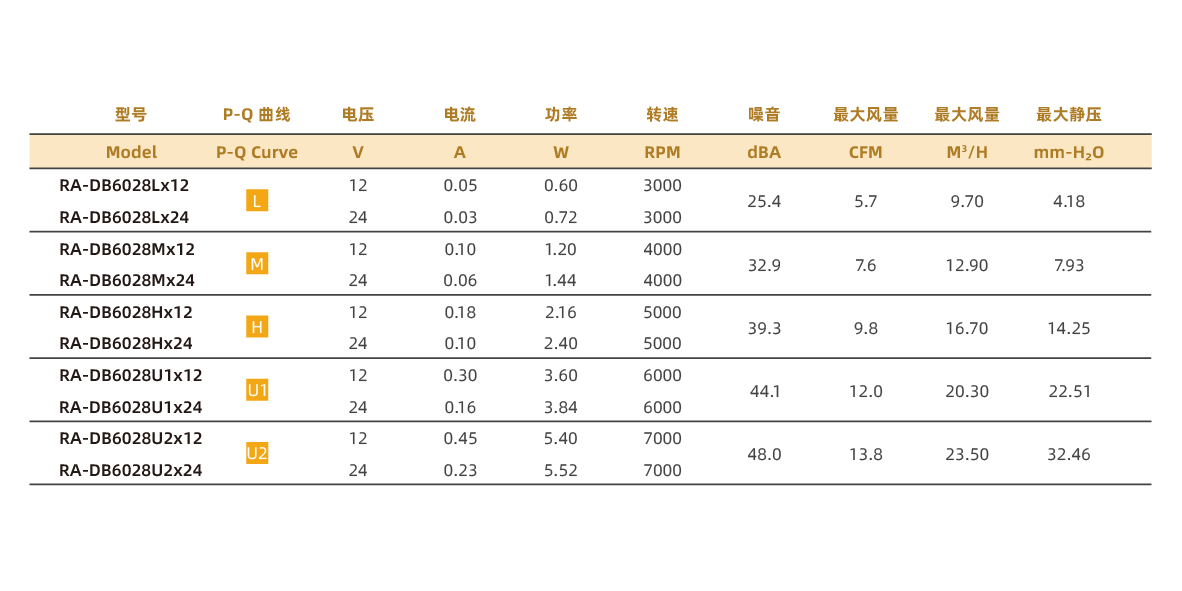

Performance Parameter

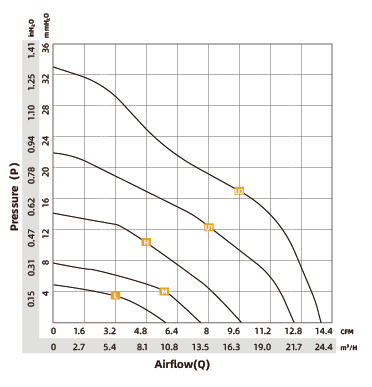

P-Q Curve Chart

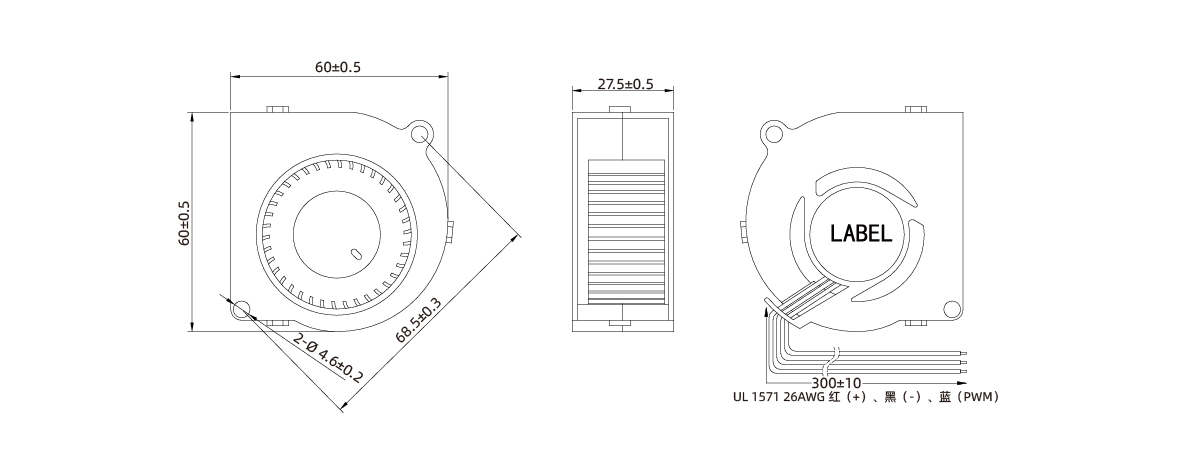

Drawing
