DB-7530 15.2CFM 322.8Pa 29.4dB
DESCRIPTION:

The 70x70mm DC brushless blower fan is suitable for various electronic devices that require efficient heat dissipation. The fan offers multiple voltage options, including 5V, 12V, and 24V, to meet different application needs. Its compact design delivers strong airflow in confined spaces, and the low-noise operation makes it ideal for applications requiring a quiet environment. The fan also features a durable structure and long lifespan, making it suitable for both household and industrial equipment.

Date Sheet
Detailed Parameters

Model: DB7530

Fan Type: DC Blower

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Frame Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, Soft Start, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 50000 Hours

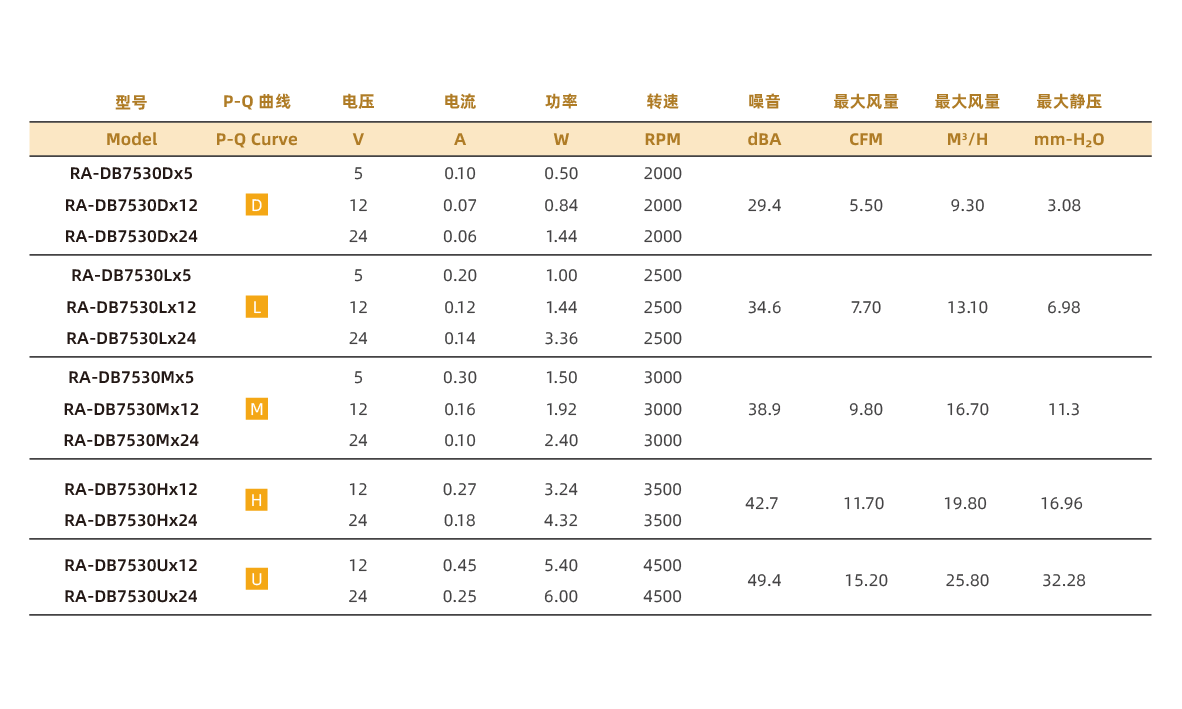

Performance Parameter

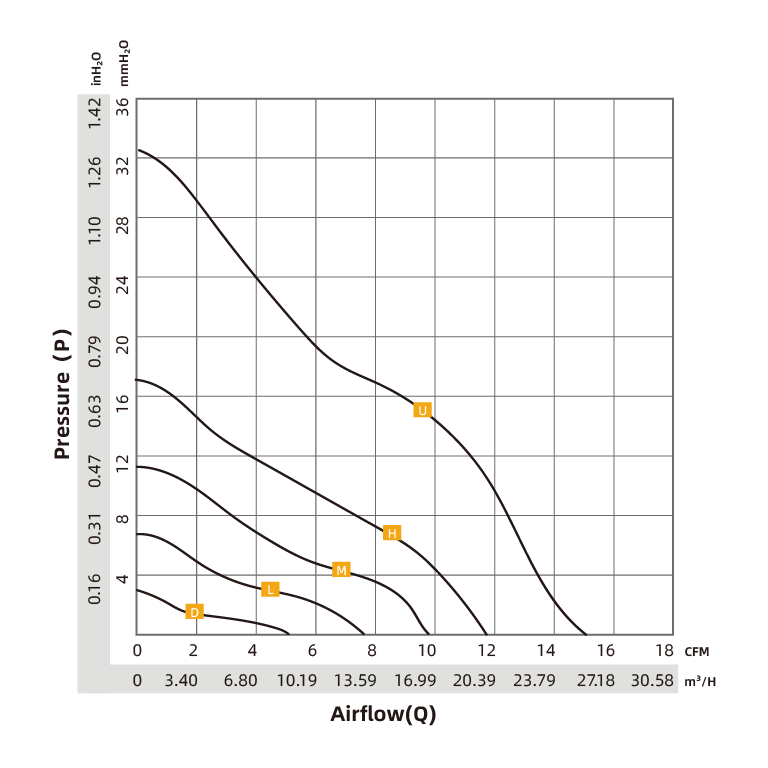

P-Q Curve Chart

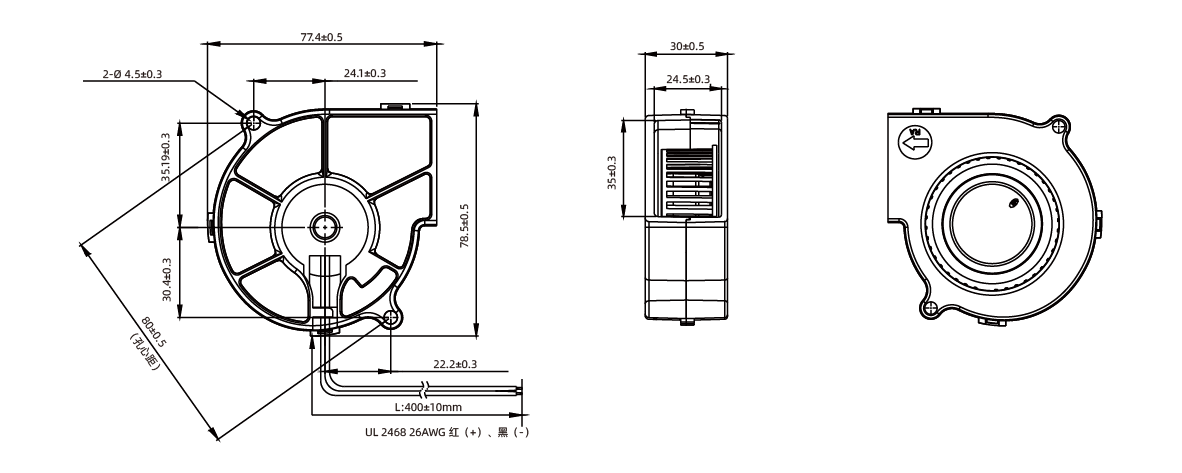

Drawing
