The 80x80mm brushless DC blower fan is ideal for small and medium electronic devices that require efficient cooling. The fan offers voltage options of 12V, 24V, and 48V, and operates within a speed range of 2000 to 4500 RPM, with a maximum airflow of up to 23 CFM. Made from high-quality thermoplastic material (compliant with UL 94V-0 standards), it ensures safety and durability in various environments. The fan features effective noise control, making it suitable for applications that require quiet operation, such as air purifiers and computer cooling systems.

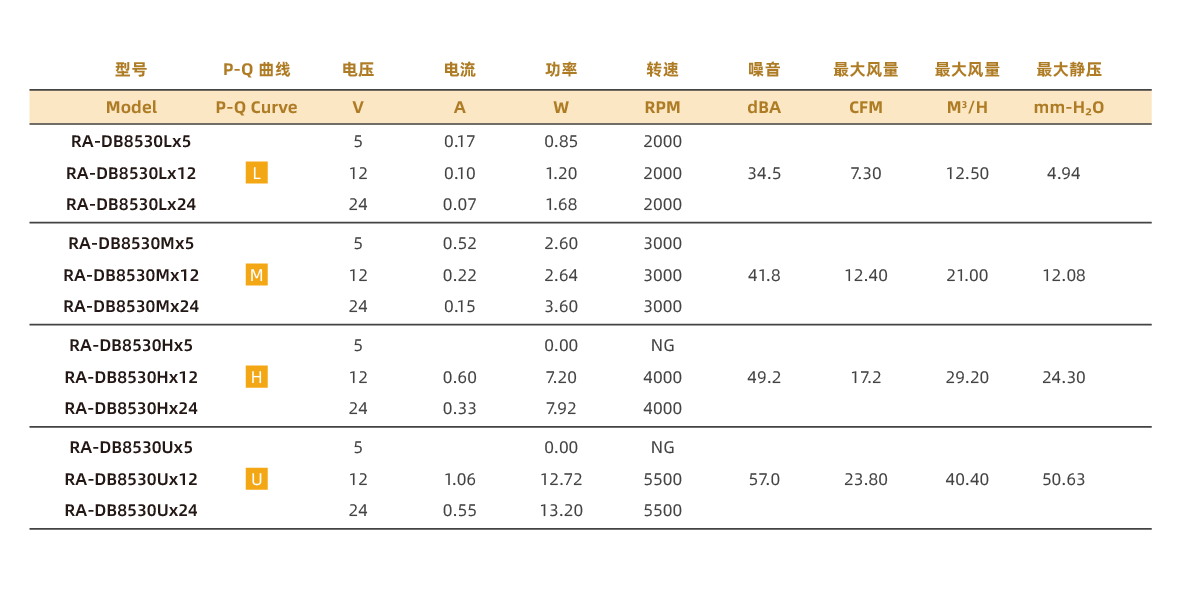

Date Sheet
Model: DB8530
Fan Type: DC Blower
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Frame Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, Soft Start, Maximum IP IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 50000 Hours
