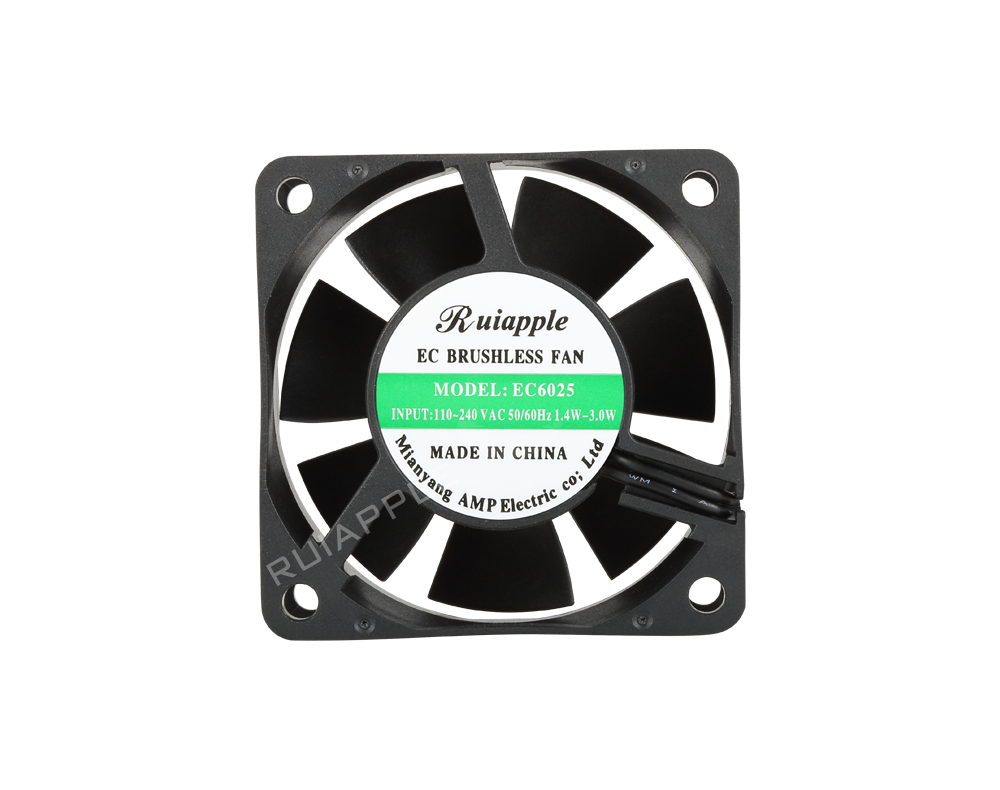

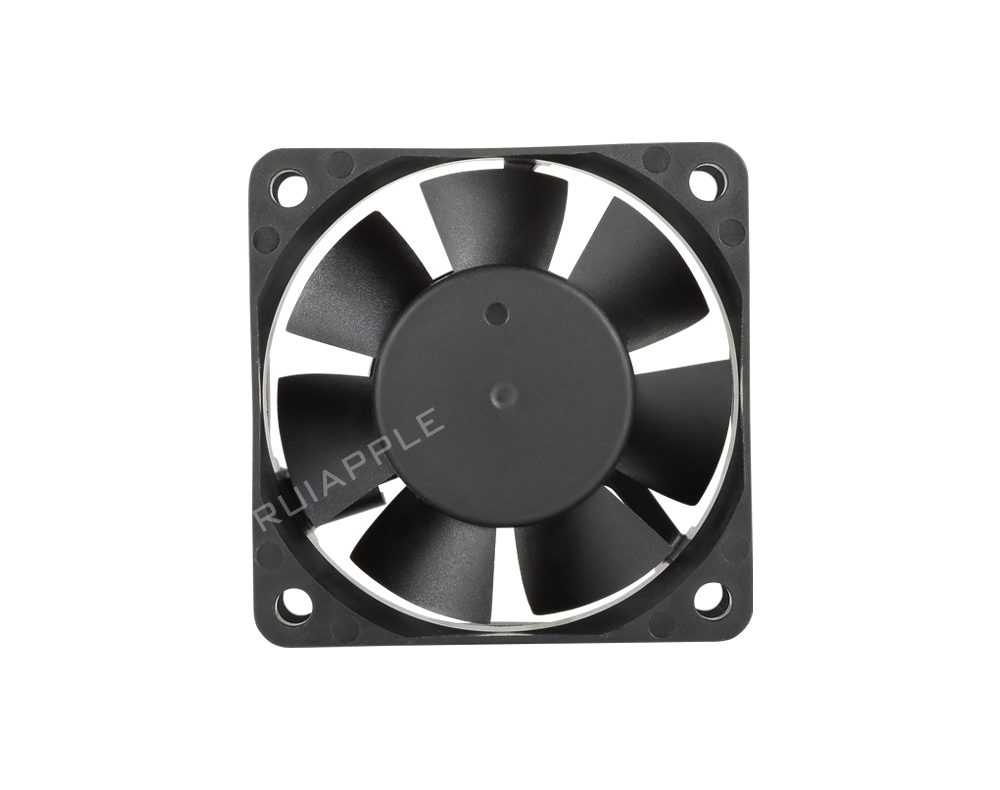

The 60x60x25mm EC axial fan adopts advanced electronic commutation technology, providing an efficient and energy-saving cooling solution. It compensates for the inability of AC fans to achieve higher rotational speeds. The fan is suitable for computer hard drives, industrial control cabinets, and other equipment requiring efficient cooling. It uses long-life double ball bearings, ensuring smooth operation and low noise, making it ideal for continuous long-term use. The fan features a wide voltage range (110V to 240V AC), making it suitable for various application scenarios.
Date Sheet
Model: EC6025
Fan Type: Axial Fan
Motor: AC to DC Motor
Power Supply: 110-220VAC 50/60HZ
Bearing Type: Ball/Oil/Sleeve, Optional
Insulation Class: Class B
Motor Type: RUIAPPLE Brushless (BLDC)
Insulation Resistance: 10M/500VDC
Voltage Strength: 2 Minutes /500AVC - 5mA
Humidity Range: RH20% - RH75%
Storage Temperature: -20°C ～+75°C
Operating Temperature: -10°C～+70°C
Maximum of Life Expectancy: 50000 Hours
