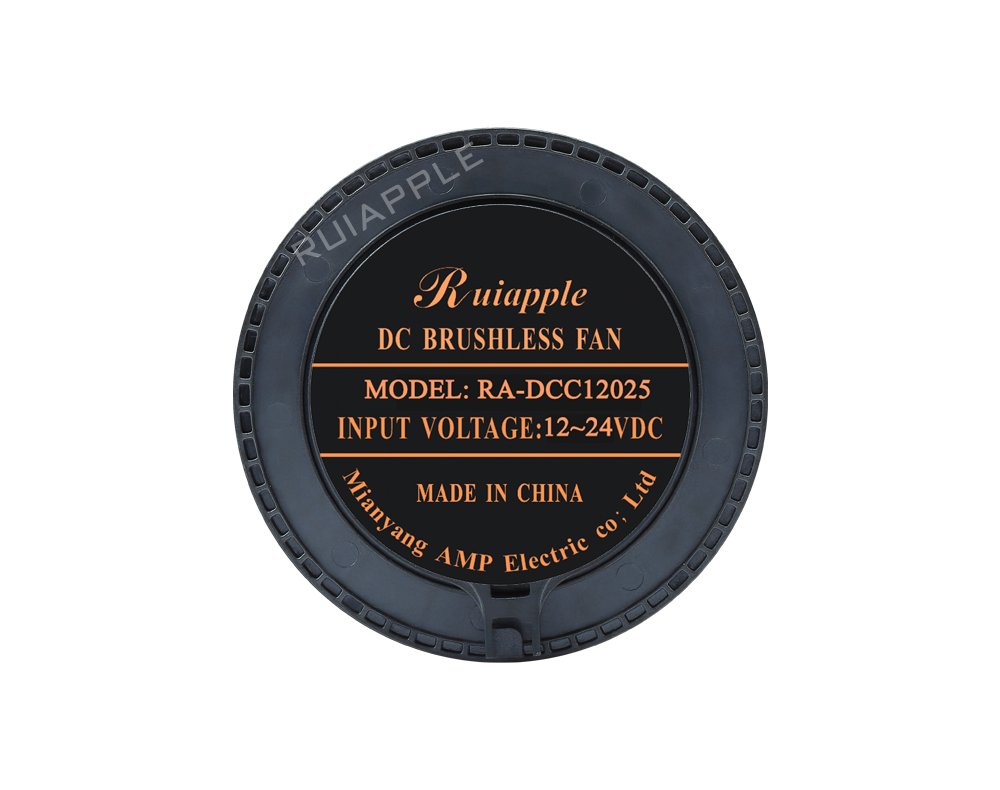

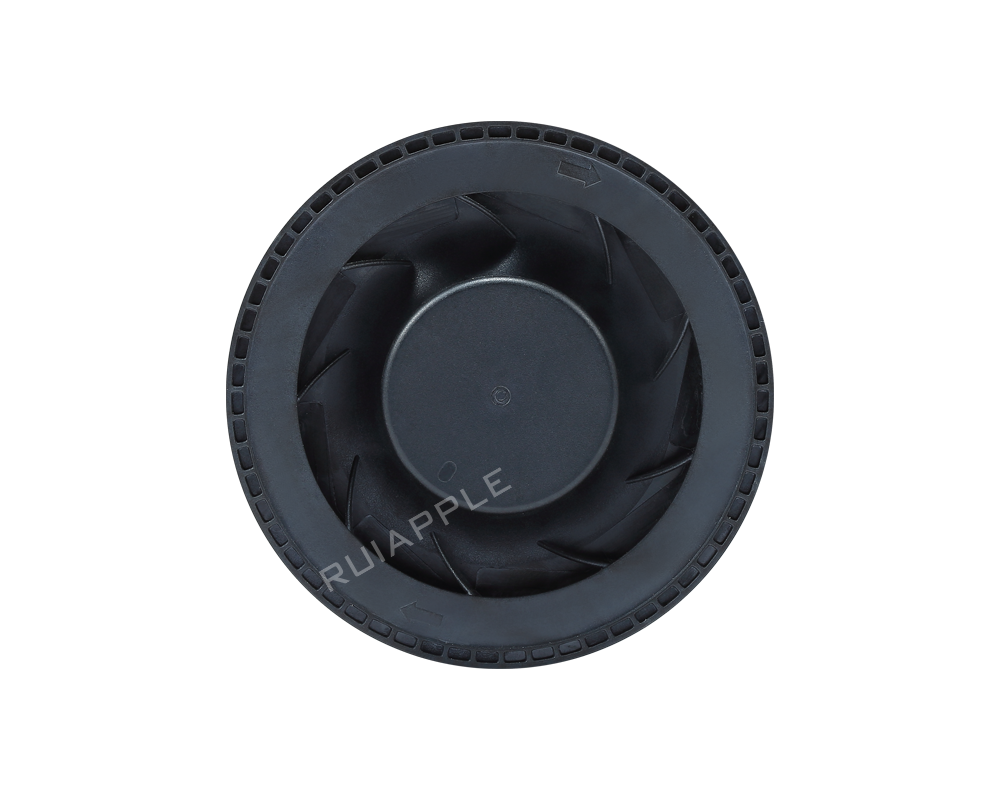

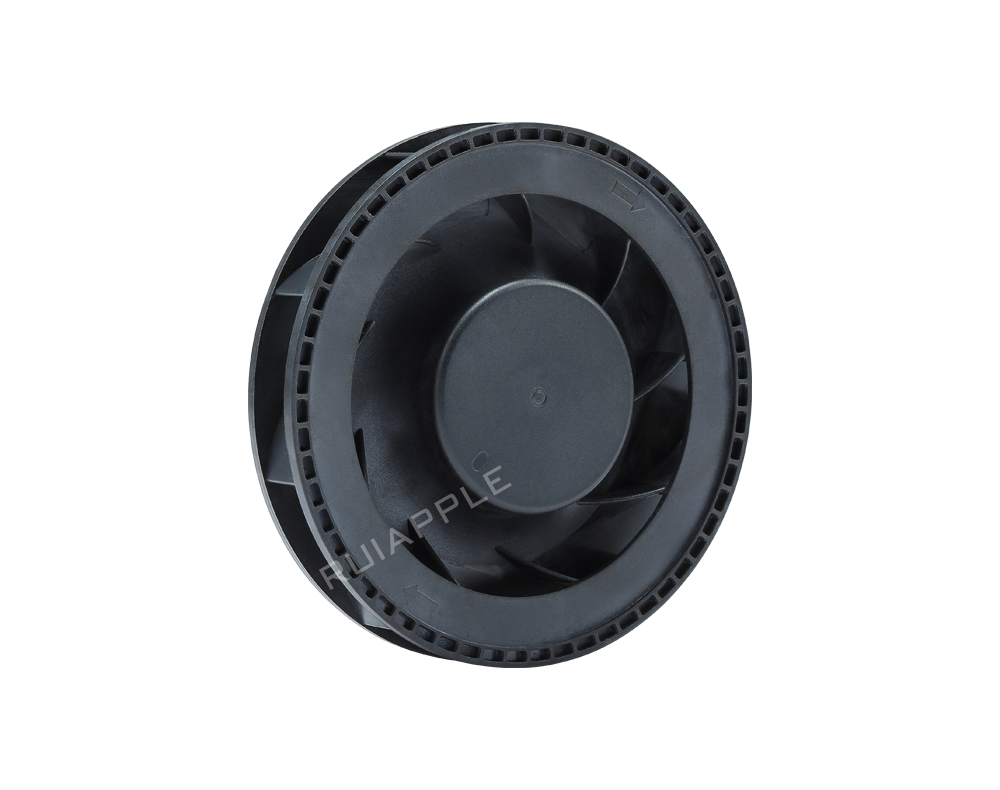

DCC-12025 75.8CFM 266.3Pa 40.8Db
DESCRIPTION:

The DCC-12025 DC centrifugal fan features a compact design, making it suitable for a variety of electronic devices that require efficient cooling. The fan offers 12V and 24V voltage options and operates at high speeds. It uses a dual ball bearing design to ensure long lifespan and reliability across various applications. Commonly used in air purifiers, since 2019, it has been utilized as an air purifier in high-end Hyundai models in South Korea, delivering excellent PM2.5 filtration performance.

Date Sheet
Detailed Parameters

Model: DCC-12025

Fan Type: Backward-Curved Centrifugal Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: High-Temperature Resistant LPC Engineering Plastic, Flame-Retardant Rated UL-94V0

Base Material: Base frame: Die Cast Aluminum Alloy

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

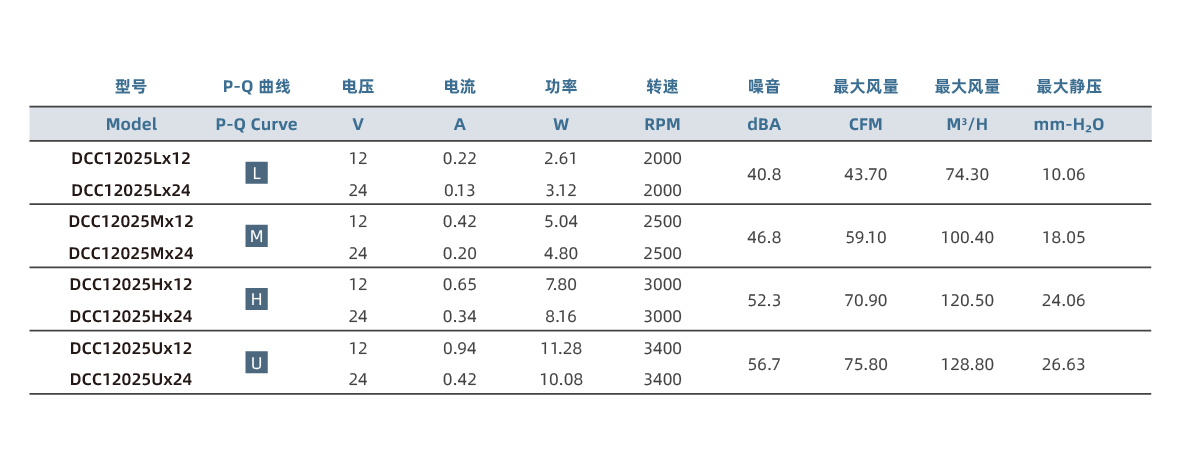

Performance Parameter

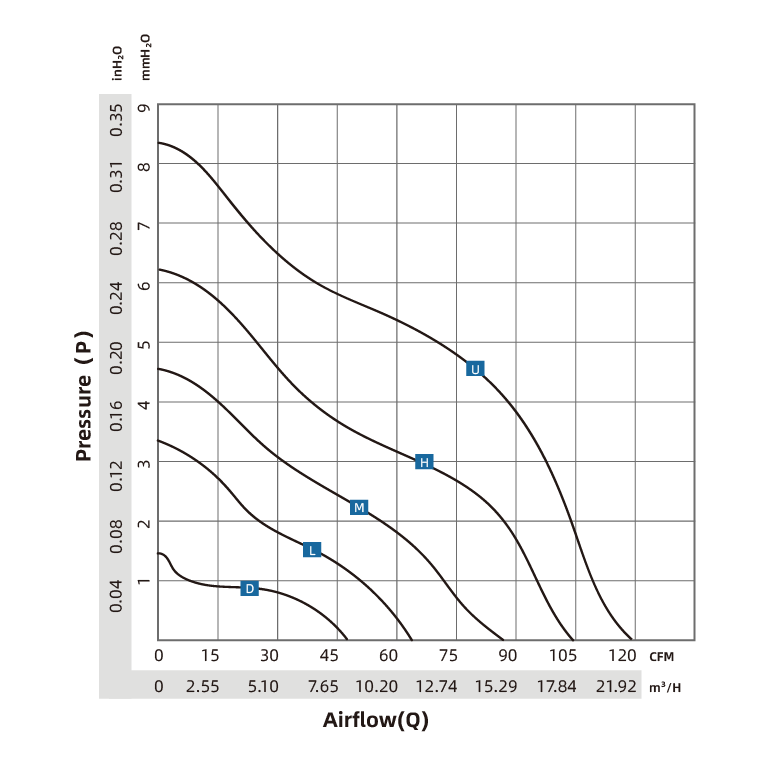

P-Q Curve Chart

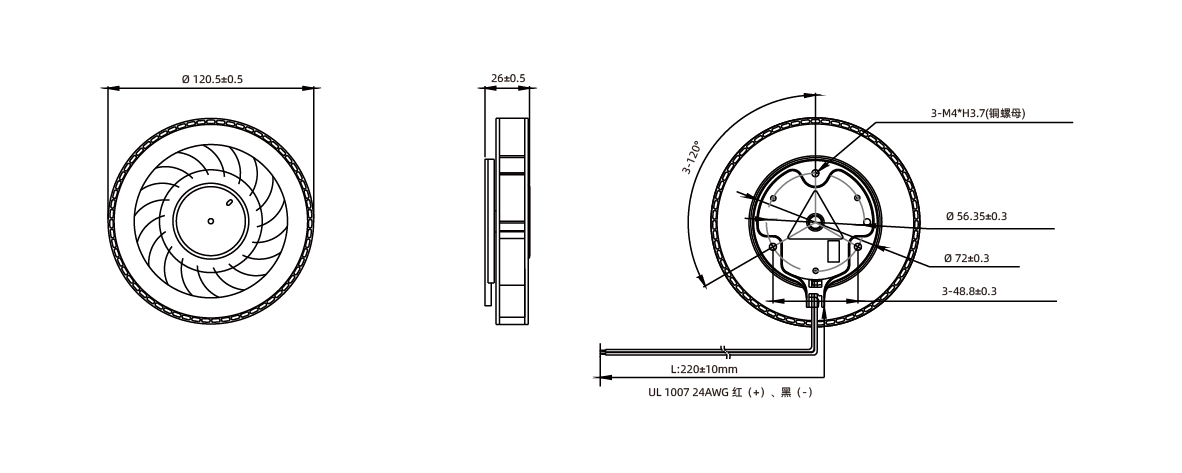

Drawing
