DB-4015 2.6CFM 187.5Pa 34dB
DESCRIPTION:

The 40x40mm DC brushless blower fan is a high-efficiency, compact cooling solution, ideal for electronic devices that require effective heat dissipation. The fan is constructed with high-quality plastic for the frame and blades, offering heat resistance and flame-retardant properties to ensure stable operation in harsh environments. This model provides multiple voltage options (5V, 12V) and can reach a maximum speed of 9000 RPM, delivering powerful airflow for efficient cooling. Additionally, its low-noise design makes it perfect for noise-sensitive applications.

Date Sheet
Detailed Parameters

Model: DB4015

Fan Type: DC Blower Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Frame Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock protection, Soft Start, IP maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 50000 Hours

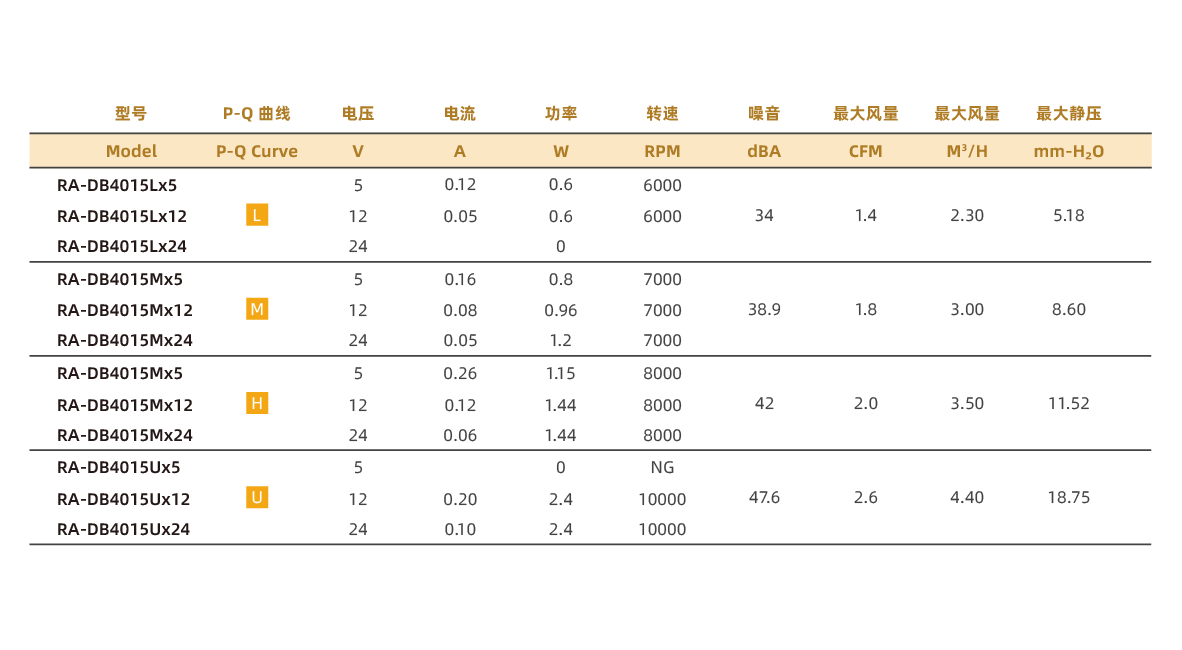

Performance Parameter

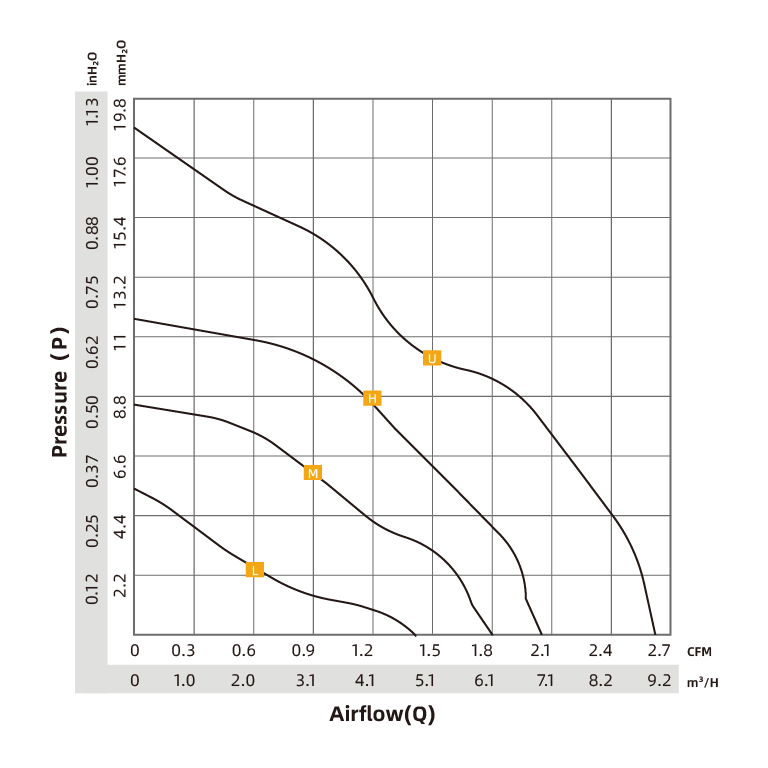

P-Q Curve Chart

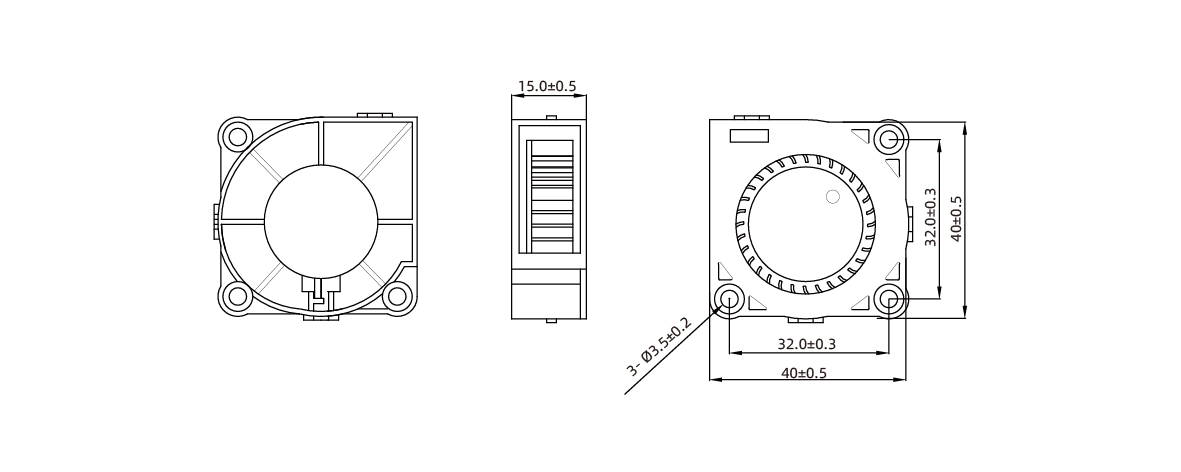

Drawing
