The 50x50mm DC brushless blower fan features a compact design, making it suitable for various electronic devices that require strong airflow. The fan is highly efficient, capable of delivering up to 5 CFM of airflow at speeds of up to 7000 RPM, ensuring optimal cooling performance even under high loads. With a noise level as low as 32 dB(A), it is ideal for environments where noise control is important. The fan is made from heat-resistant plastic compliant with UL 94V-0 standards, offering excellent flame resistance, ensuring safety and reliability during long-term use.
Date Sheet

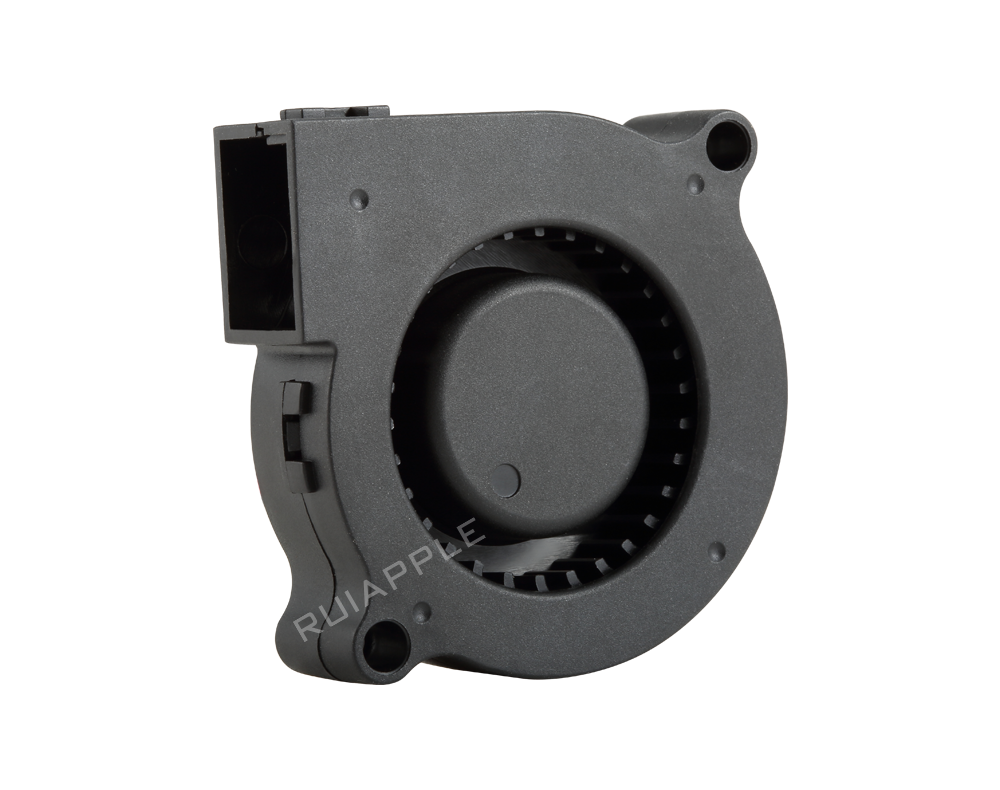

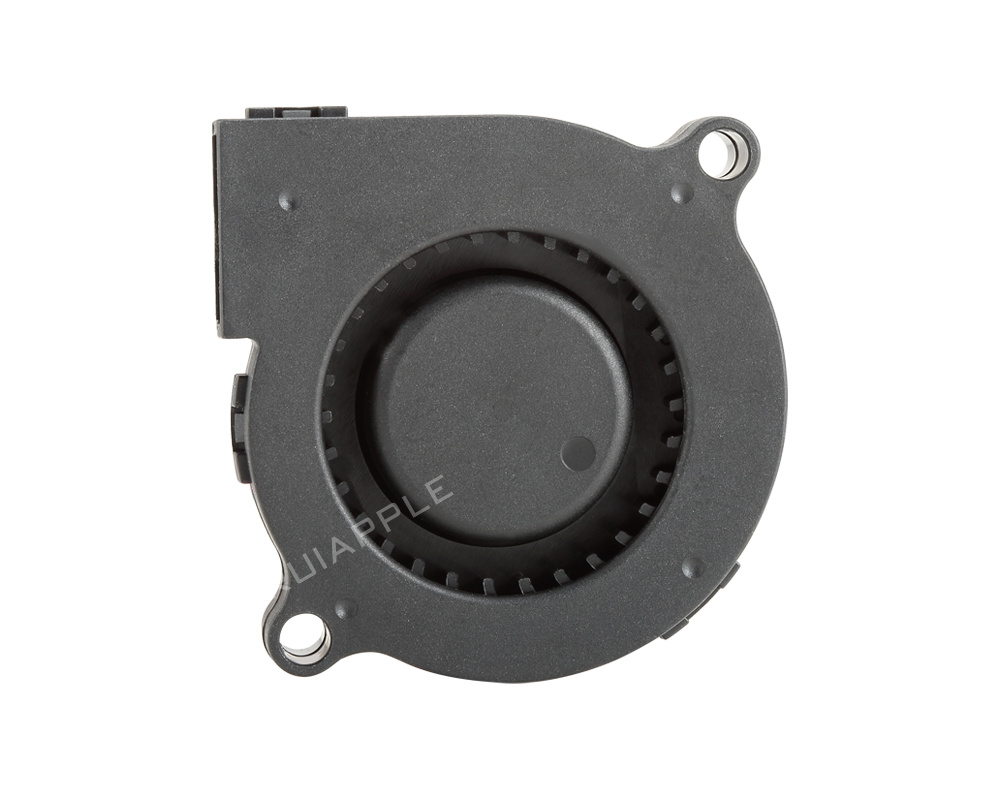

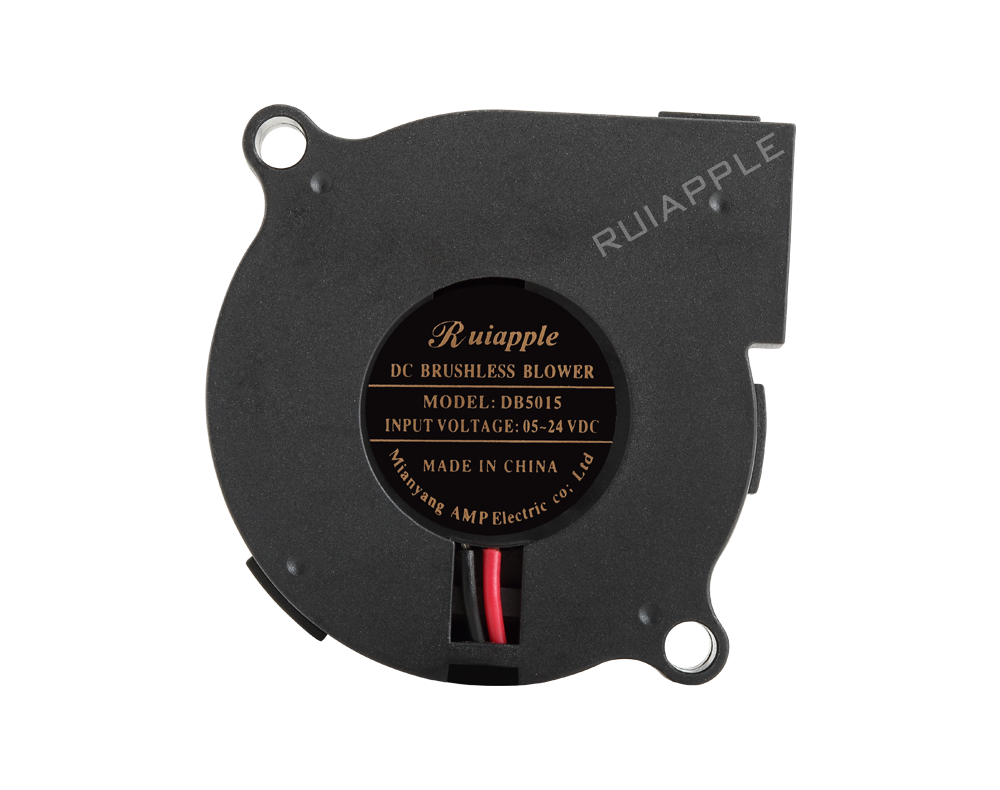

Model: DB5015A
Fan Type: DC Blower
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Frame Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock protection, soft start, IP maximum IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 50000 Hours
