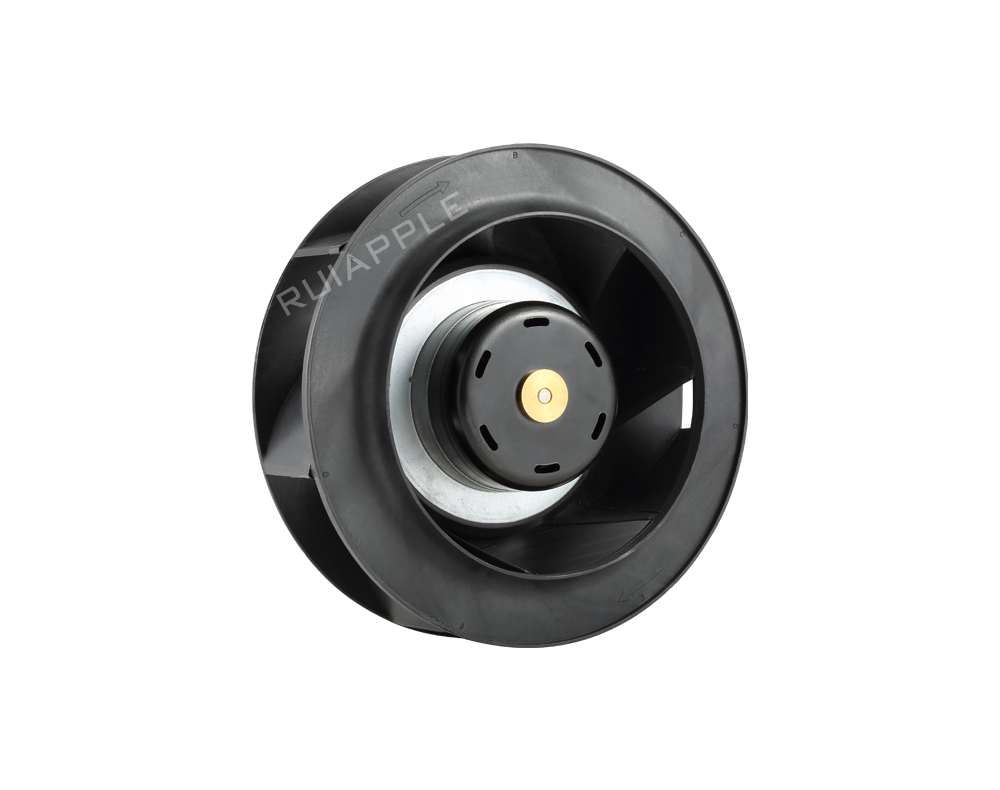

ECC-190 448CFM 578Pa 63Db
DESCRIPTION:

The 190mm EC backward-curved centrifugal fan adopts advanced electronic commutation technology, providing an efficient and energy-saving cooling solution. It compensates for the low rotational speed shortcomings of AC fans. The fan is suitable for industrial control cabinets, enclosures, and other equipment requiring efficient cooling and ventilation. It uses long-life double ball bearings, ensuring smooth operation and low noise, making it ideal for continuous long-term use. The fan features a wide voltage range (110V to 240V AC), making it suitable for various application scenarios.

Date Sheet
Detailed Parameters

Model: ECC190

Fan Type: Backward-Curved Centrifugal Fan

Motor: AC to DC Motor

Power Supply: 110-220VAC 50/60HZ

Bearing Type: Ball/Oil/Sleeve, Optional

Insulation Class: Class B

Motor Type: RUIAPPLE Brushless (BLDC)

Insulation Resistance: 10M/500VDC

Voltage Strength: 2 Minutes /500AVC - 5mA

Humidity Range: RH20% - RH75%

Storage Temperature: -20°C ~+75°C

Operating Temperature: -10°C~+70°C

Maximum of Life Expectancy: 50000 Hours

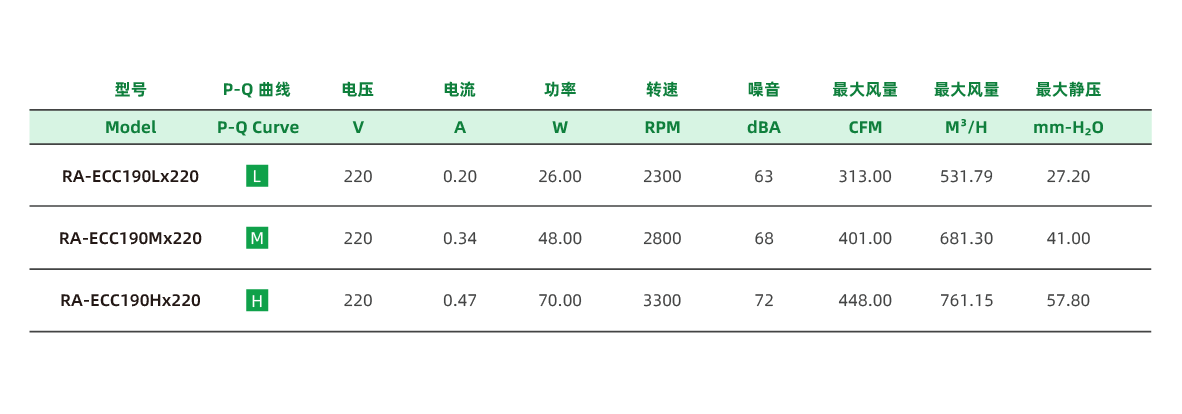

Performance Parameter

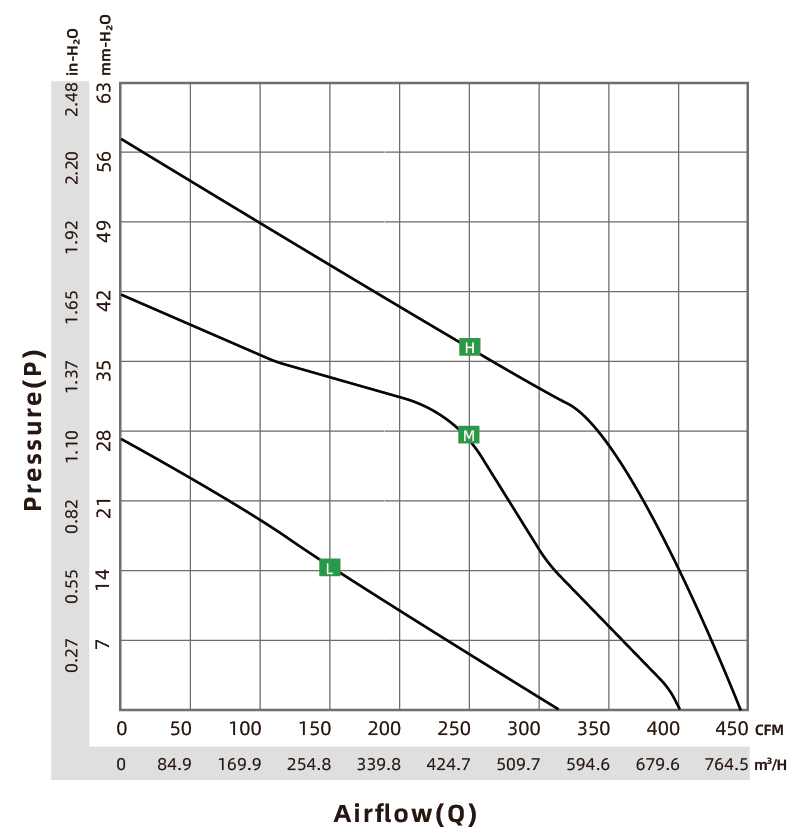

P-Q Curve Chart

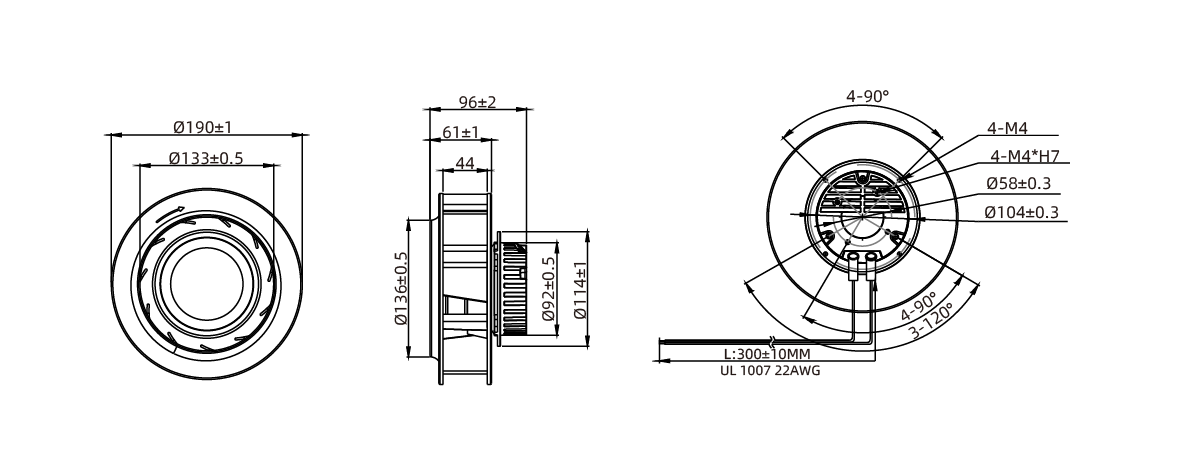

Drawing
