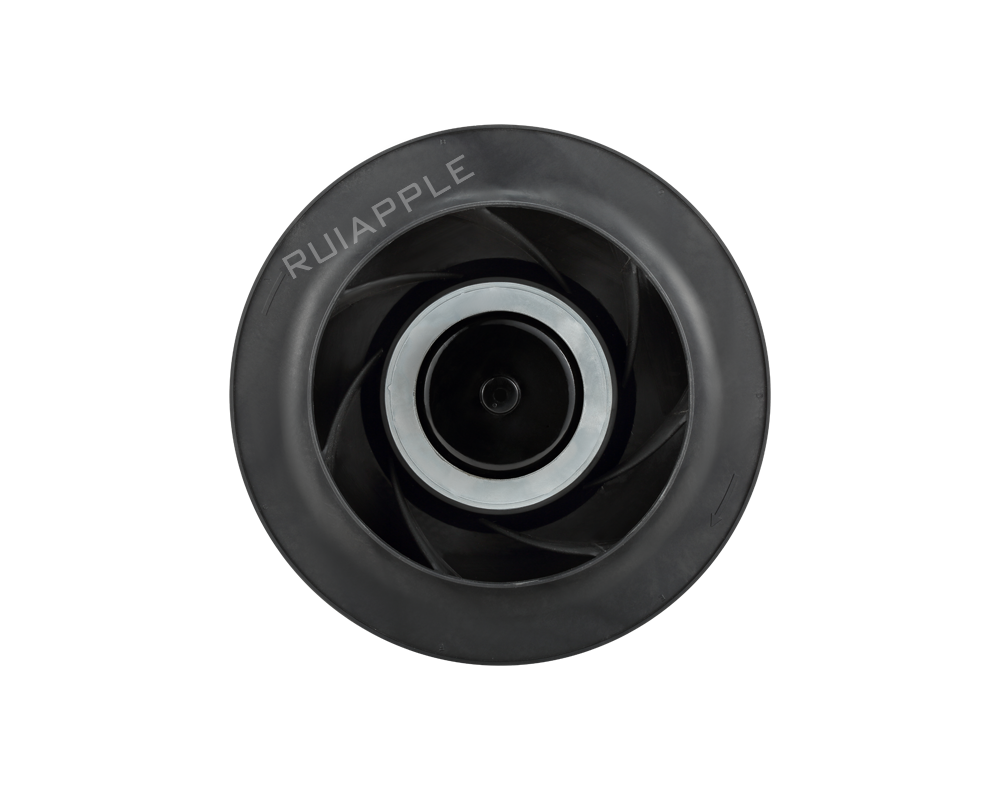

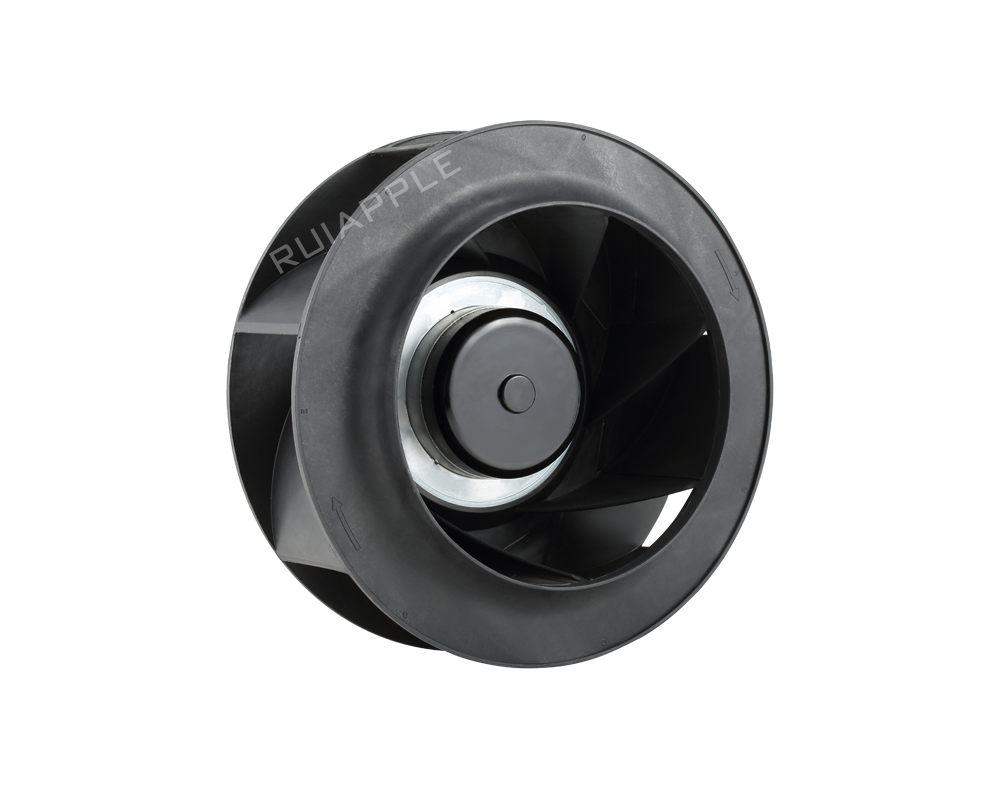

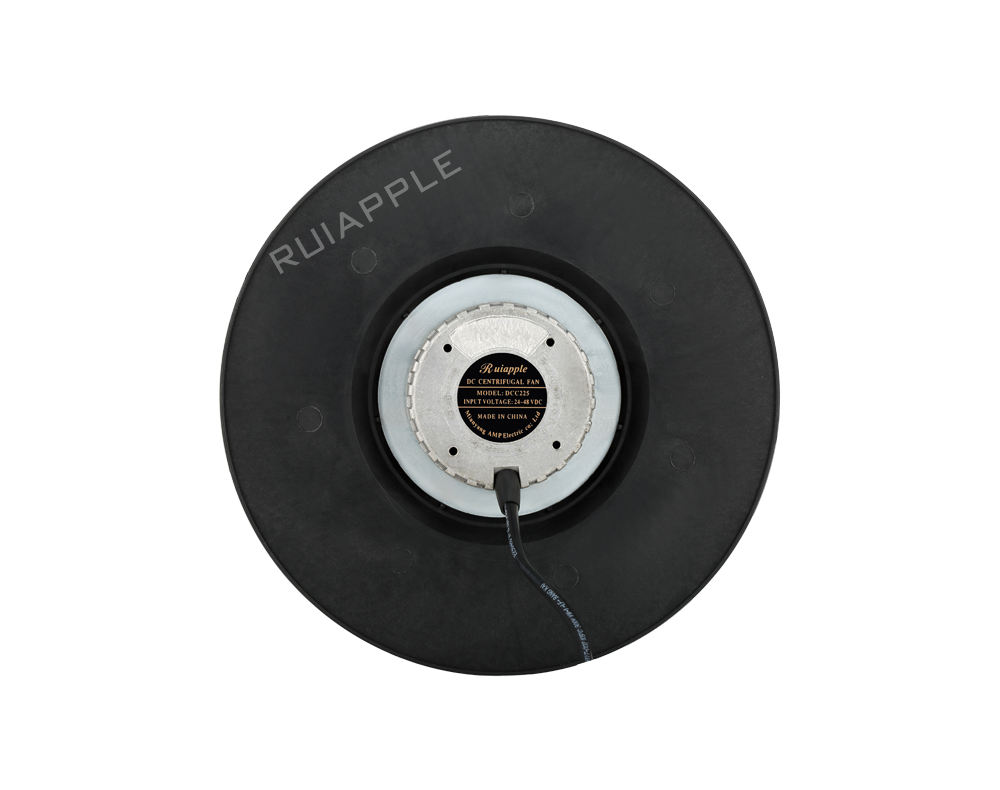

The 225mm brushless DC centrifugal fan is designed for efficient cooling and ventilation, featuring a central air intake and peripheral air outlet design. It is suitable for various industrial and commercial equipment. The fan offers voltage options of 12V, 24V, and 48V. Equipped with high-quality dual ball bearings, it ensures stability and reliability during long-term operation. It is ideal for noise-sensitive environments such as air handling units, medical devices, and industrial ventilation systems.
Date Sheet
Model: DCC-225
Fan Type: Backward-Curved Centrifugal Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: High-Temperature Resistant LPC Engineering Plastic, Flame-Retardant Rated UL-94V0
Base Material: Base frame: Die Cast Aluminum Alloy
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
