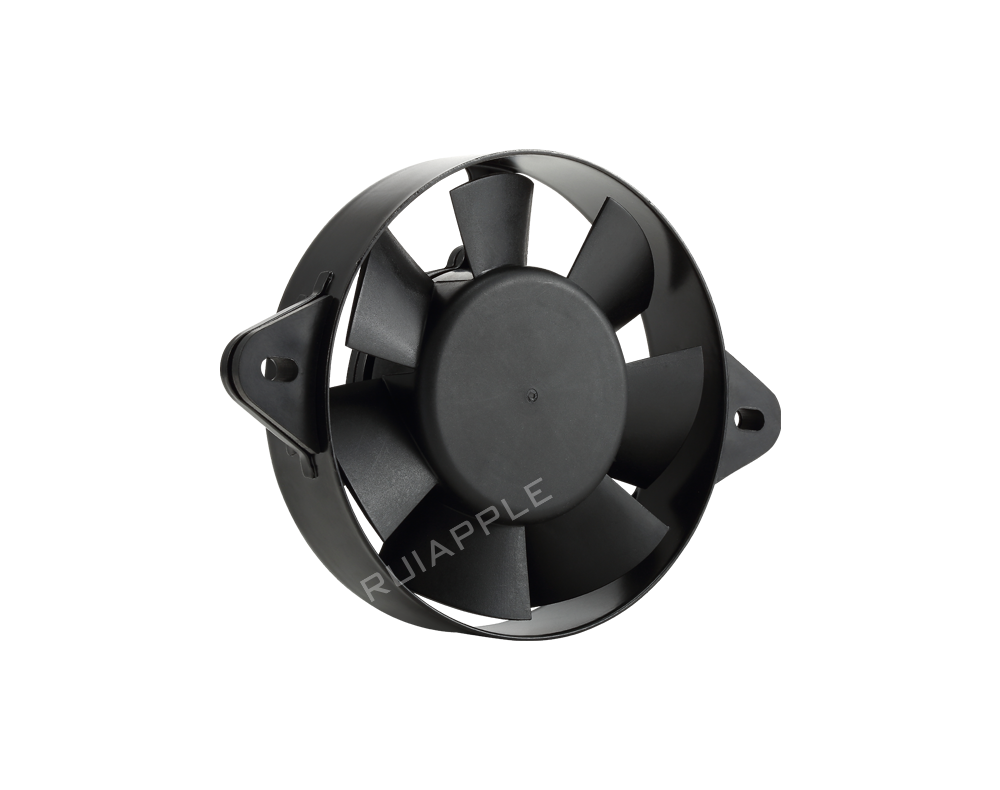

The round 140mm*37mm thick DC axial fan is an industrial-grade fan designed for efficient cooling and ventilation. It features brushless DC motor technology, providing powerful airflow and high static pressure, making it suitable for applications requiring large air volume. The fan housing and blades are made from flame-retardant plastic materials that comply with UL94V-0 standards, ensuring safety and durability in harsh environments. This fan is ideal for cooling various electronic devices, such as computers, servers, power supplies, and industrial automation systems. The dual ball bearing design ensures long lifespan and quiet operation, making it suitable for continuous, long-term use.
Date Sheet
Model: DC-1437
Fan Type: DC Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: Class B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
