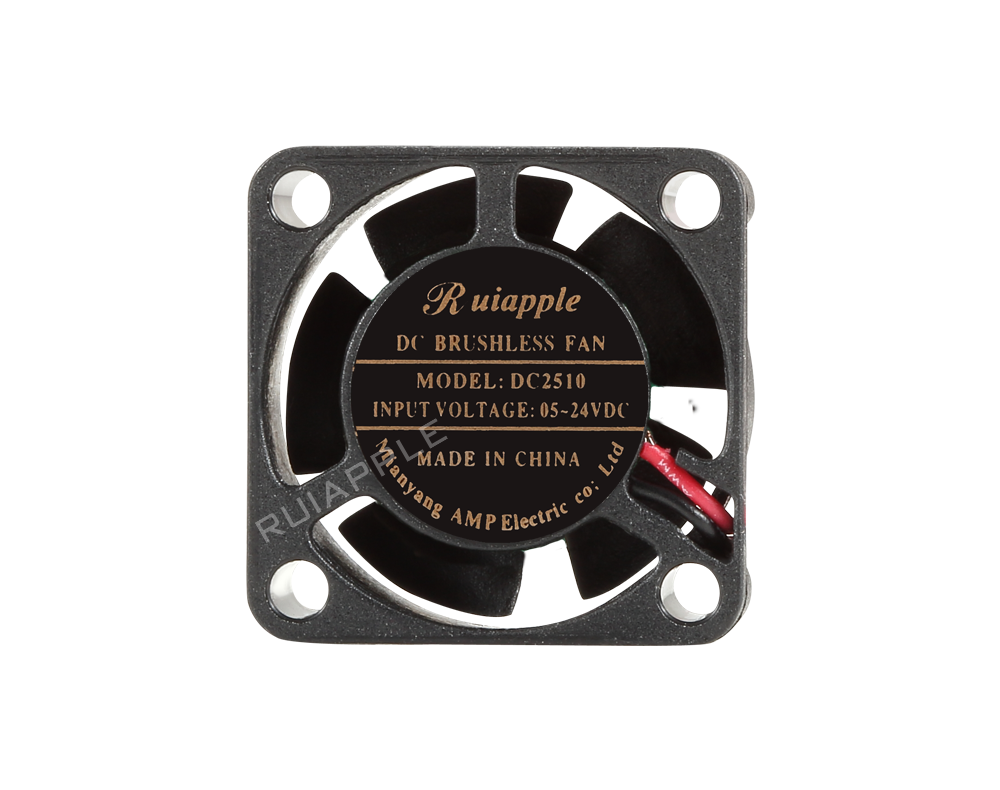

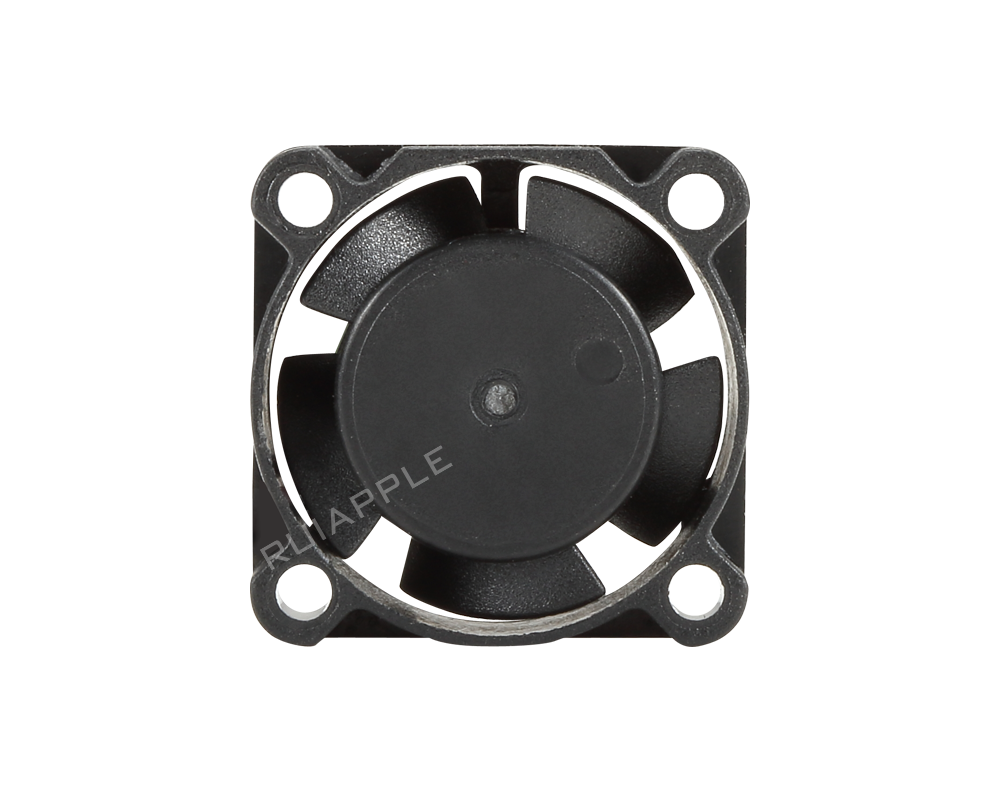

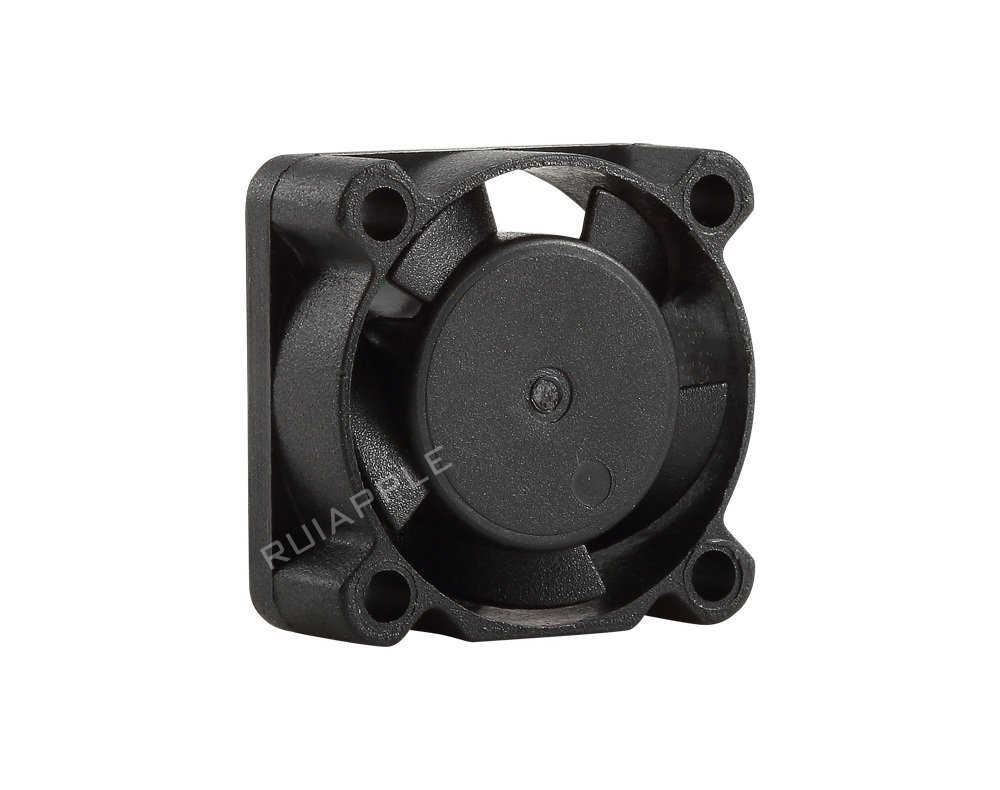

DC-2510 3.9CFM 180Pa 22.4Db
DESCRIPTION:

The 25x25x10mm DC axial fan is an efficient cooling solution specifically designed for compact electronic devices and industrial applications. Its small size and high rotational speed enable it to deliver powerful airflow in limited spaces, making it ideal for devices with high cooling demands, such as smartphones, tablets, laptops, and other consumer electronics. Additionally, this fan is widely used in medical equipment, industrial control systems, and automotive electronics. It offers low noise and strong durability, while complying with CE and RoHS safety certifications, ensuring stable operation in applications with high safety requirements.

Date Sheet
Detailed Parameters

Model: DC-2510

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Insulation Class: B

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

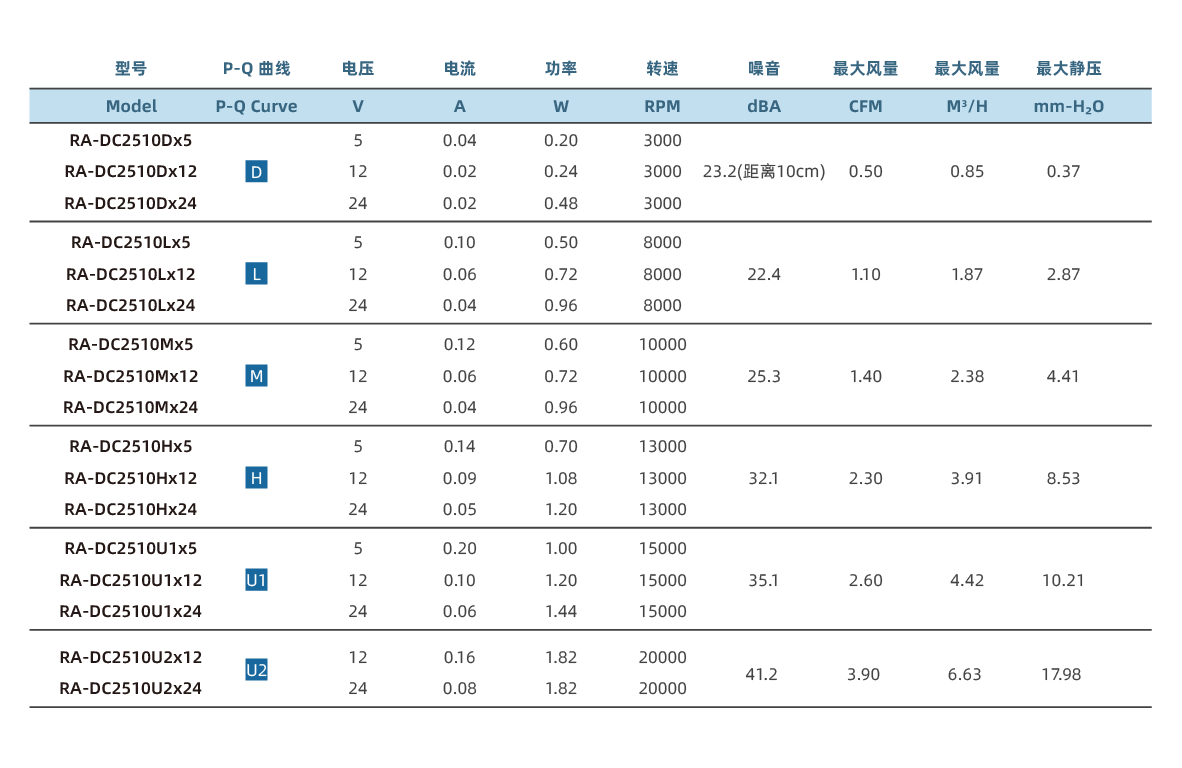

Performance Parameter

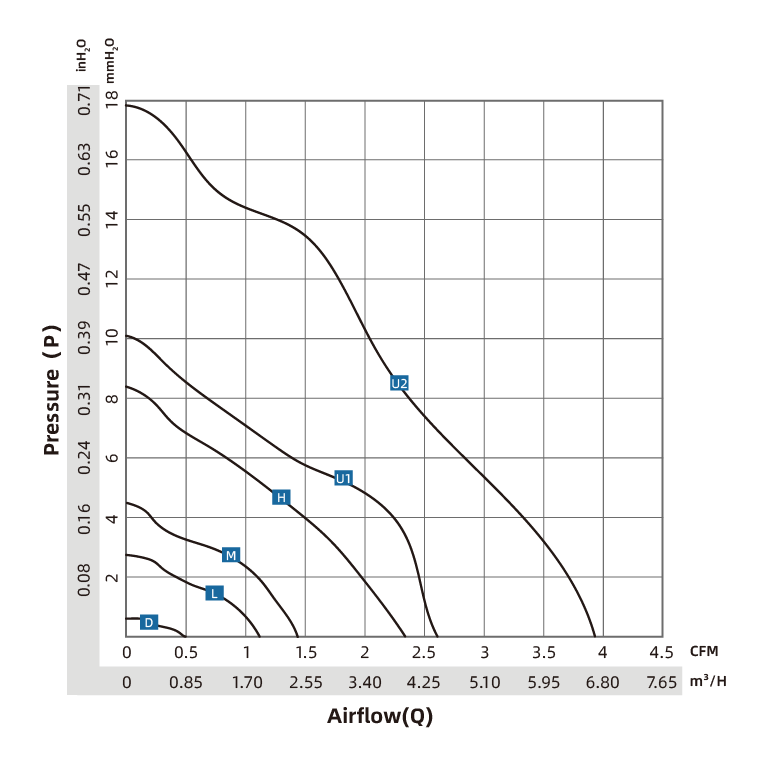

P-Q Curve Chart

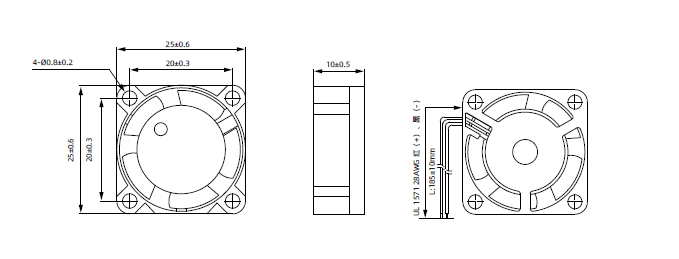

Drawing
