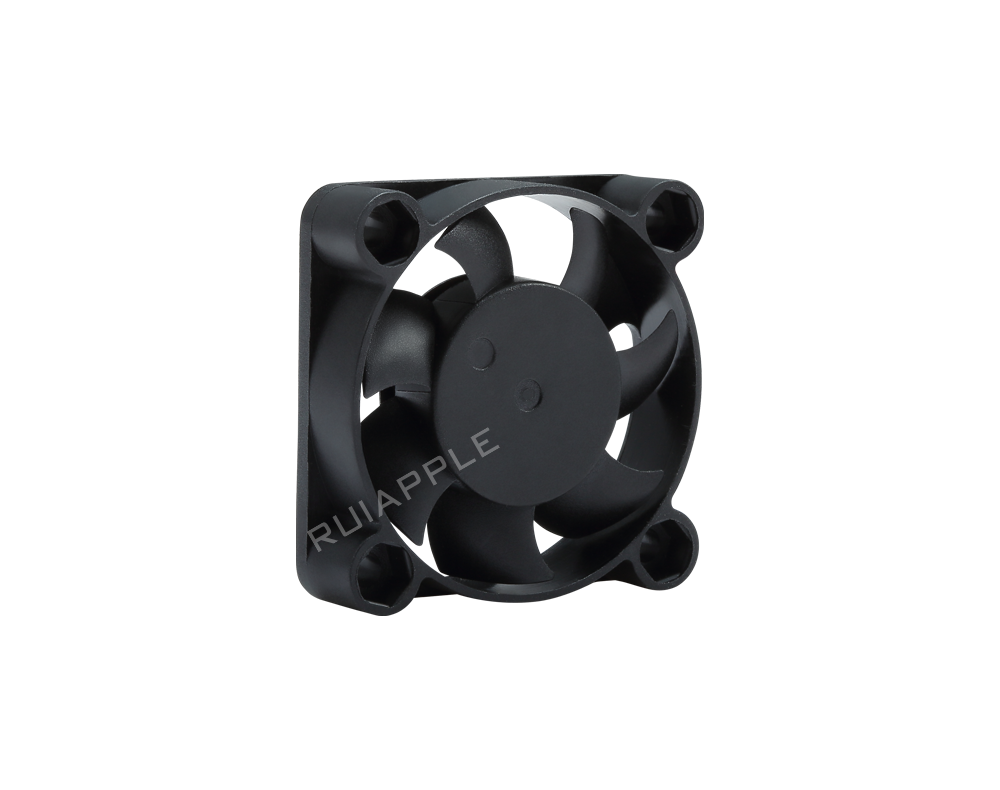

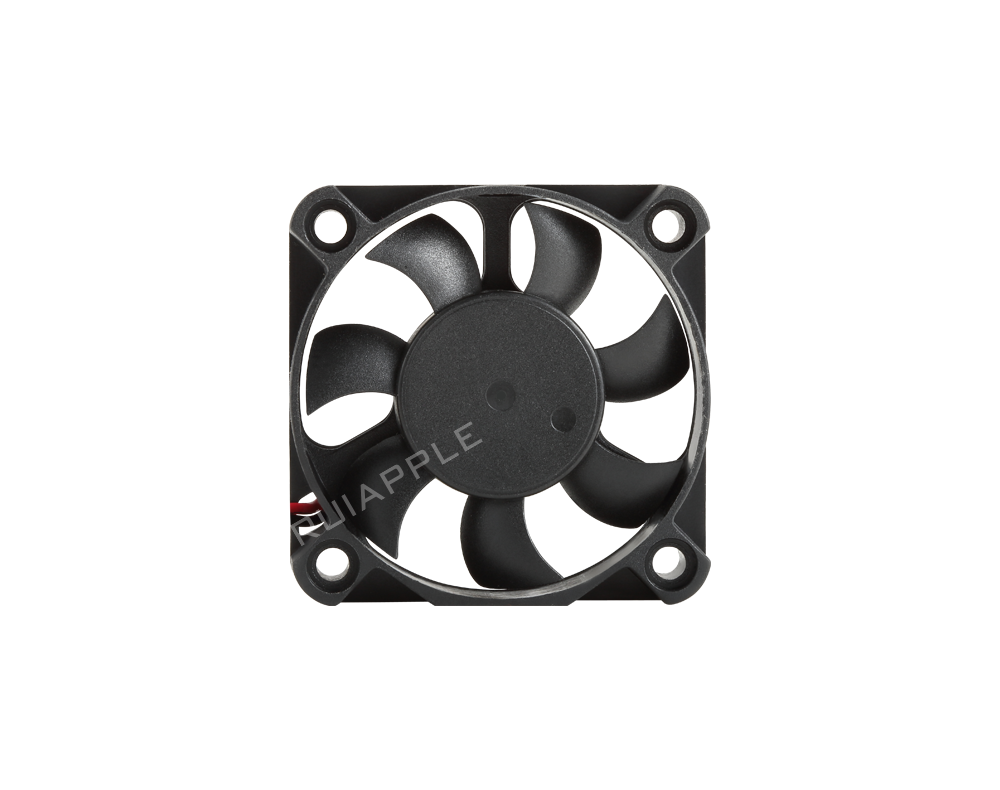

The 50x50mm DC axial fan offers excellent cooling performance, making it suitable for various high-density electronic devices and industrial applications. Whether it's the ultra-thin 10mm design or the 25mm high-airflow model, this fan provides an efficient cooling solution in confined spaces. It features brushless DC motor technology, ensuring low noise, long lifespan, and low power consumption. This fan is ideal for use in communication equipment, industrial control systems, servers, 3D printers, and other devices requiring continuous cooling. The fan supports PWM speed control, allowing users to adjust the fan speed precisely according to their needs for optimal energy efficiency. Additionally, this fan series is CE, RoHS, and UL certified, ensuring reliability and safety in harsh environments.
Date Sheet

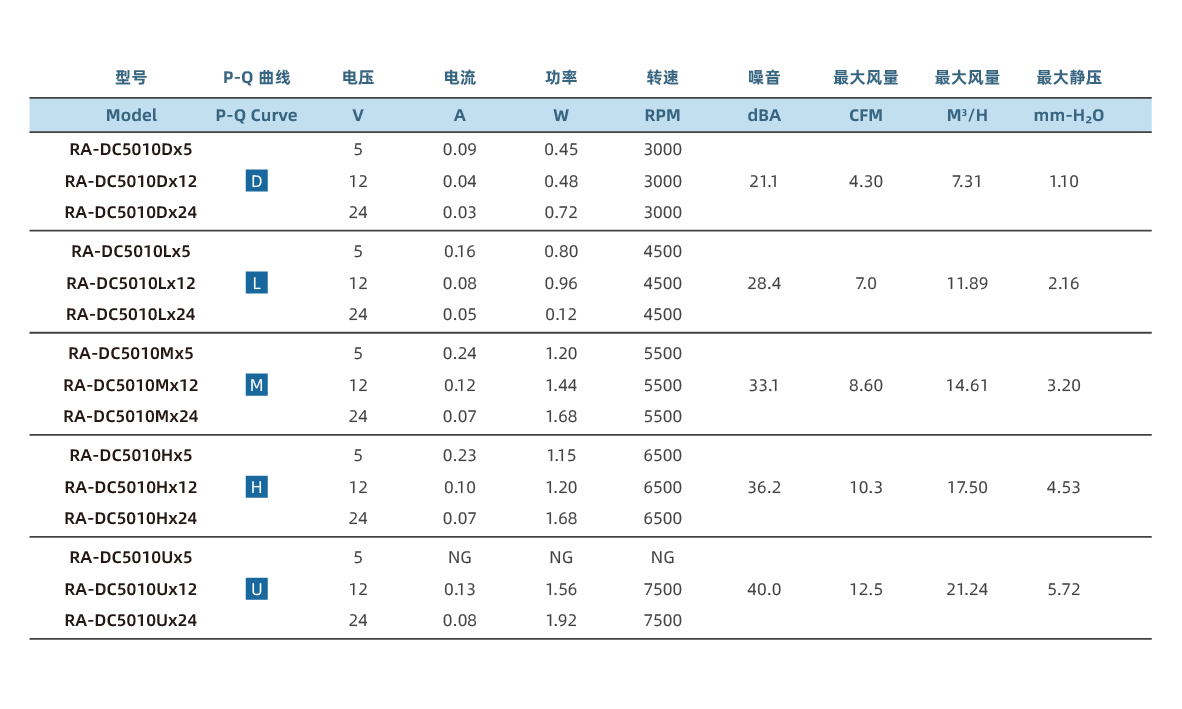

Model: DC-5010
Fan Type: Axial Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
