DC-6015 25.0CFM 95.3Pa 21.6Db
DESCRIPTION:

The 60x60x15mm DC axial fan is specifically designed to meet the efficient cooling needs of compact devices. It provides effective heat dissipation in space-constrained environments. The fan supports multiple voltage options (5V, 12V, 24V) and offers a choice of different bearing types (such as sleeve bearings, hydraulic bearings, and dual ball bearings) to suit various application requirements. With a wide speed range, it delivers high airflow, making it ideal for small electronic devices, computer cases, communication equipment, and other applications that require quiet, efficient cooling. Additionally, the fan is CE and FCC certified, meeting multiple international safety standards to ensure reliability and durability in diverse operating conditions.

Date Sheet
Detailed Parameters

Model: DC-6015

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

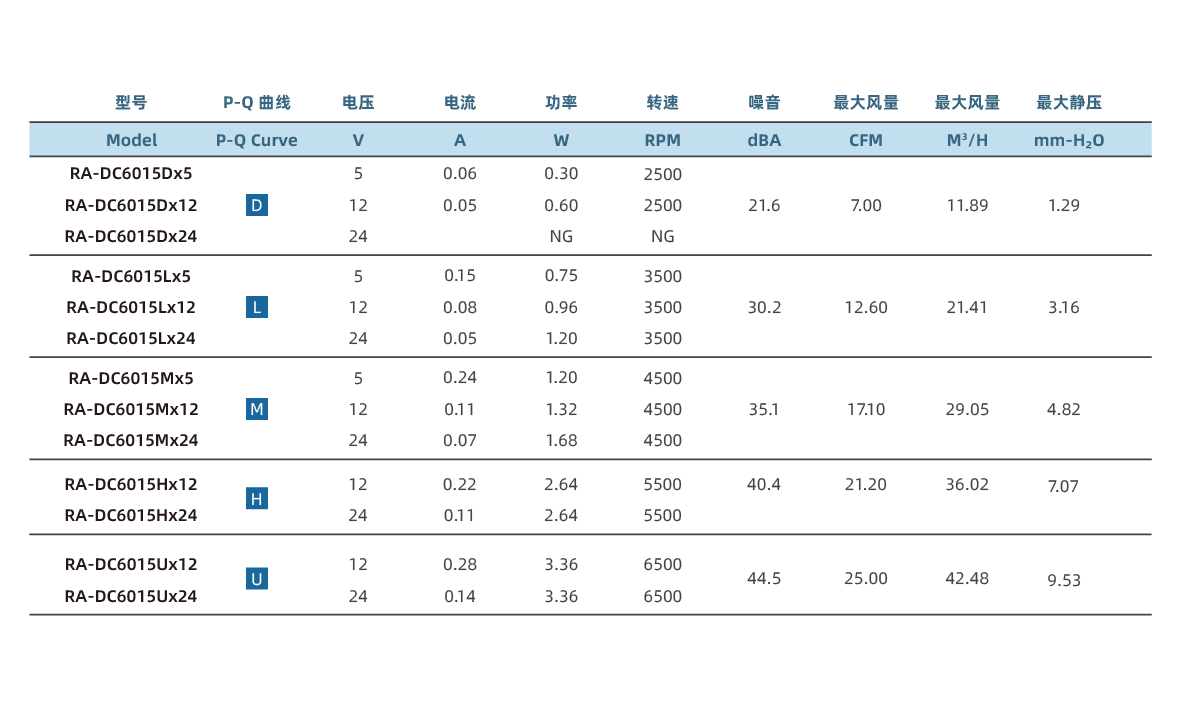

Performance Parameter

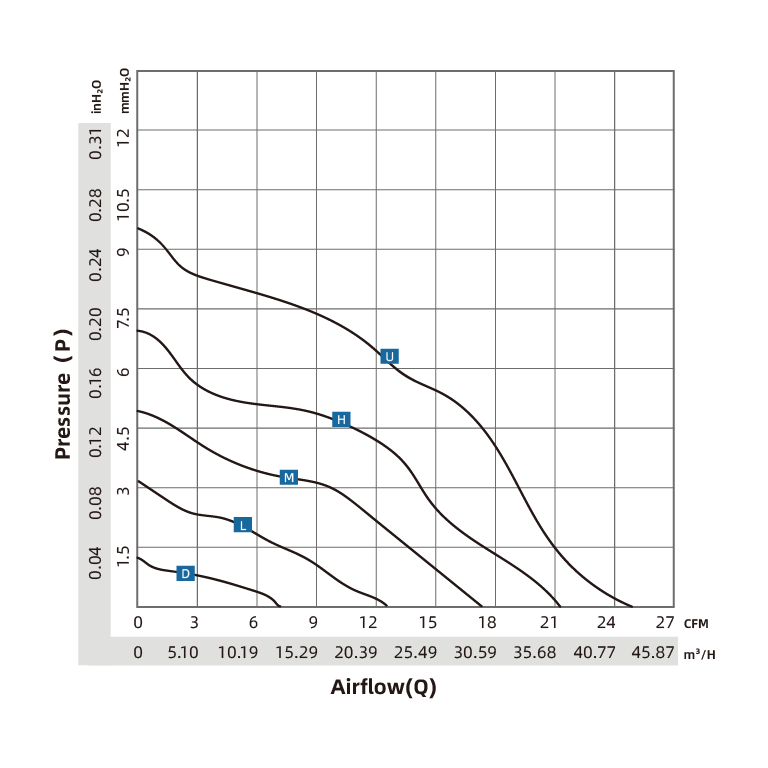

P-Q Curve Chart
Drawing
