DC-2006 1.05CFM 38Pa 10.5Db
DESCRIPTION:

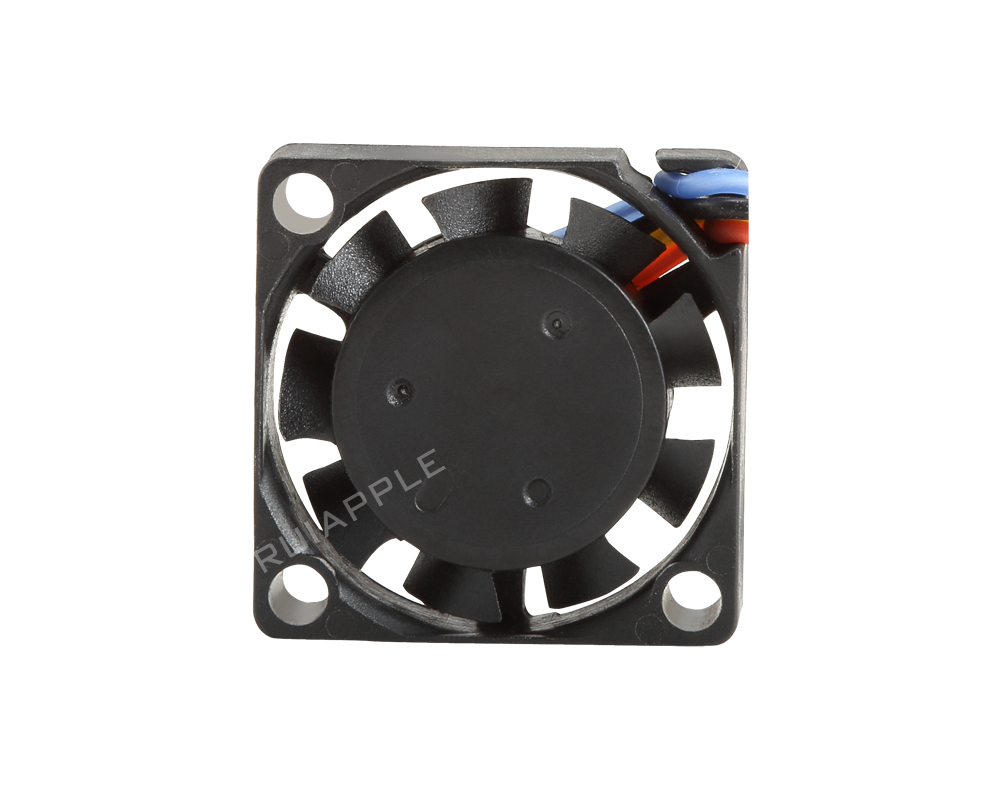

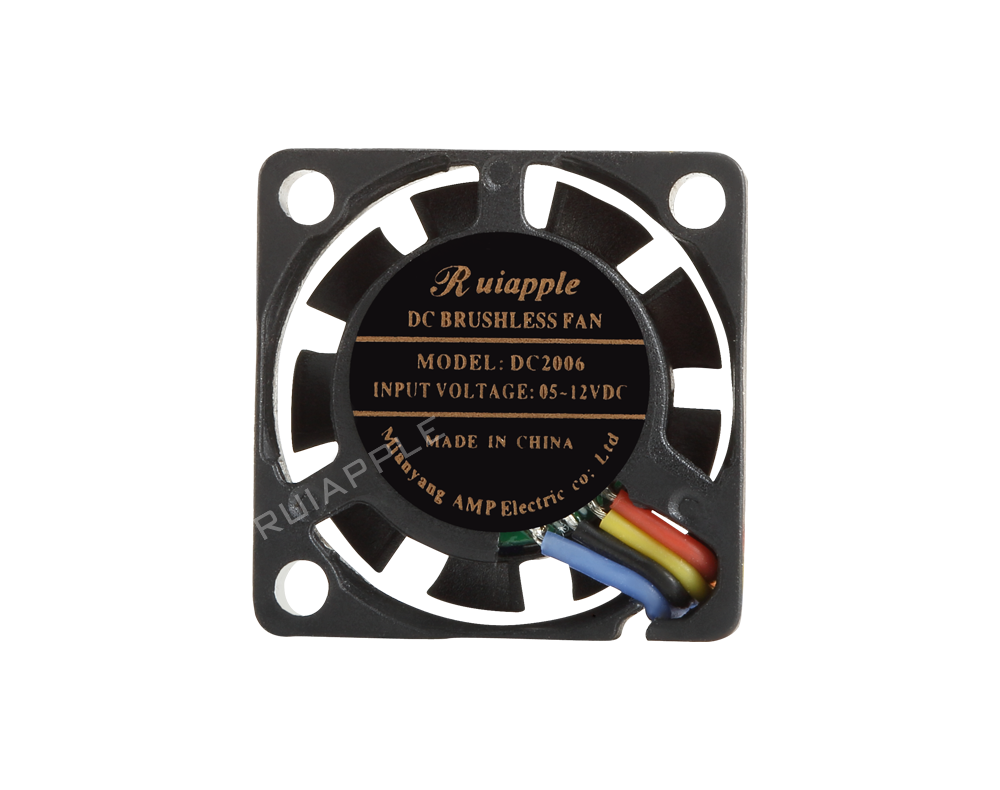

This 20x20x6mm DC axial fan is an efficient cooling solution designed for compact electronic devices and industrial applications. Its small size and high rotational speed enable it to provide powerful airflow in limited spaces, making it ideal for devices with high cooling demands, such as PM2.5 sensors, hard drives, heatsinks, wireless chargers, and other consumer electronics. Additionally, this fan is widely used in medical equipment, industrial control systems, and automotive electronics. It features low noise, strong durability, and complies with CE and RoHS safety certifications, ensuring stable operation in applications with high safety requirements.

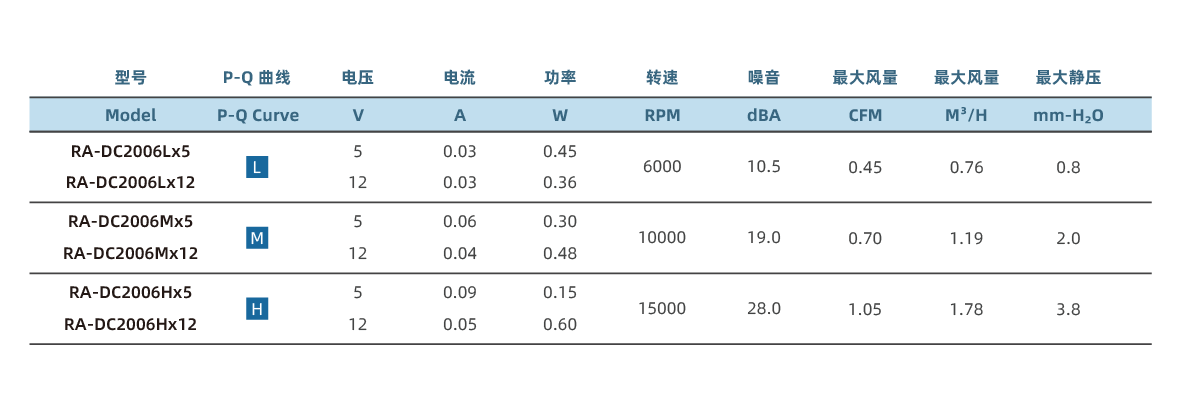

Date Sheet
Detailed Parameters

Model: DC-2006

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: Class B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

Performance Parameter

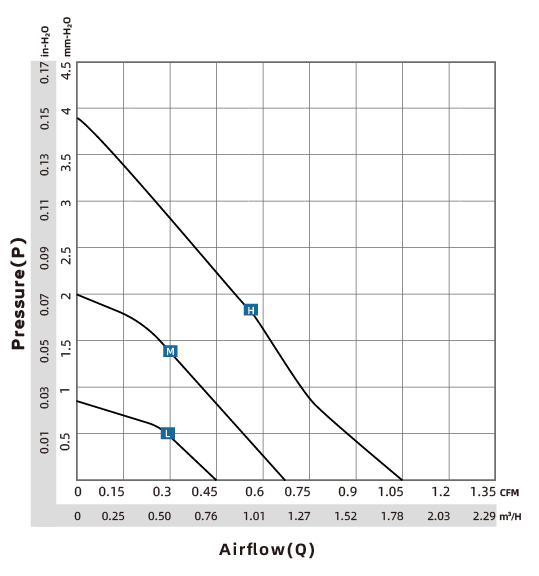

P-Q Curve Chart

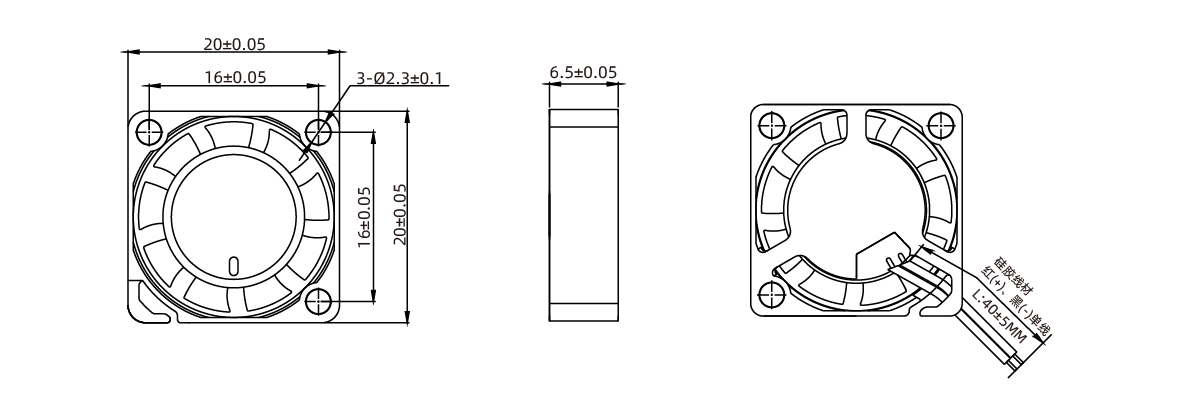

Drawing
