The 200x200mm DC fan is a high-performance cooling device specifically designed for demanding environments. It offers powerful cooling capacity and exceptional energy efficiency, providing continuous and reliable airflow support in high-temperature, enclosed working conditions. This fan features advanced DC motor technology, which not only reduces energy consumption but also significantly lowers operating noise, making it ideal for noise-sensitive applications such as data centers, medical equipment, and precision electronics cooling. With its carefully engineered structure and durable materials, our fan ensures long-lasting, stable operation, maintaining excellent performance even in the harshest industrial environments. This fan is the perfect choice for enhancing equipment efficiency and extending its lifespan.
Date Sheet

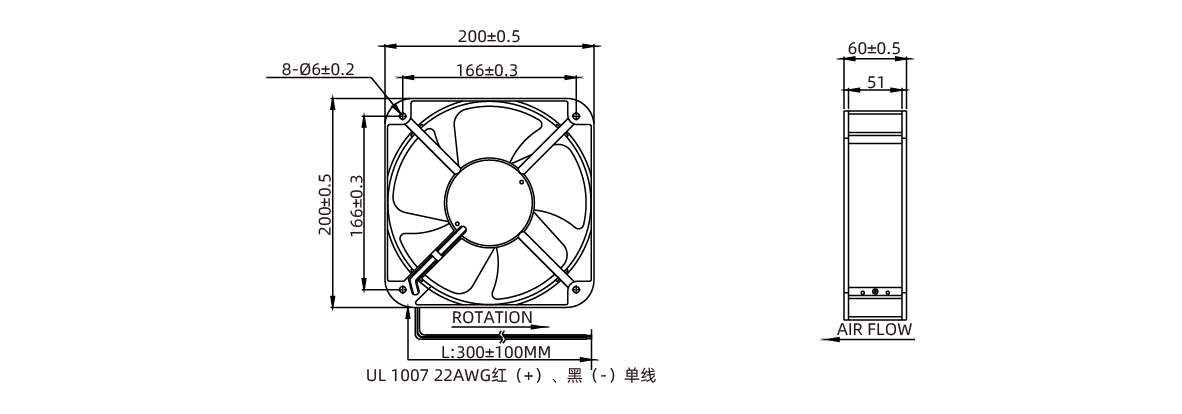

Model: DC-20060
Fan Type: Axial Fan
Motor: Brushless DC Motor
https://ruiapple-fan-cn.oss-cn-shanghai.aliyuncs.com/6020zhong.mp4
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: Class B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
