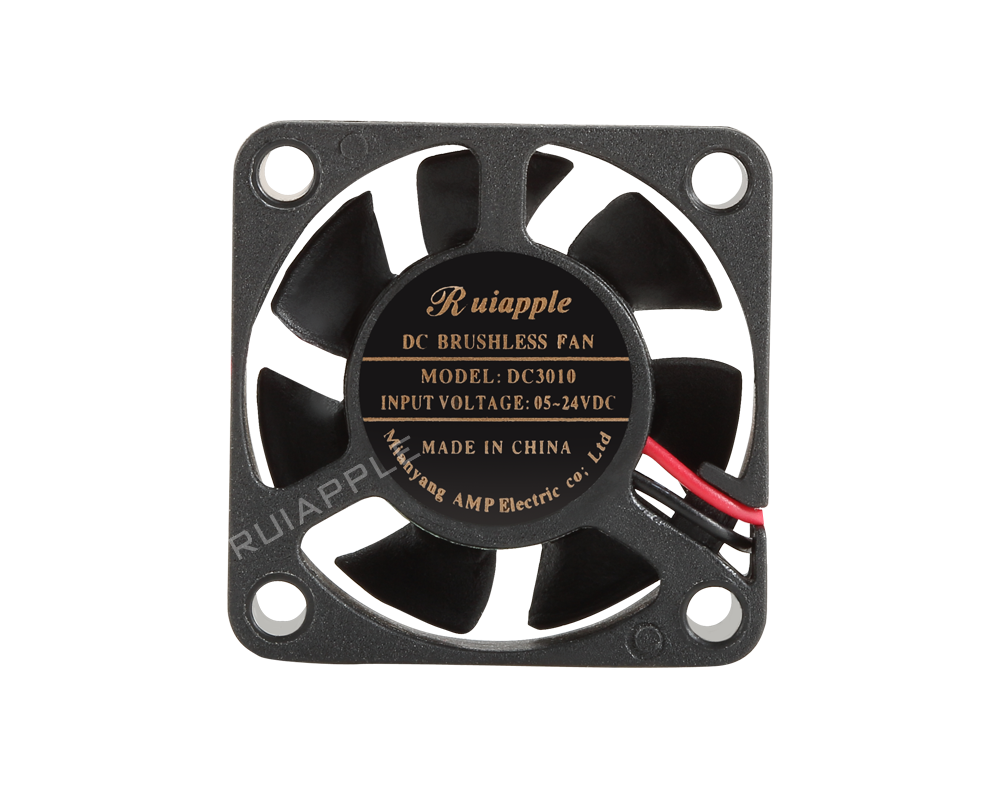

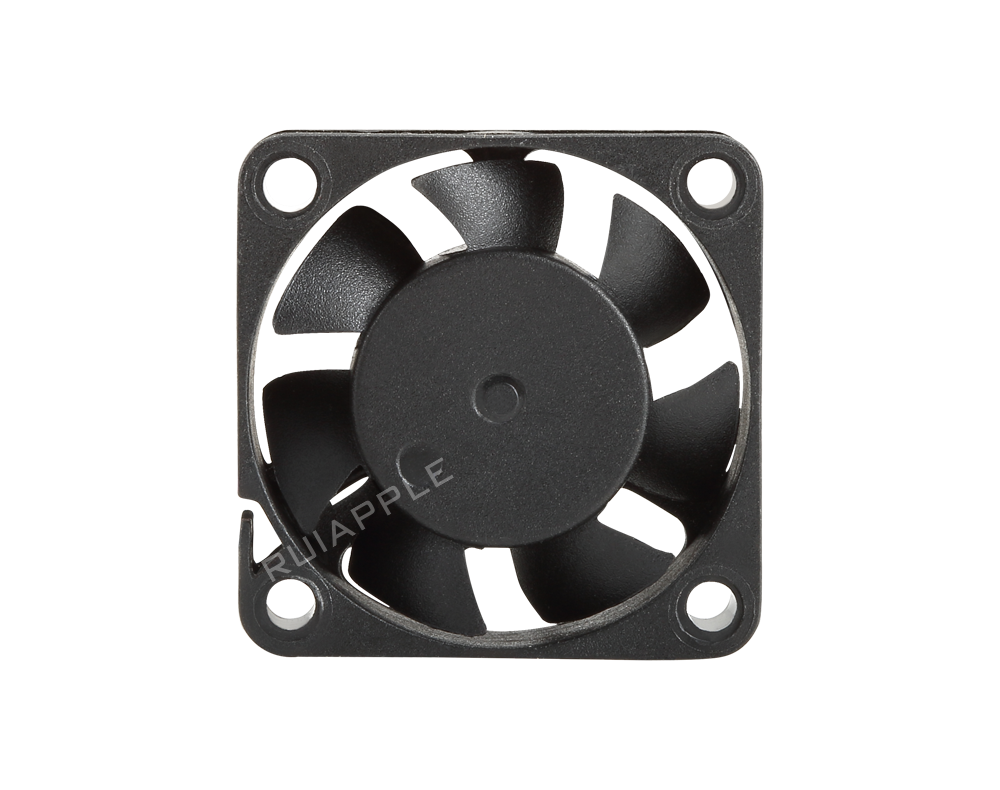

DC-3010 6.0CFM 105Pa 23.4Db
DESCRIPTION:

The 30x30x10mm DC axial fan is a high-performance cooling component specifically designed for small electronic devices and compact industrial applications. With dimensions of 30x30mm, it delivers powerful airflow in limited spaces, ensuring stable operation of equipment under high load or elevated temperature conditions. The fan features a brushless DC motor design, offering low power consumption, low noise, and long life, making it ideal for use in consumer electronics, semiconductor cooling fans, LiDAR, wireless chargers, communication equipment, automation control systems, and medical devices. Additionally, the fan meets various international safety certifications (such as CE, RoHS, UL) and supports multiple operating voltages to accommodate different application requirements.

Date Sheet
Detailed Parameters

Model: DC-3010

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

Performance Parameter

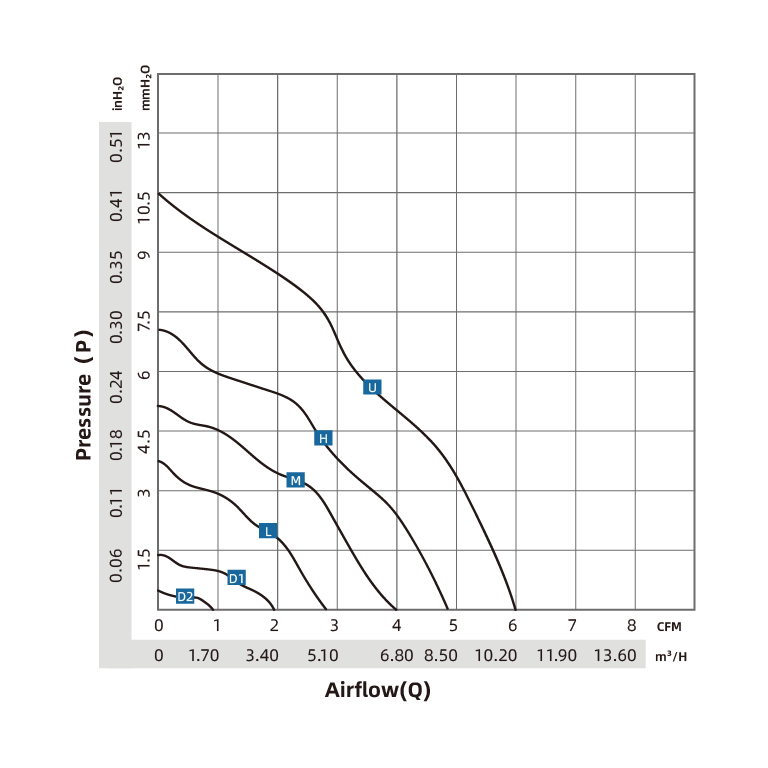

P-Q Curve Chart

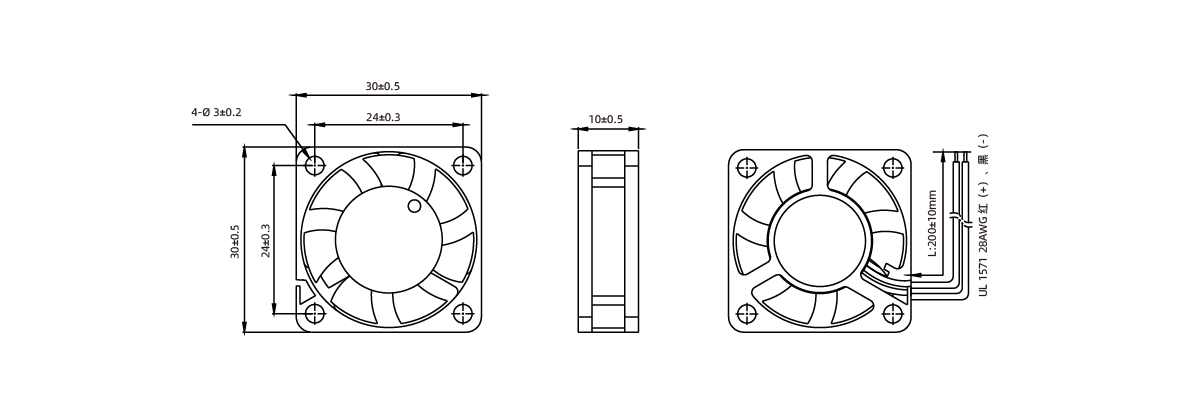

Drawing
