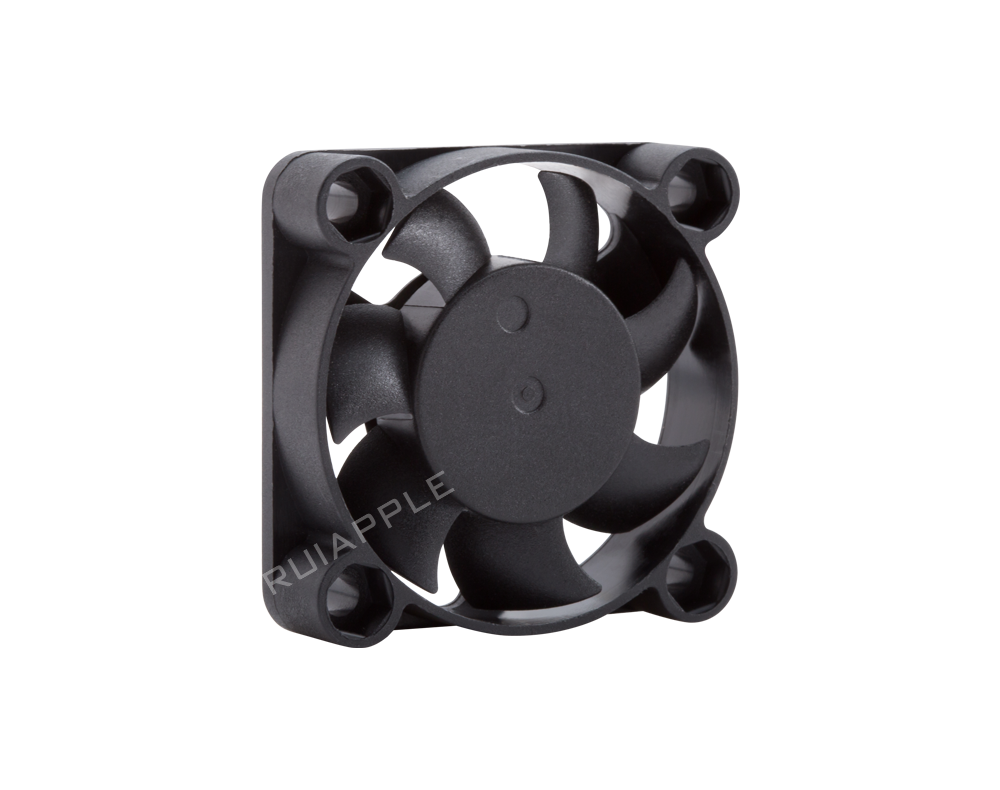

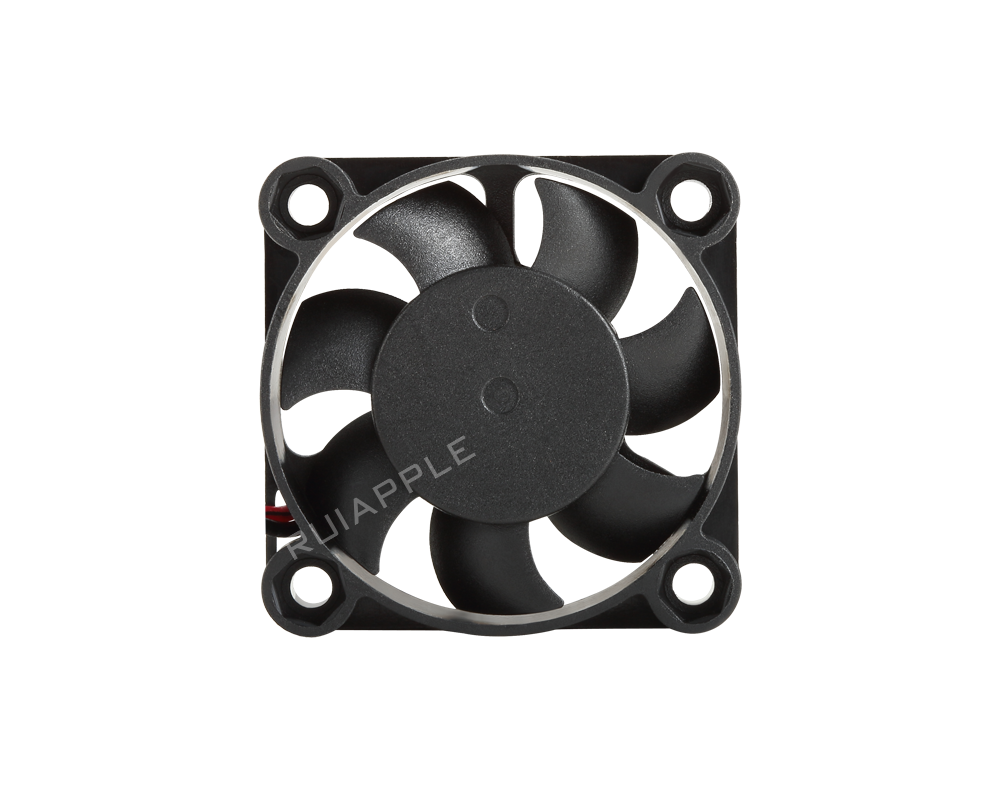

The 40x40x10mm DC axial fan is designed for small electronic devices and industrial applications that require efficient heat dissipation. With its compact size and powerful cooling capability, the fan provides stable airflow in confined spaces, preventing overheating and extending the lifespan of devices. The fan utilizes a brushless DC motor, offering low power consumption, low noise, and long lifespan, making it ideal for applications such as LiDAR, semiconductor cooling, routers, switches, power adapters, industrial control equipment, and medical devices that require precise cooling. This product meets international safety certifications such as CE, RoHS, and UL, ensuring reliability and durability under high safety standards.
Date Sheet

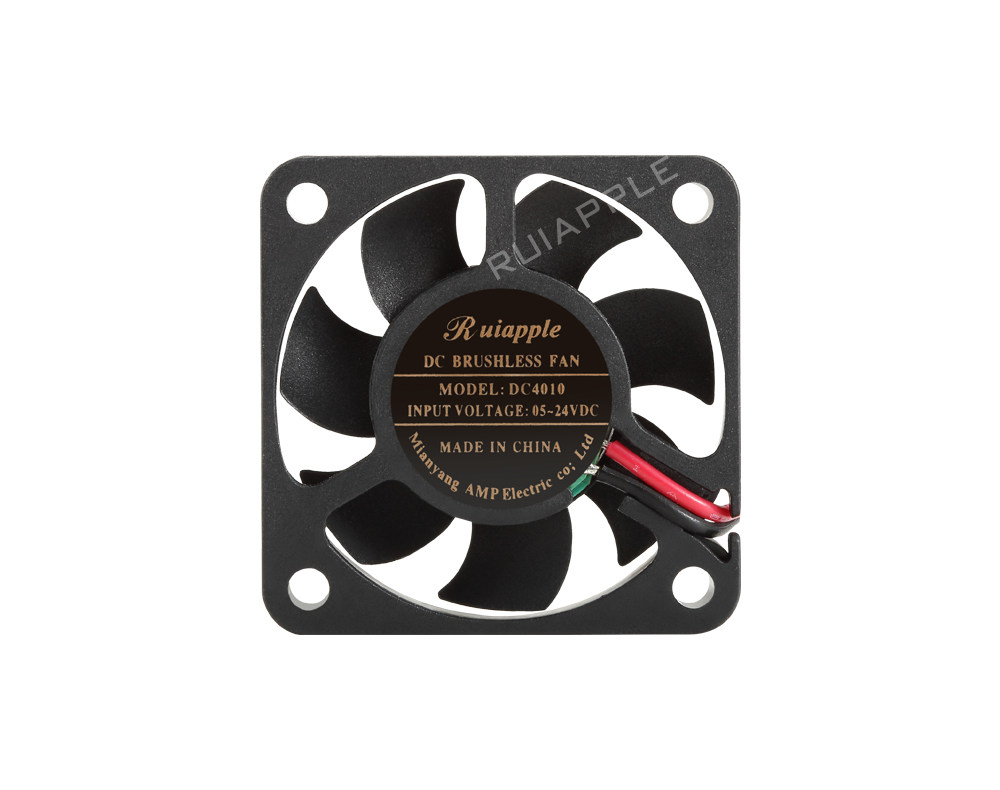

Model: DC-4010
Fan Type: Axial Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
