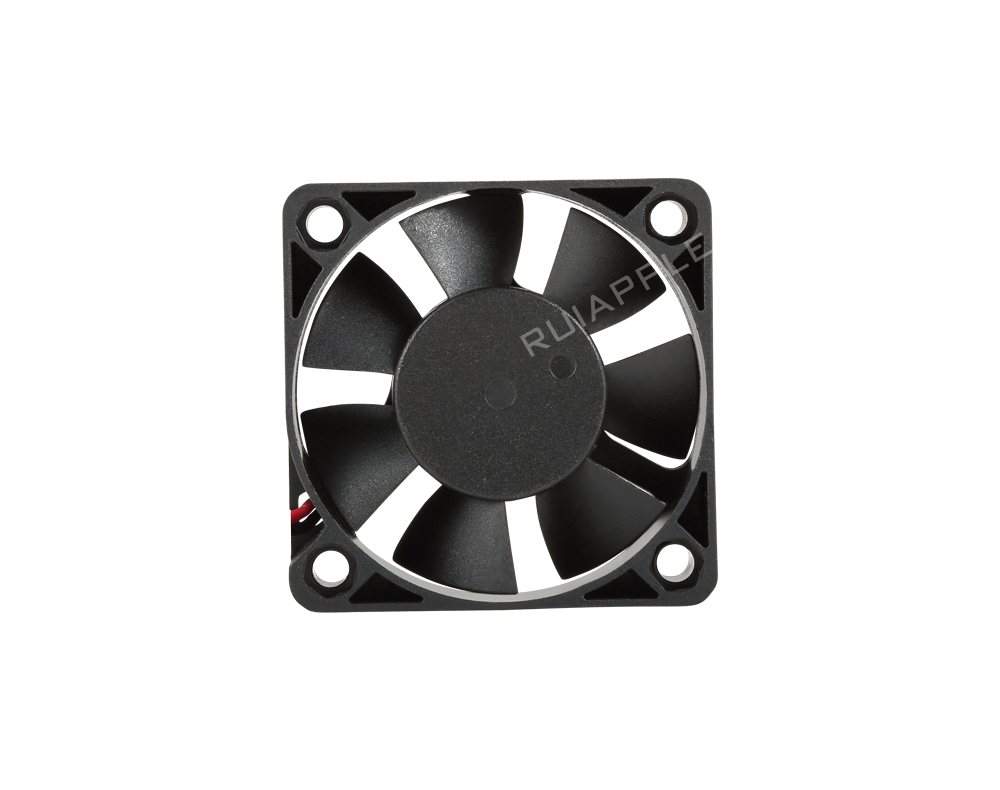

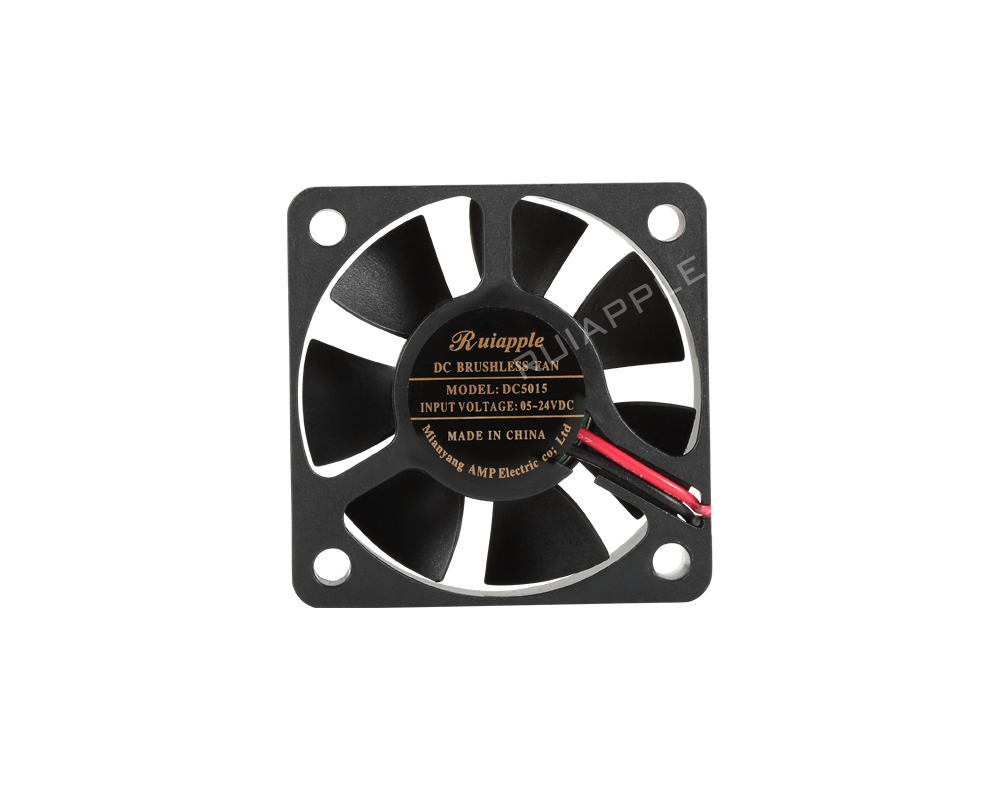

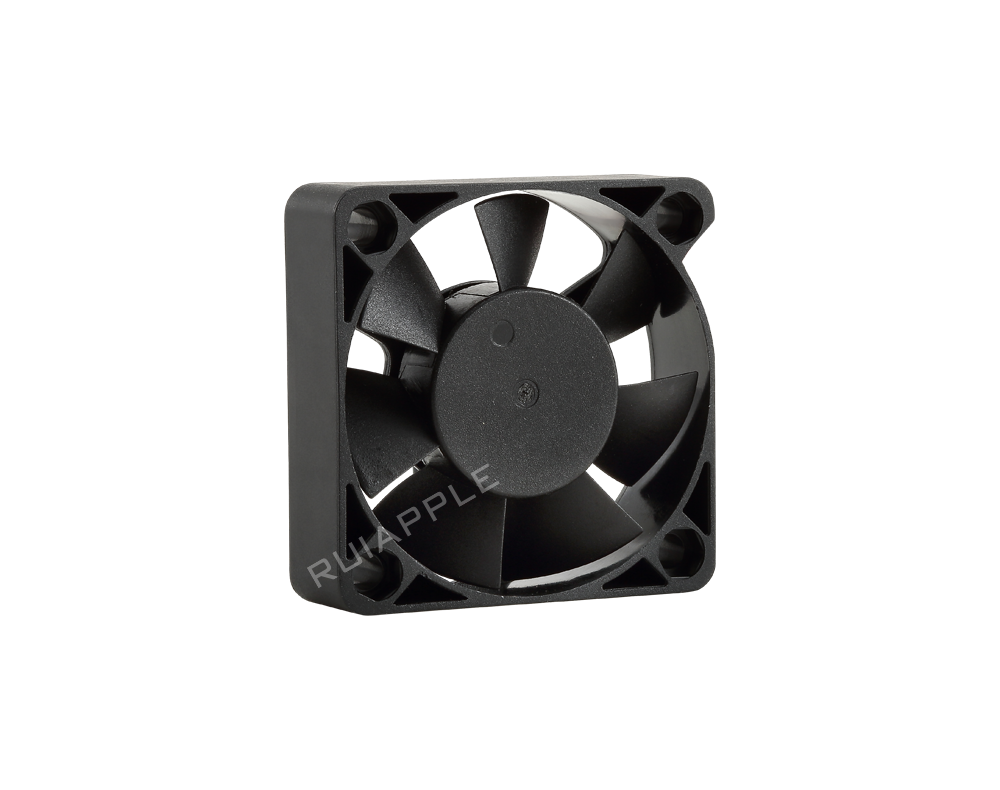

DC-5015 19.20CFM 86.8Pa 20.6Db
DESCRIPTION:

The 50x50mm DC axial fan offers excellent cooling performance, making it suitable for a variety of high-density electronic devices and industrial applications. Whether it’s the ultra-thin 10mm design or the 25mm high airflow model, this fan provides efficient cooling solutions in tight spaces. It utilizes brushless DC motor technology, featuring low noise, long life, and low power consumption. The fan is ideal for use in communication equipment, industrial control systems, servers, 3D printers, and other devices requiring continuous cooling. The fan supports PWM speed control, allowing users to precisely adjust the fan speed based on their needs for optimal energy efficiency. This fan series is also CE and RoHS certified, ensuring reliability and safety in harsh environments.

Date Sheet
Detailed Parameters

Model: DC-5015

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

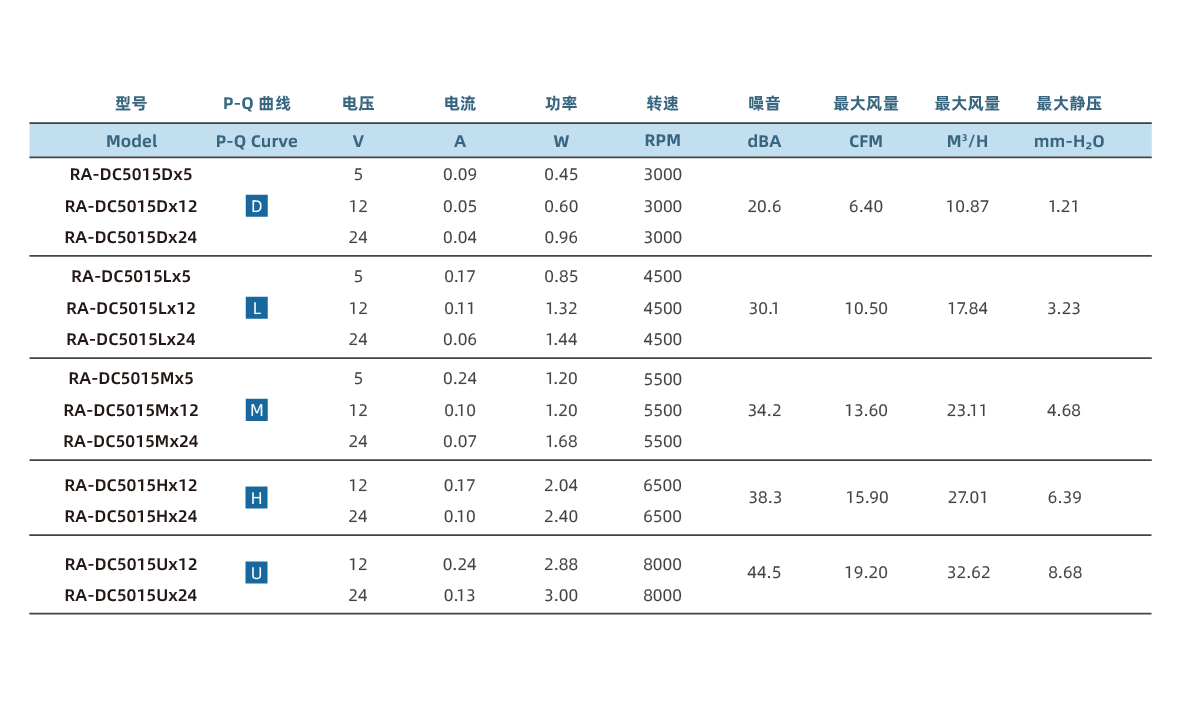

Performance Parameter

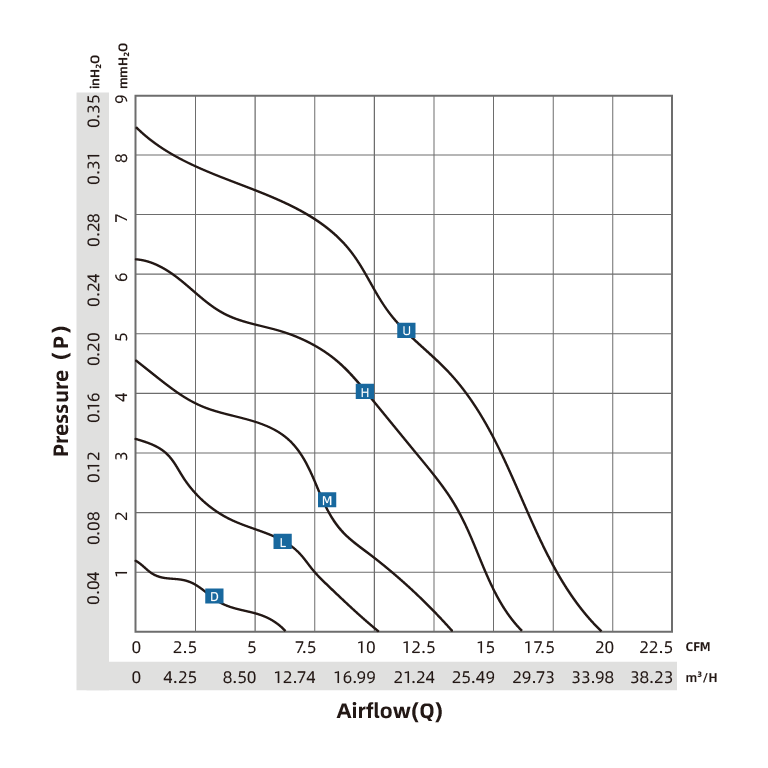

P-Q Curve Chart
Drawing
