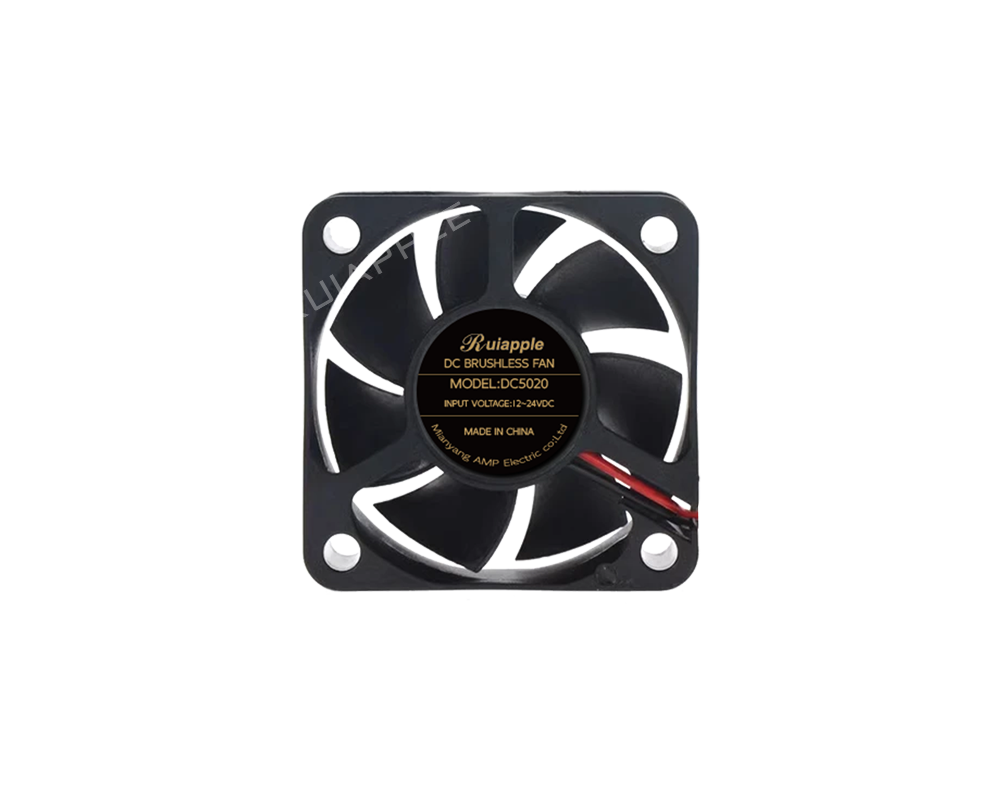

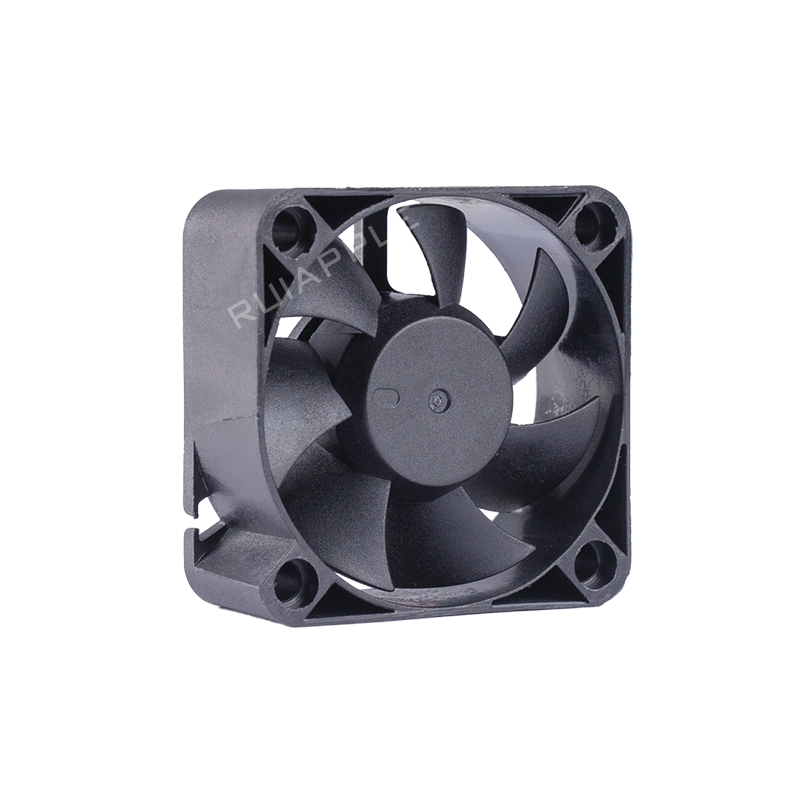

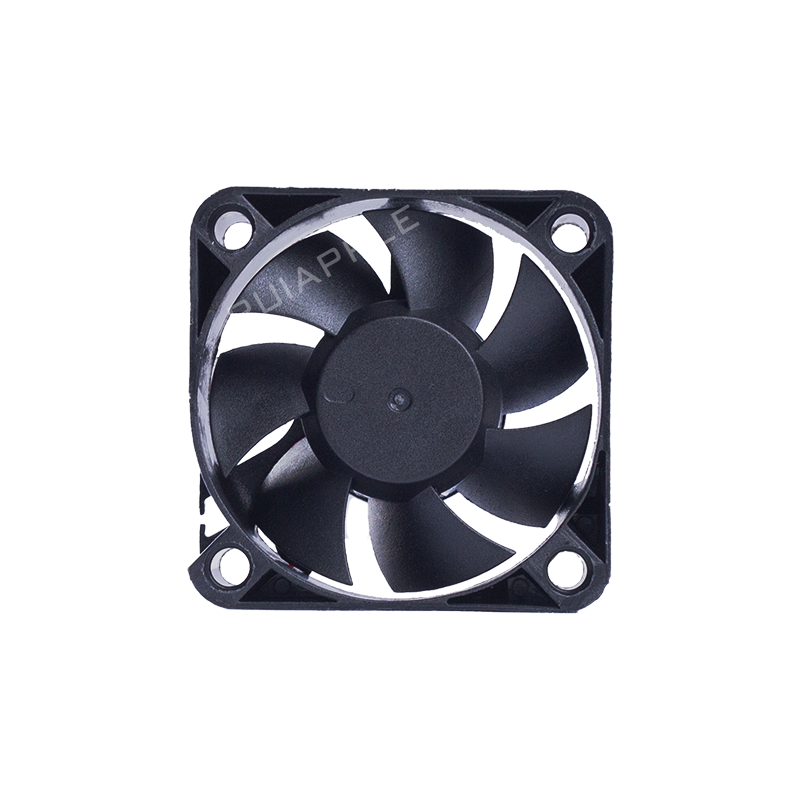

DC-5020 15.1CFM 54Pa 30Db
DESCRIPTION:

The 50x50mm DC axial fan offers excellent cooling performance, suitable for various high-density electronic devices and industrial applications. Whether it's the ultra-thin 10mm design or the 25mm high-airflow model, this fan provides an efficient cooling solution in confined spaces. It features brushless DC motor technology, offering low noise, long lifespan, and low power consumption. This fan is ideal for use in communication equipment, industrial control systems, servers, 3D printers, and other devices requiring continuous cooling. The fan supports PWM speed control, allowing users to precisely adjust the fan speed according to their needs for optimal energy efficiency. Additionally, this fan series is CE and RoHS certified, ensuring reliability and safety in demanding environments.

Date Sheet
Detailed Parameters

Model: DC-5020

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

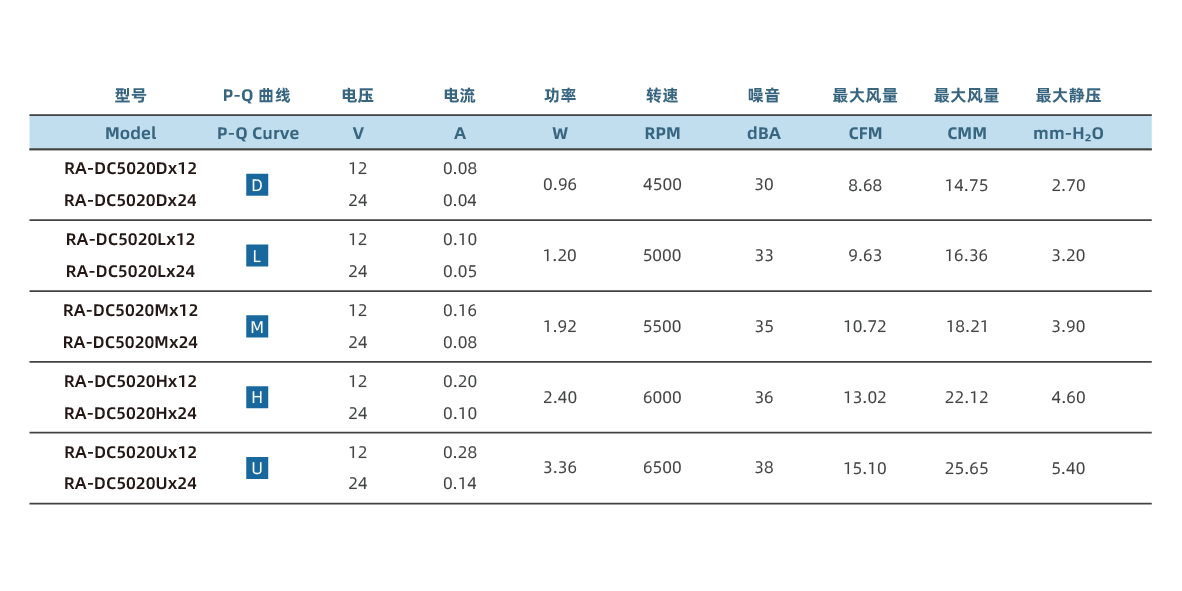

Performance Parameter

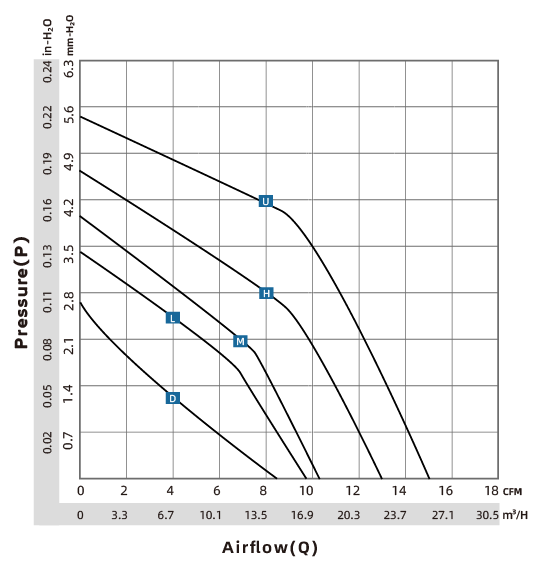

P-Q Curve Chart

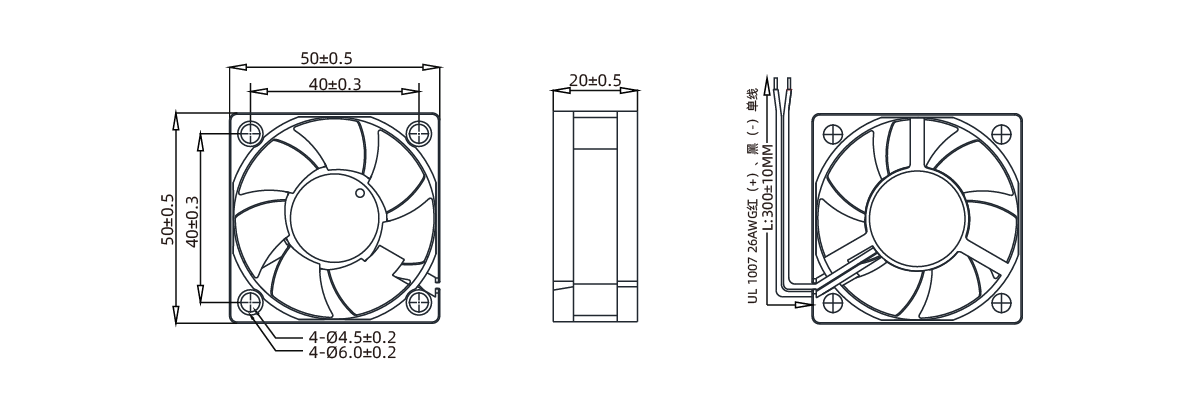

Drawing
