DC-6010 23.8CFM 55.9Pa 25.3Db
DESCRIPTION:

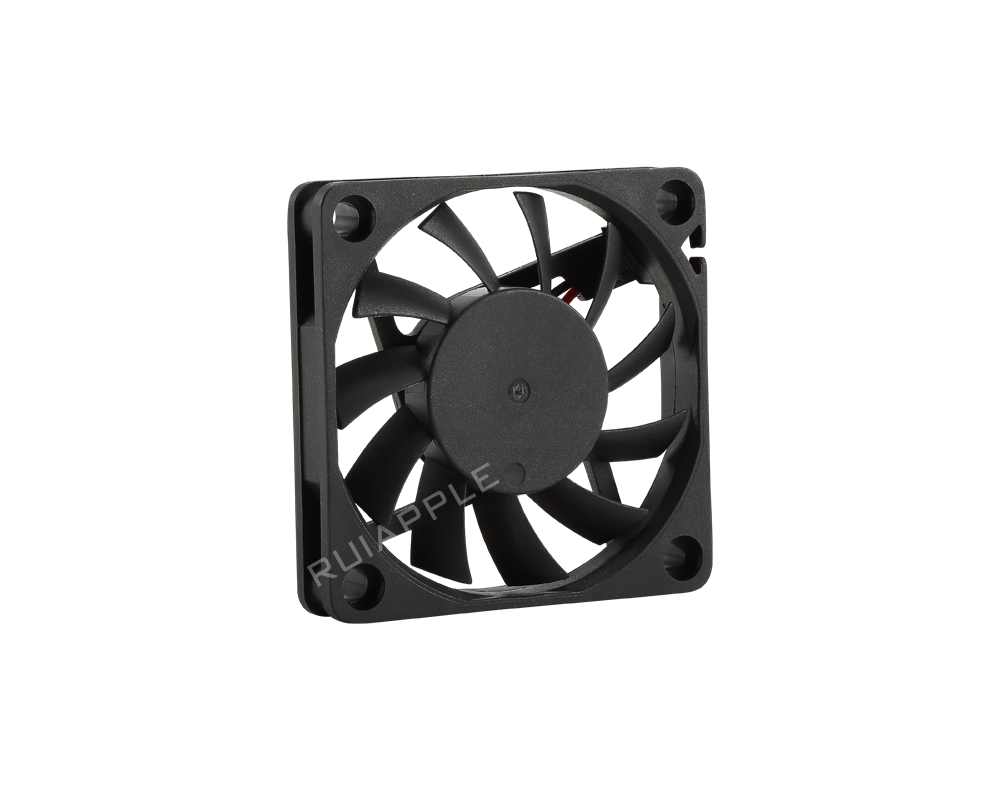

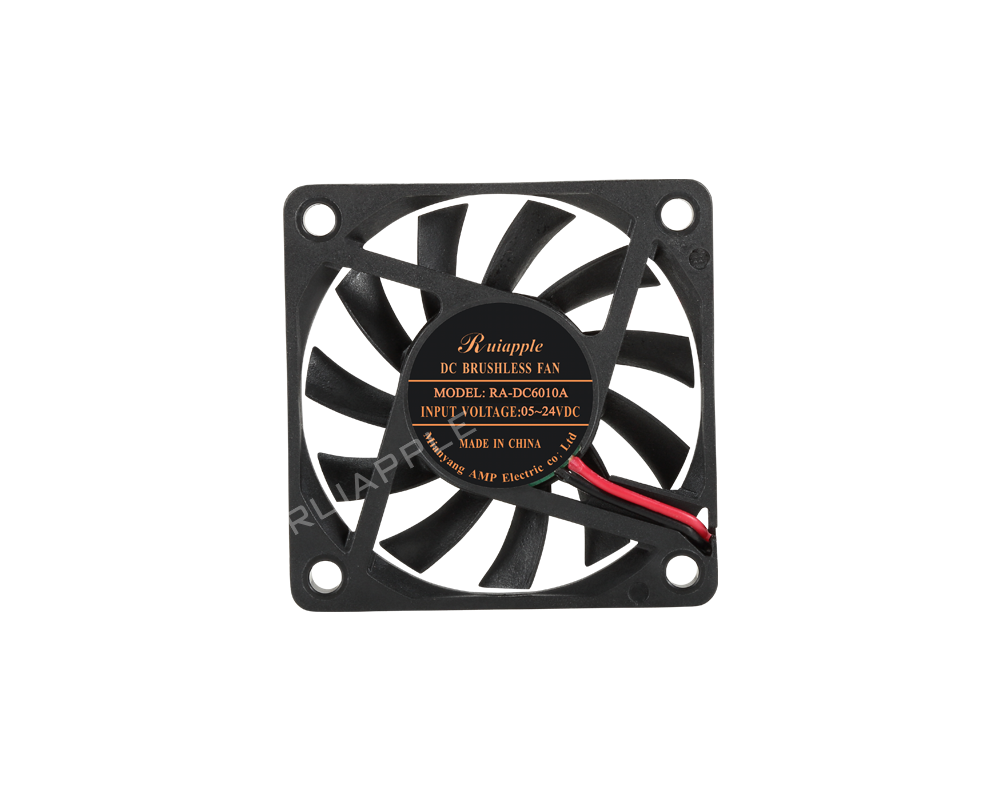

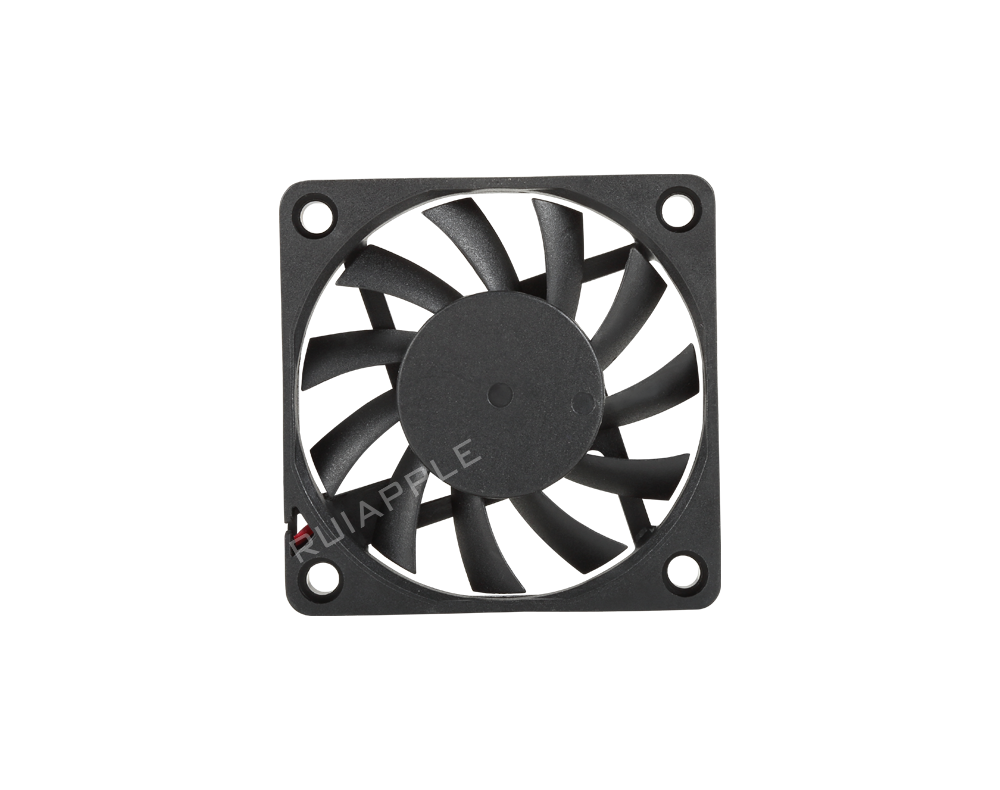

The 60x60x10mm DC axial fan (6010 fan) is designed for the efficient cooling needs of compact devices. With its slim 10mm thickness and strong airflow, this fan provides effective heat dissipation in space-constrained environments. The fan supports multiple voltage options (5V, 12V, 24V) and offers different bearing types (such as sleeve bearings, hydraulic bearings, and dual ball bearings) to meet the needs of various applications. Its wide speed range allows for high airflow, making it suitable for small electronic devices, computer cases, communication equipment, and other applications that require quiet, efficient cooling. Additionally, the fan is CE and FCC certified, complying with multiple international safety standards, ensuring reliability and durability under various working conditions.

Date Sheet
Detailed Parameters

Model: DC-6010

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Protection Performance

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

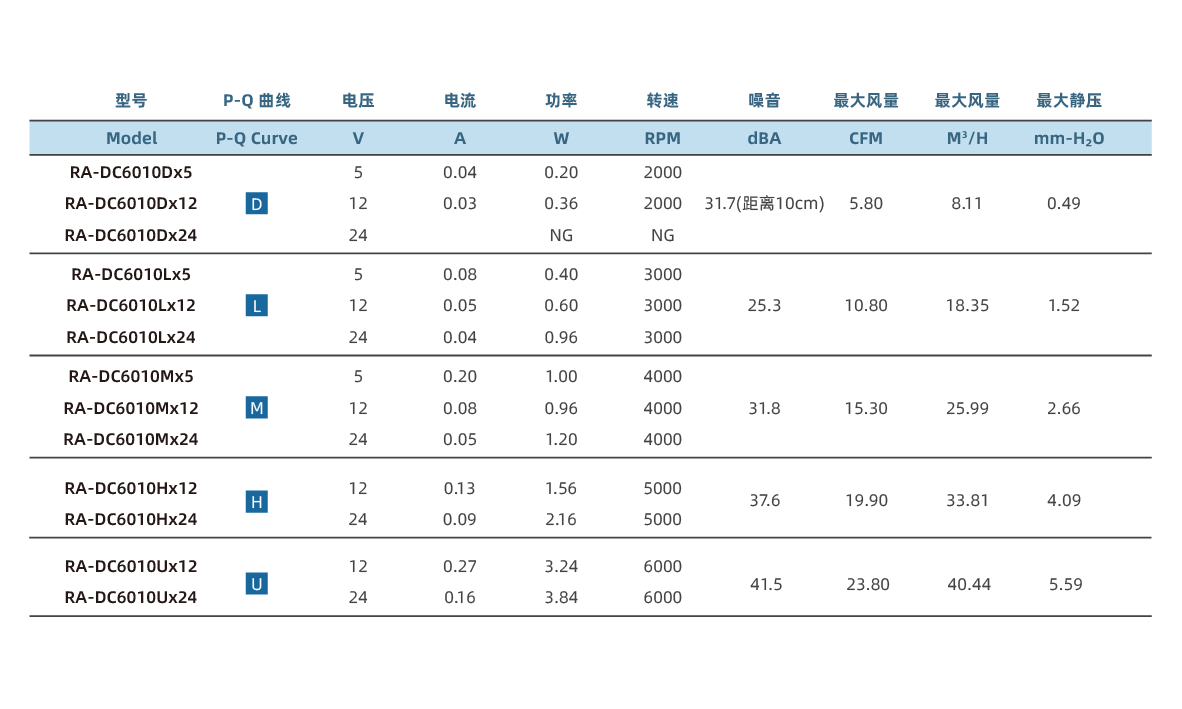

Performance Parameter

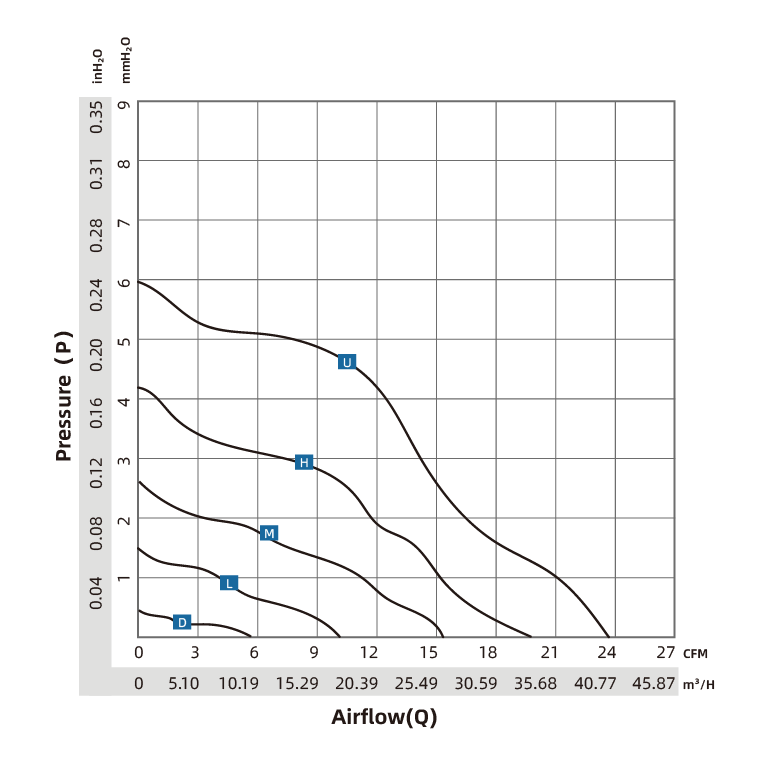

P-Q Curve Chart

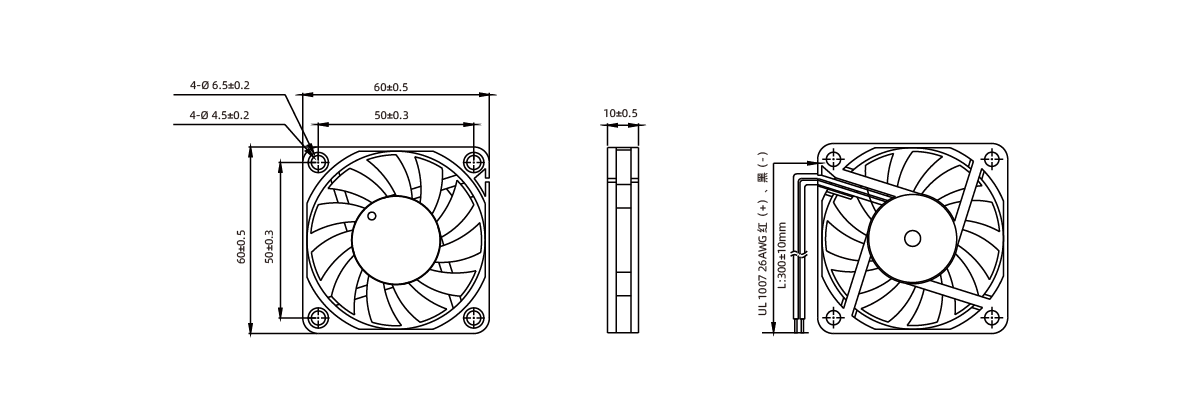

Drawing
