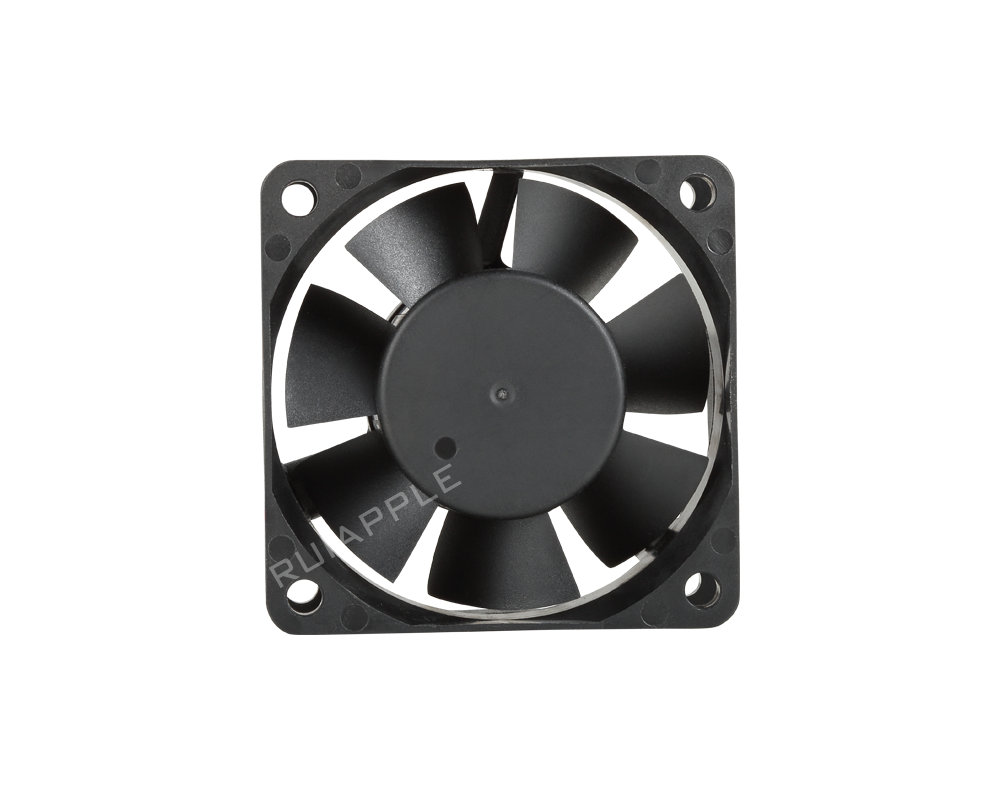

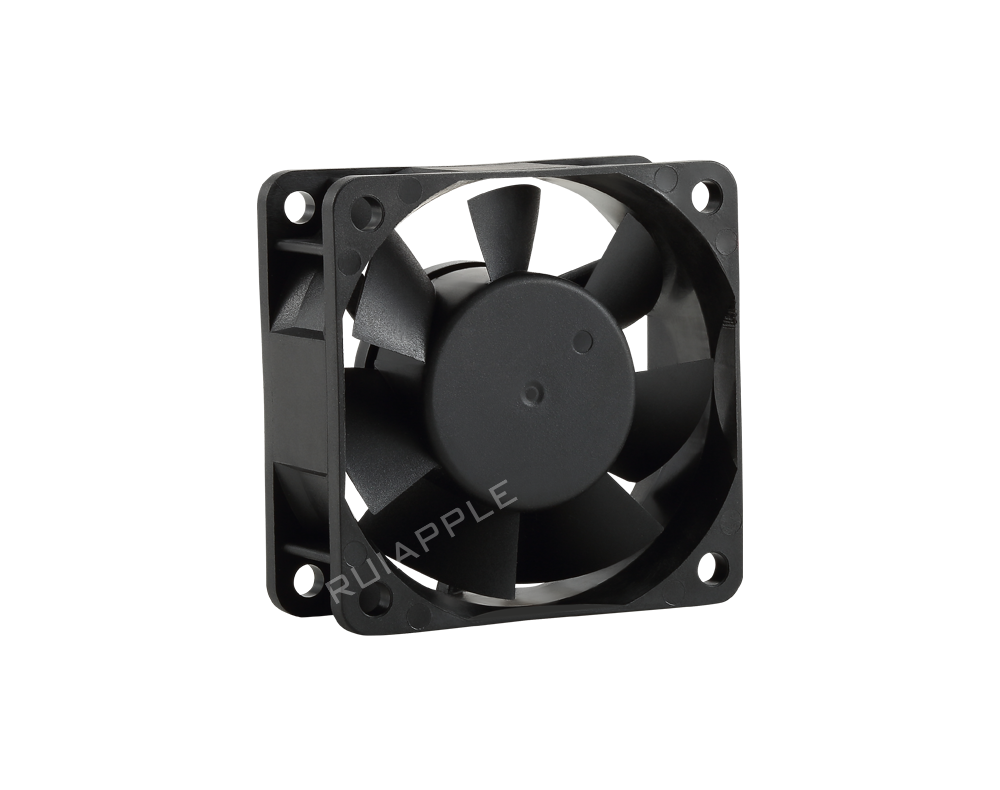

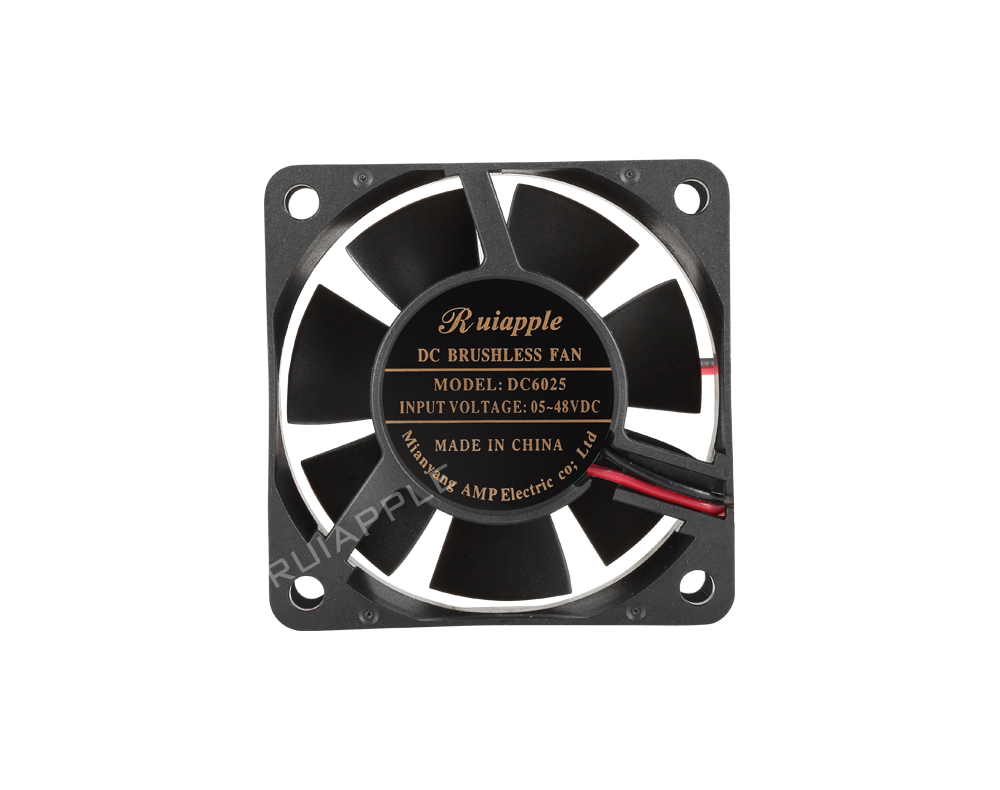

The 60x60x25mm DC axial fan is designed for efficient cooling, specifically built for compact devices requiring strong airflow. The fan operates at 12V, 24V, and 48V, with protection ratings up to IP68, making it ideal for use in communication equipment, industrial control systems, computer cases, and power modules. It offers various bearing options, including sleeve bearings, hydraulic bearings, and dual ball bearings, to meet different operational needs and extend its lifespan. The fan provides efficient cooling while maintaining low noise levels. It is certified by CE and UL, ensuring reliability and safety in harsh environments.

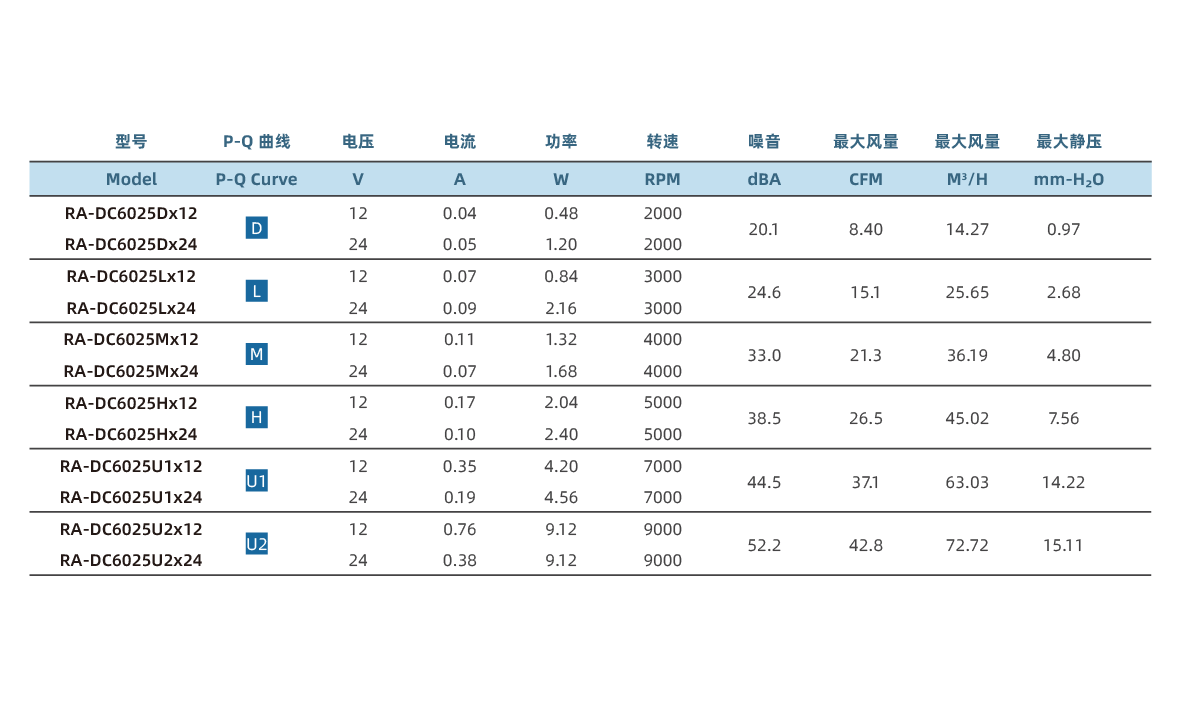

Date Sheet
Model: DC-6025
Fan Type: Axial Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
