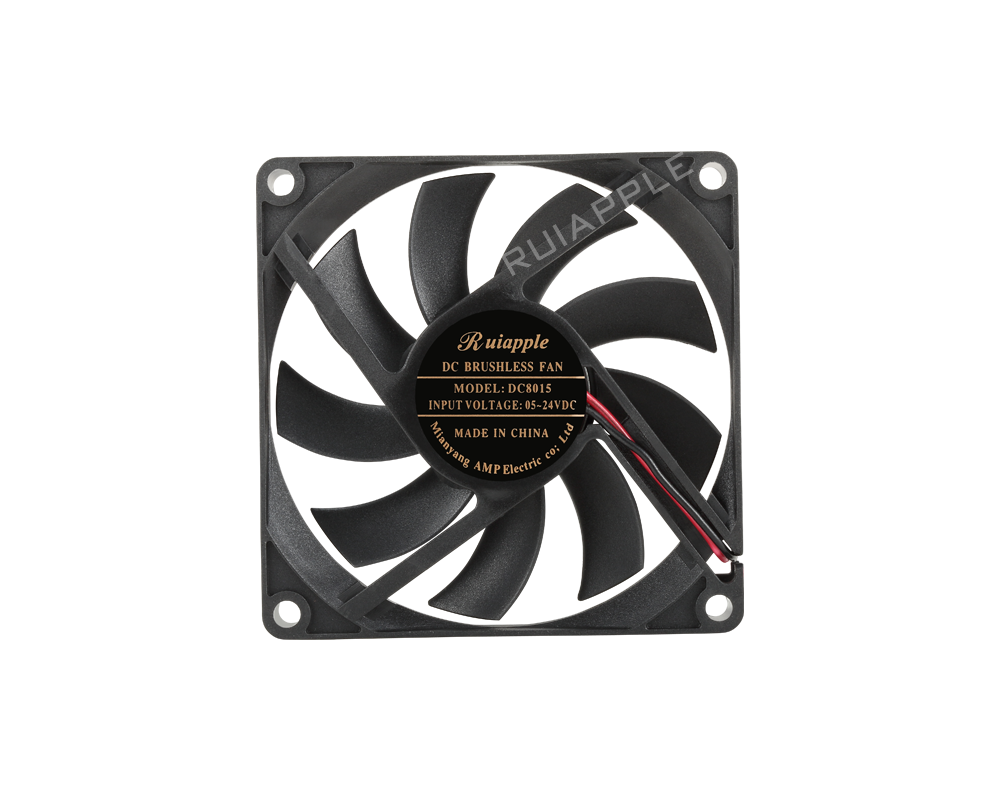

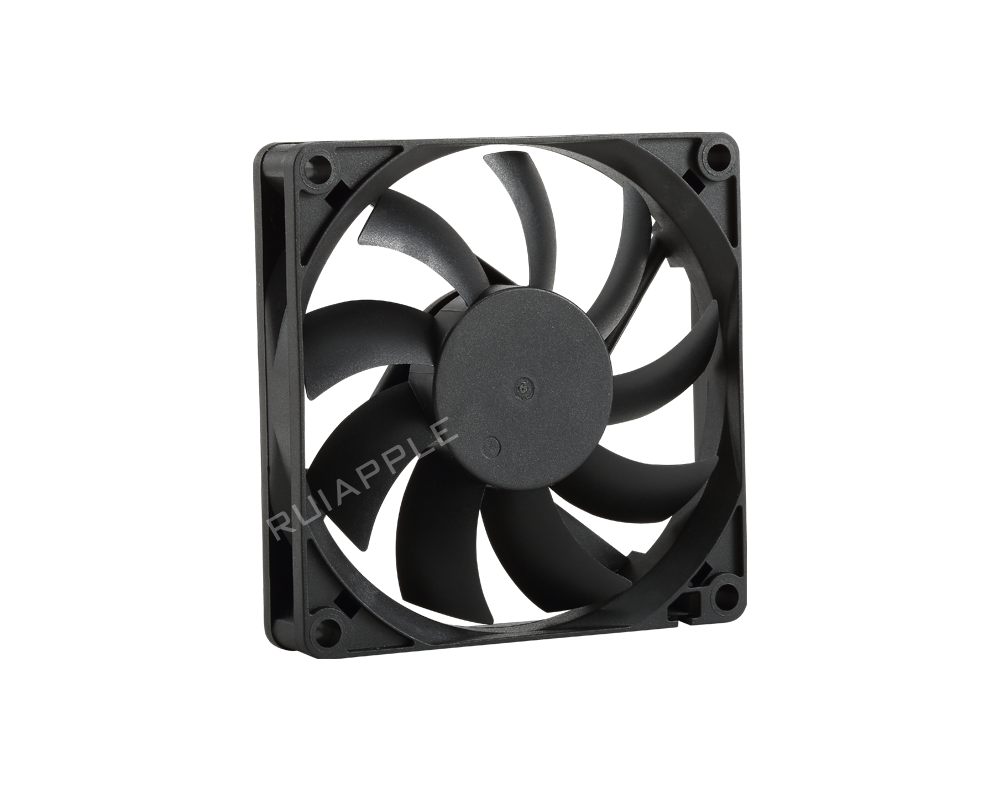

DC-8015 40.2CFM 38.5Pa 23.3Db
DESCRIPTION:

This 80x80mm DC axial fan is specifically designed for efficient cooling and ventilation, making it suitable for a wide range of industrial and commercial applications. The fan offers speed options from 2000 to 7000 RPM and comes with either dual ball bearings or oil-filled hydraulic bearing systems, ensuring long lifespan and reliability. It is highly effective at cooling high-power electronic devices, servers, communication equipment, and industrial control systems. Additionally, the fan features automatic restart protection and a durable design, supporting a wide voltage range (12V to 24V). It complies with multiple international certification standards, including RoHS and UL, making it ideal for use in demanding environments.

Date Sheet
Detailed Parameters

Model: DC-8015

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

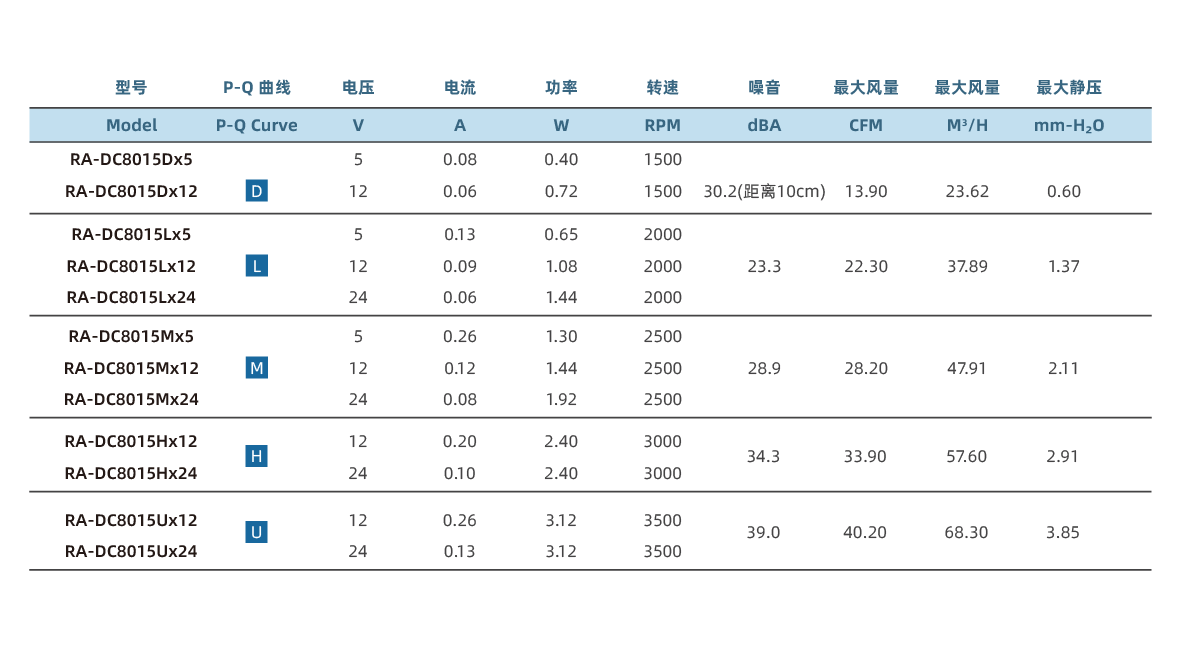

Performance Parameter

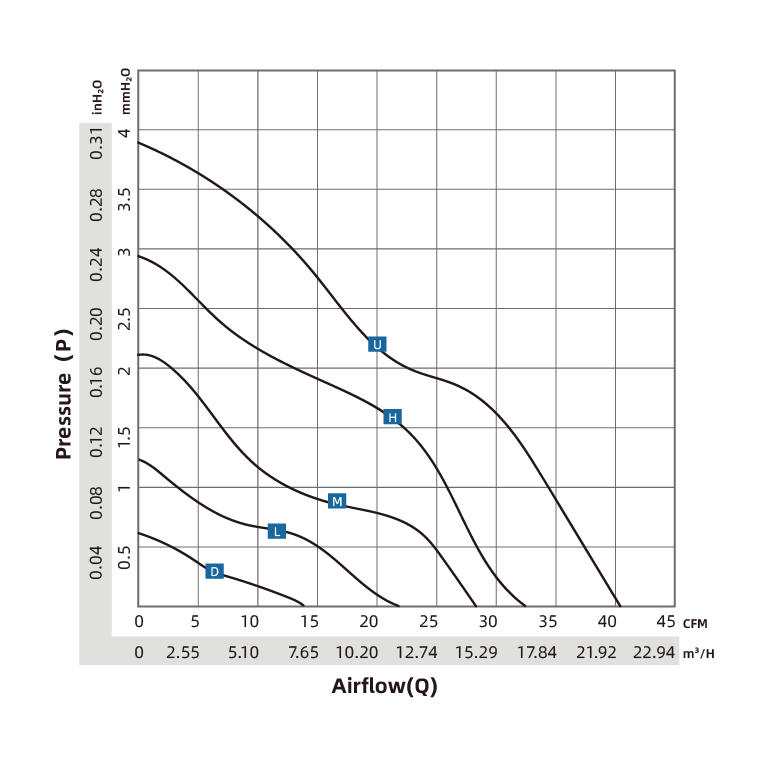

P-Q Curve Chart

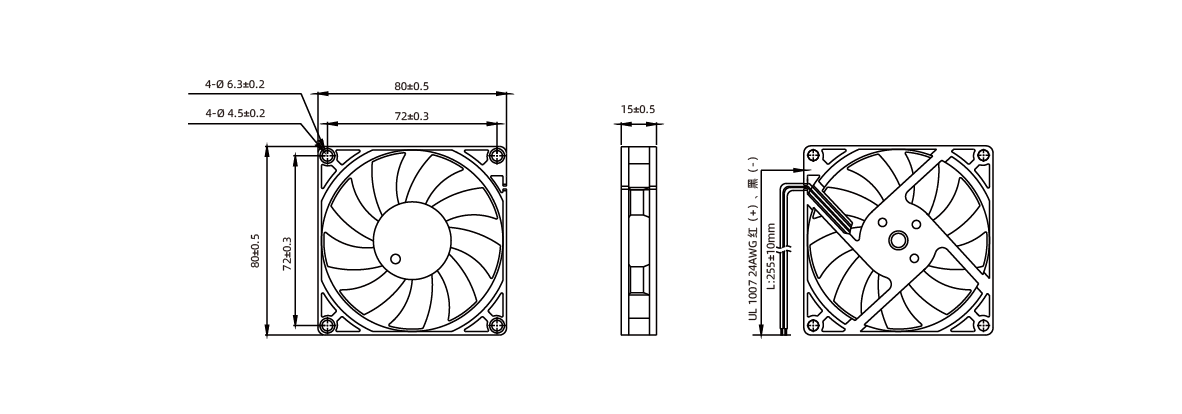

Drawing
