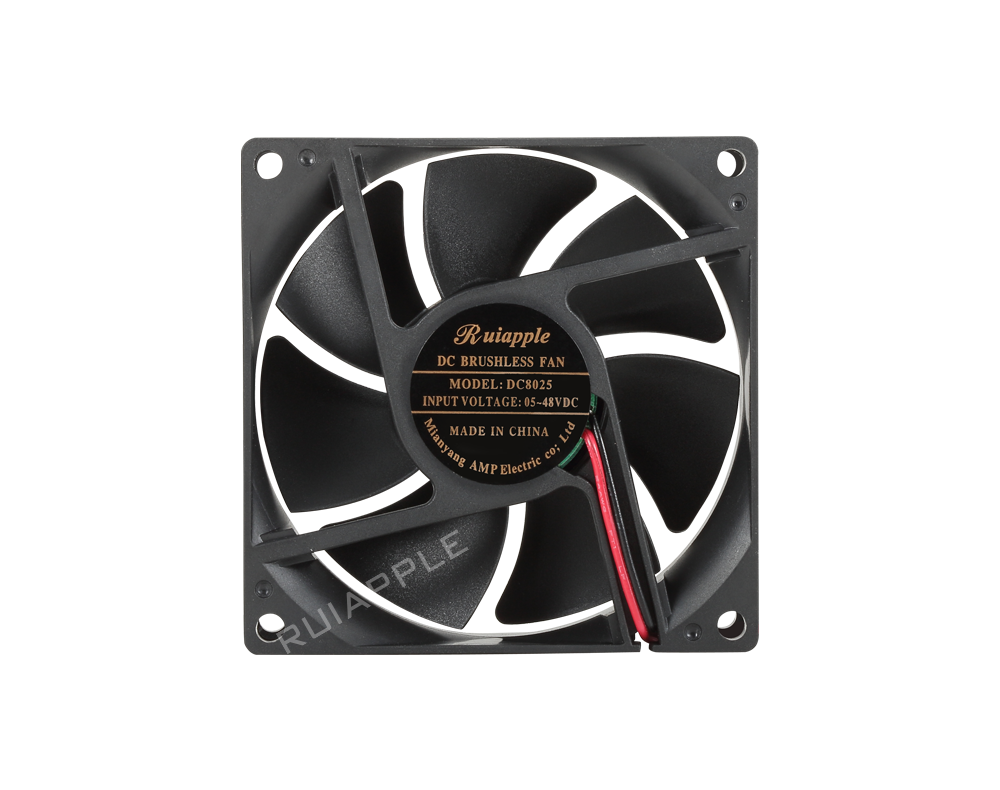

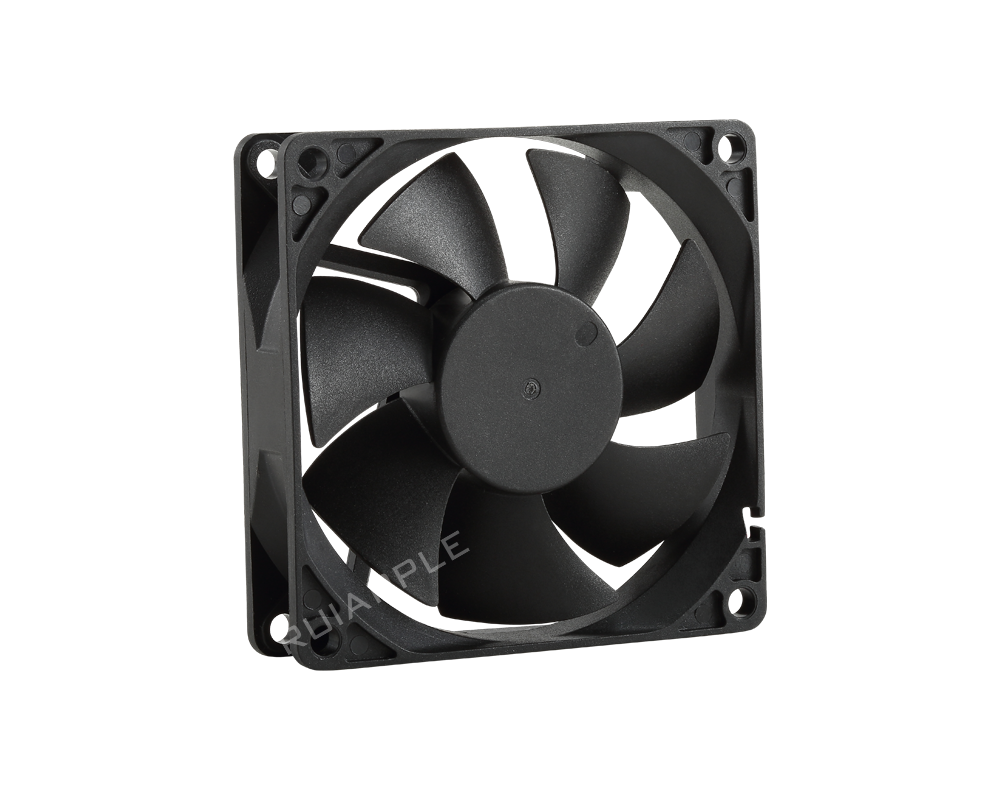

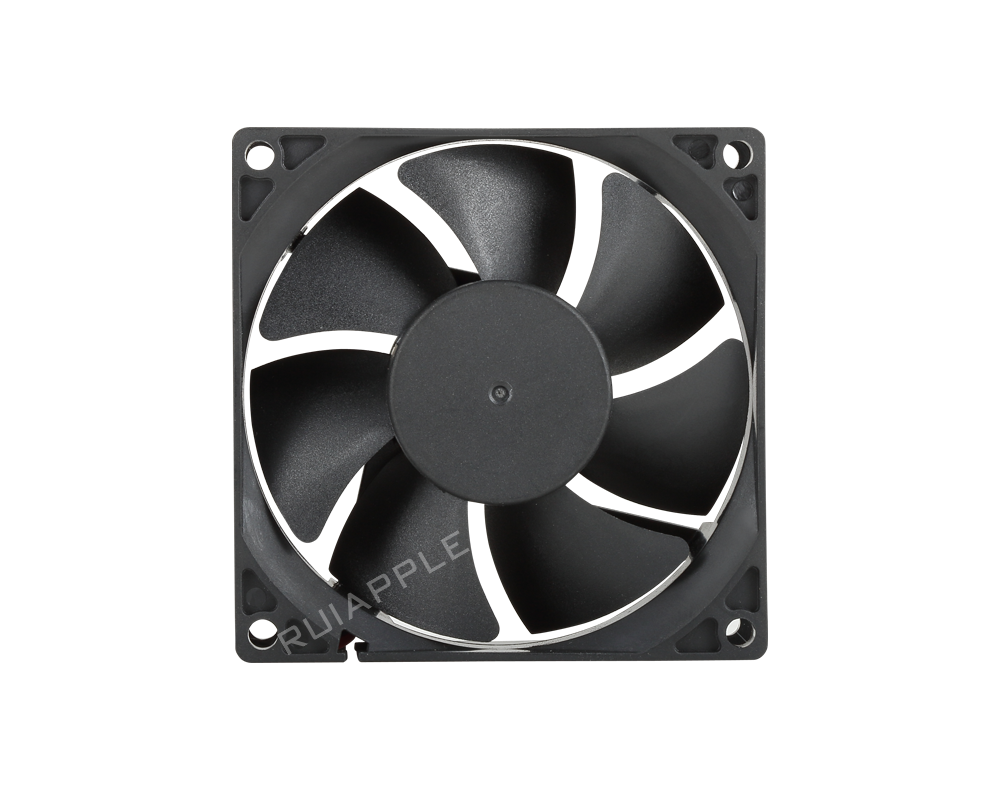

This 80x80mm DC axial fan is designed for efficient cooling and ventilation, making it suitable for a wide range of industrial and commercial applications. The fan offers speed options from 2000 to 7000 RPM and comes with either dual ball bearings or oil-filled hydraulic bearing systems. It can achieve an IP68 rating, ensuring long lifespan and stability. This fan is highly effective in cooling high-power electronic devices, servers, communication equipment, and industrial control systems. Additionally, it features automatic restart protection and a durable design, supporting a wide voltage range (12V to 24V). Compliant with RoHS, UL, and other international certification standards, it is ideal for use in demanding work environments.
Date Sheet
Model: DC-8025
Fan Type: Axial Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: BFG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
