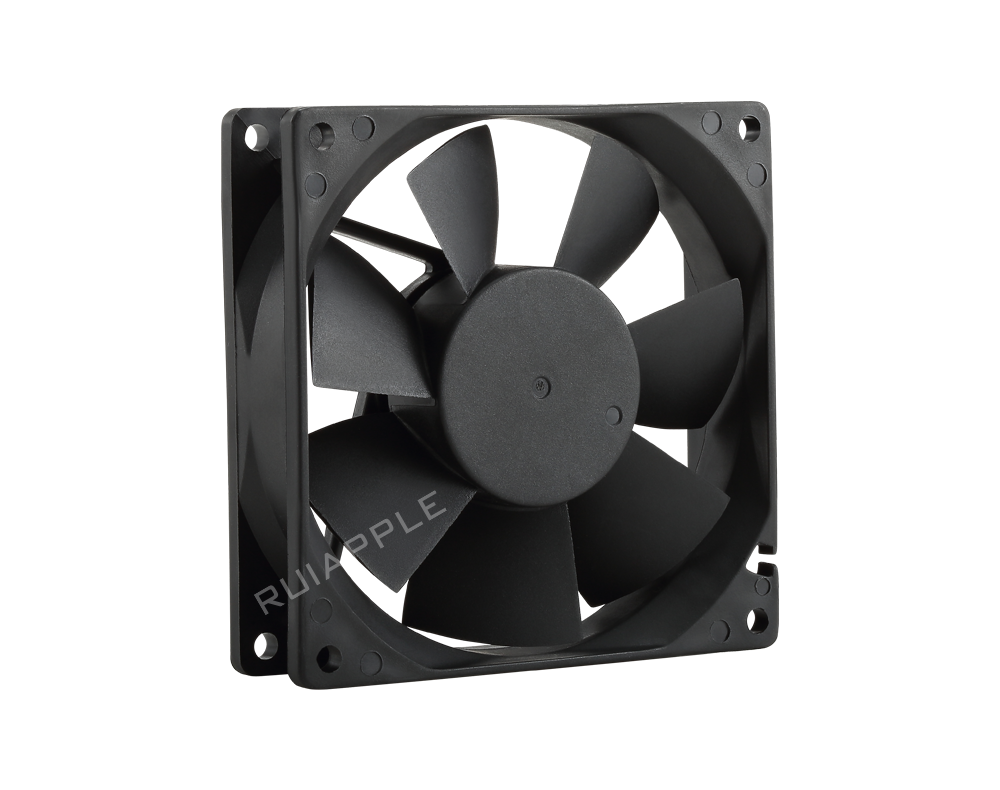

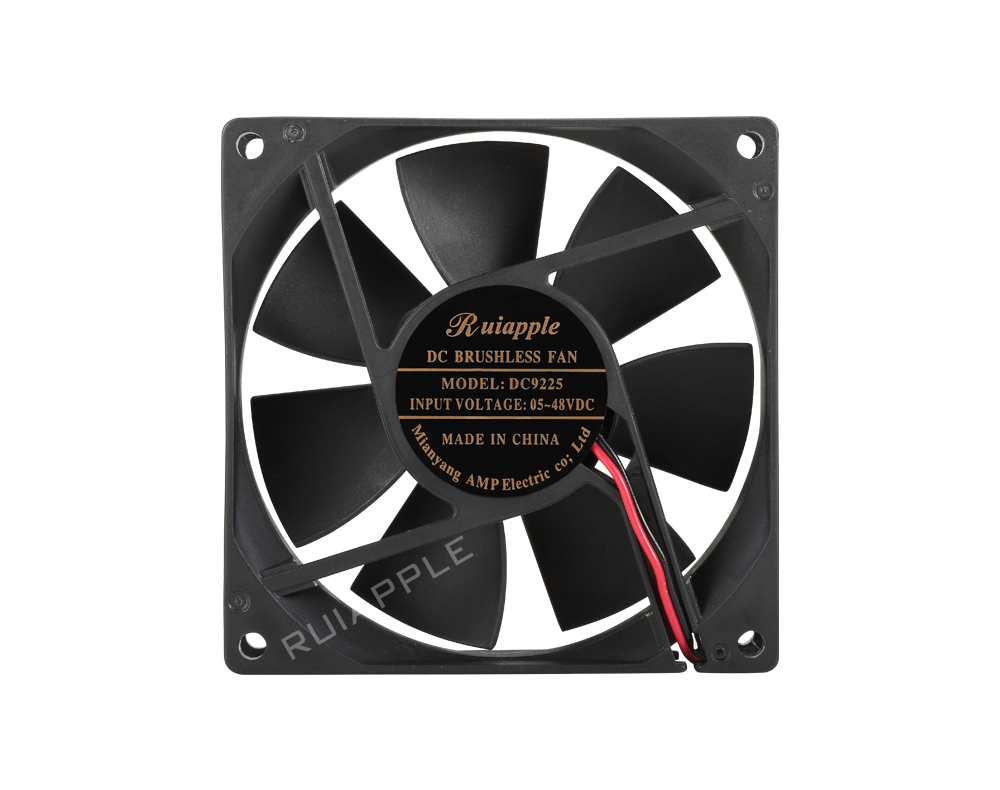

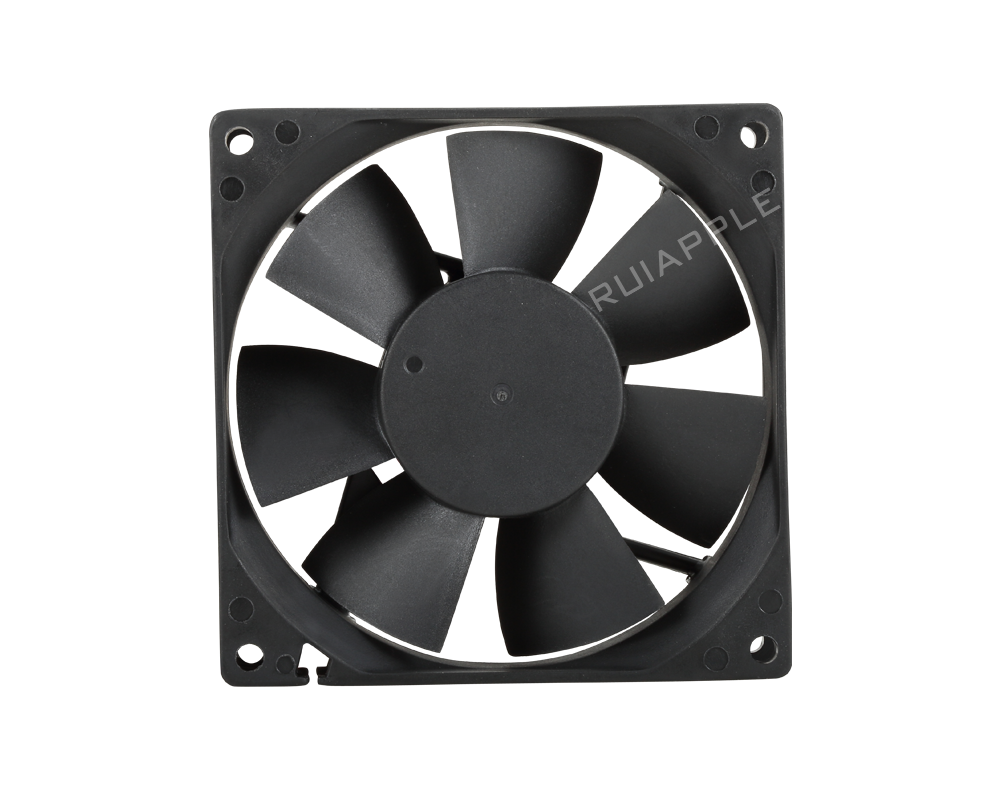

The 92x92x25mm DC axial fan is an efficient cooling solution specifically designed for industrial and electronic equipment. It provides strong airflow and static pressure, making it ideal for applications requiring effective heat dissipation, such as servers, communication equipment, industrial control systems, and electronic device cooling management. The fan supports 12V, 24V, and 48V voltage options. Additionally, it is designed for low noise and long lifespan, making it suitable for environments requiring continuous operation, such as data centers and factory equipment. The fan features a dual ball bearing structure, ensuring excellent durability and reliability.
Date Sheet
Model: DC-9225
Fan Type: Axial Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
