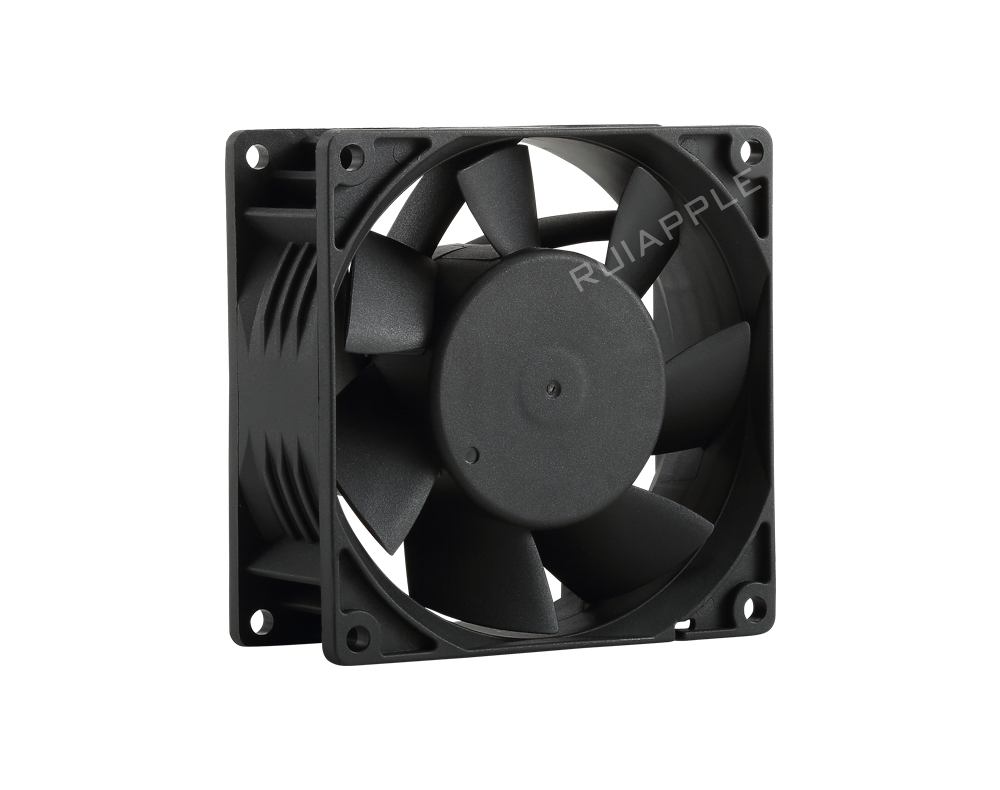

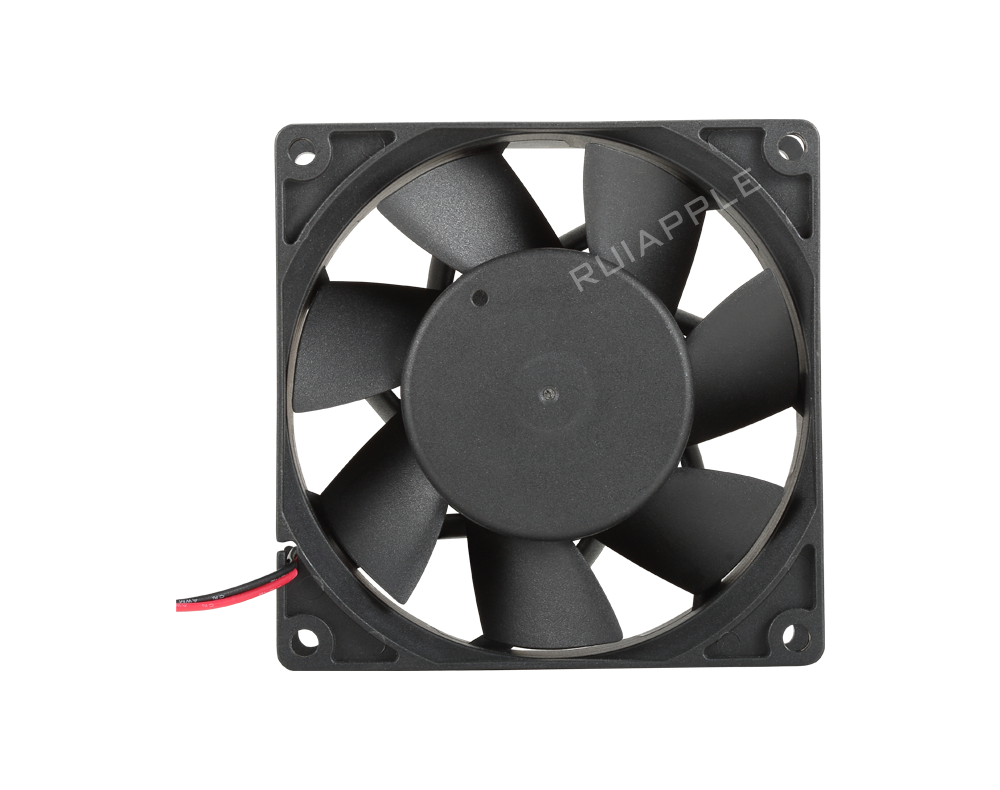

The 92x92x38mm DC axial fan is a high-performance cooling fan designed for industrial and electronic equipment, focusing on providing high airflow and static pressure. It is ideal for applications requiring powerful cooling, such as power modules, server cooling, communication equipment, industrial automation systems, and data centers. The fan supports multiple voltage options (12V, 24V, 48V), and its efficient airflow ensures stable operation even under heavy load conditions. Designed with dual ball bearings, it offers enhanced durability and a long lifespan, making it suitable for continuous use over extended periods. Additionally, the fan operates with low noise, ensuring efficient and reliable performance in demanding working environments.

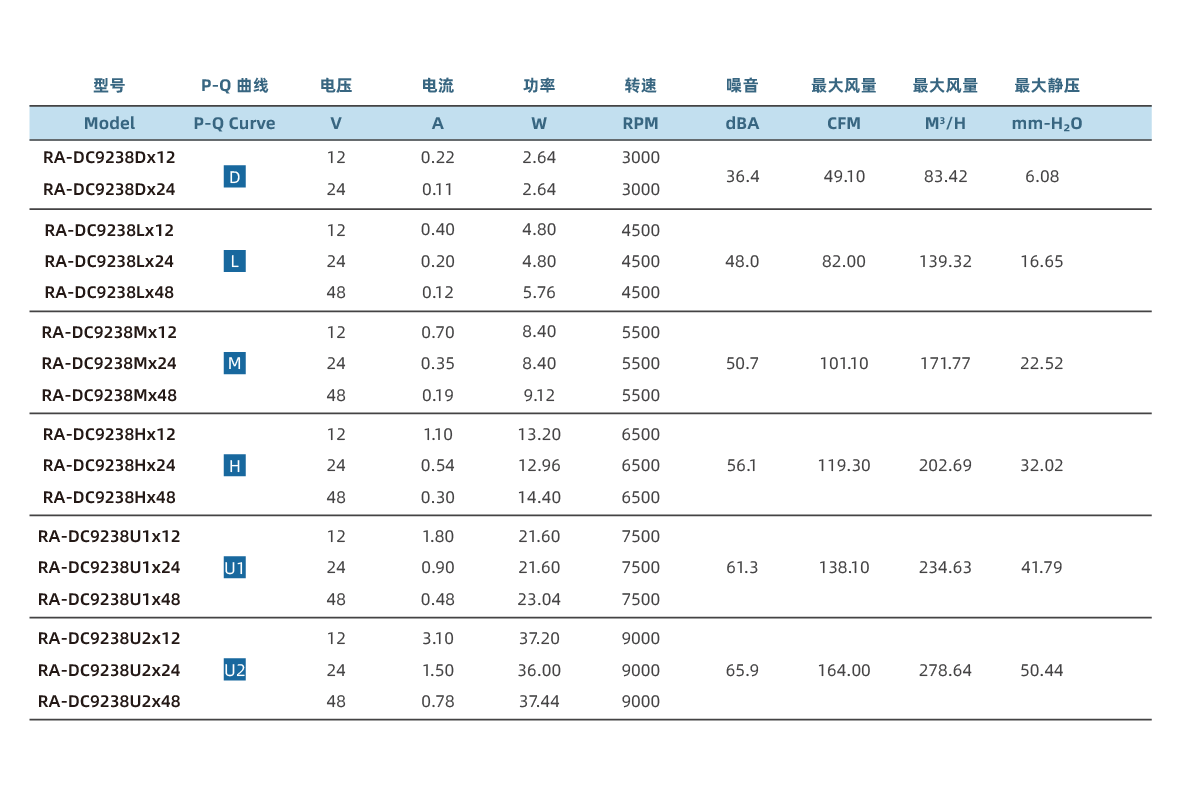

Date Sheet

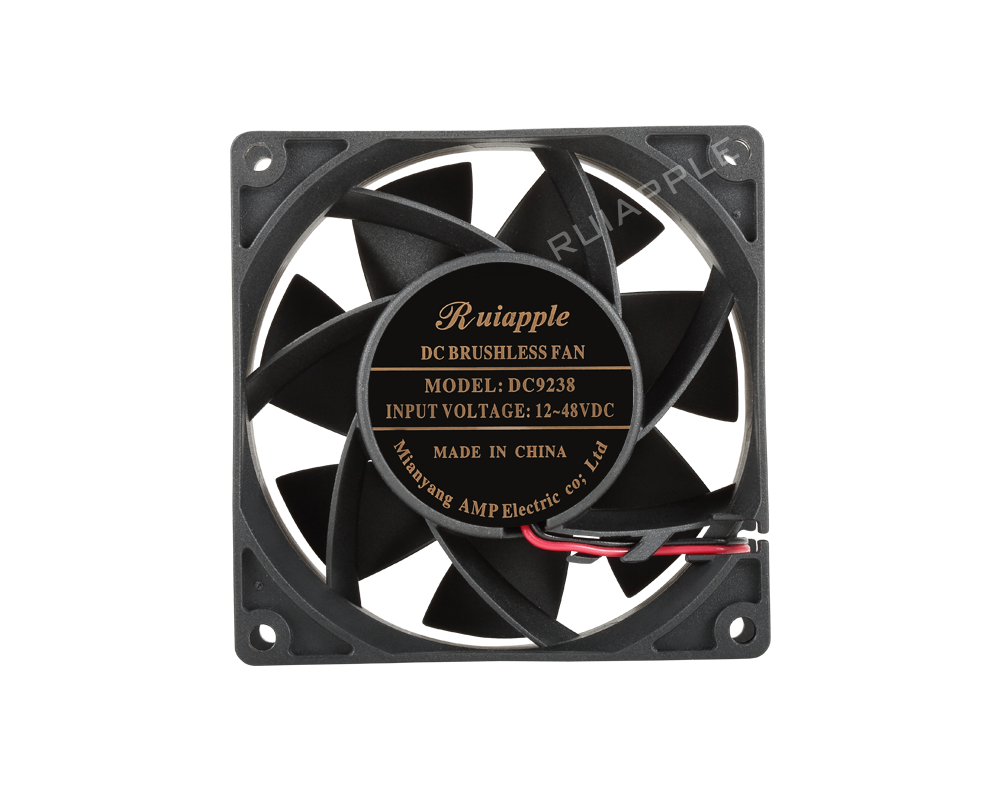

Model: DC-9238
Fan Type: Axial Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: Class B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
