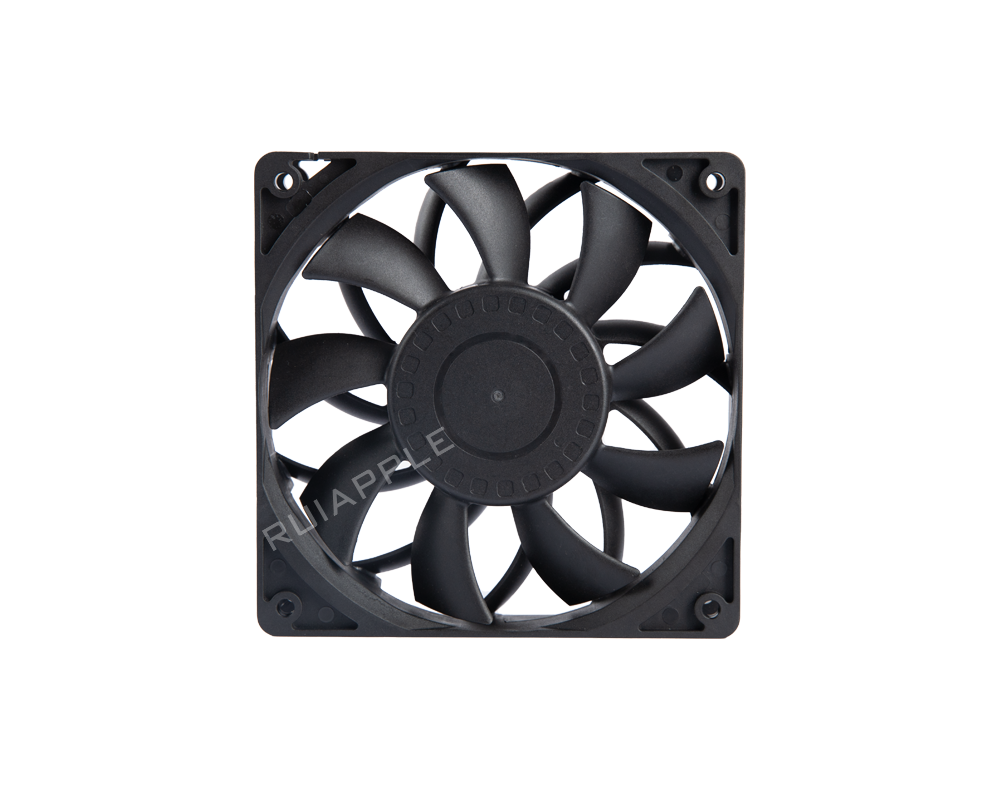

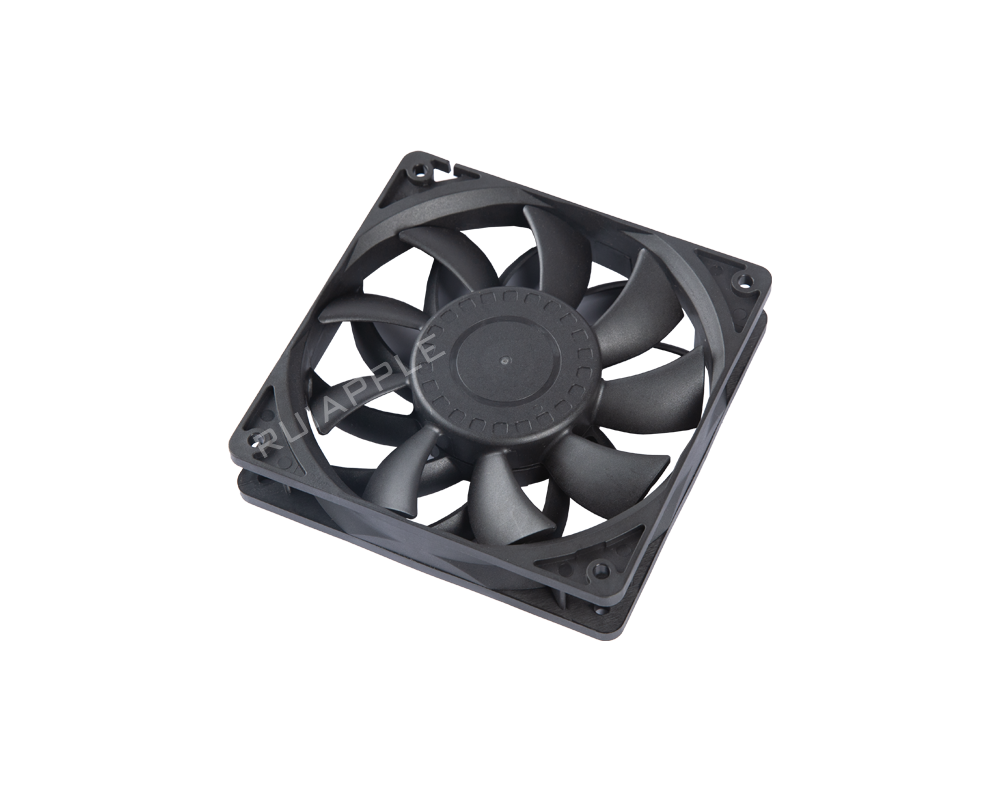

The 120x120x25mm booster-type DC axial fan is a high-performance fan designed to meet the efficient cooling needs of industrial and commercial equipment. It provides powerful airflow and high static pressure, making it ideal for demanding cooling environments such as servers, communication equipment, industrial automation systems, and data centers. These fans support multiple voltage options (12V, 24V, 48V) and feature a dual ball bearing structure, ensuring a lifespan of up to 70,000 hours. The high static pressure design effectively addresses the cooling requirements of high-density electronic devices, ensuring stable operation under heavy loads. The fan housing and blades are made from flame-retardant materials that comply with UL94V-0 standards, ensuring safety in high-temperature and complex environments.
Date Sheet
Model: DC-12025A
Fan Type: Axial Fan
Motor: Brushless DC Motor
Bearing Type: Ball/Oil/Sleeve, Optional
Blade Material: PBT
Certification: UL CE CCC
Control Mode: PWM, VSP, Temperature Control, Constant Speed
Protection Performance: Lock Protection, IP Maximum IP68
Output Signal: FG RD LD
Insulation Class: B
Insulation Resistance: 10MΩ/500V DC
Voltage Strength: 2Min/500V AC/5mA
Humidity Range: 20%-85%
Operating Temperature: -10℃/+60℃
Maximum of Life Expectancy: 70000 Hours
