DC-12038 175.4CFM 223.5Pa 35.7Db
DESCRIPTION:

The 120x120x38mm DC axial fan is a high-efficiency, durable cooling solution widely used in industrial and commercial equipment. The fan supports multiple voltage options (12V, 24V, 48V) to meet various cooling needs. Its dual ball bearing design ensures a lifespan of up to 70,000 hours, making it ideal for environments requiring continuous operation, such as servers, communication equipment, industrial automation systems, and data centers. The fan offers high airflow with low noise, ensuring effective cooling while minimizing noise interference. The frames and blades are made from flame-retardant materials that comply with UL94V-0 standards, ensuring safety.

Date Sheet
Detailed Parameters

Model: DC-12038

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

Performance Parameter

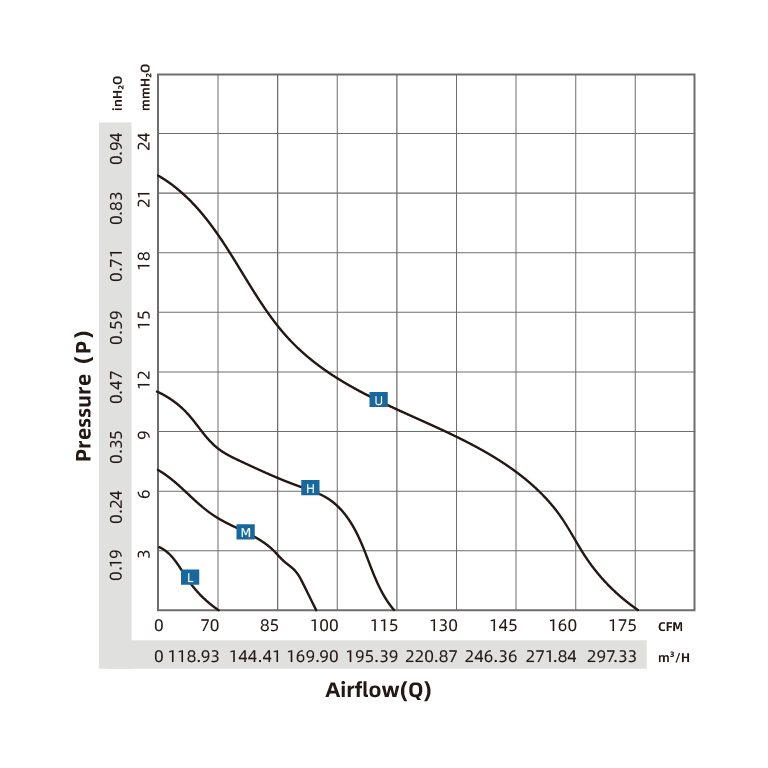

P-Q Curve Chart

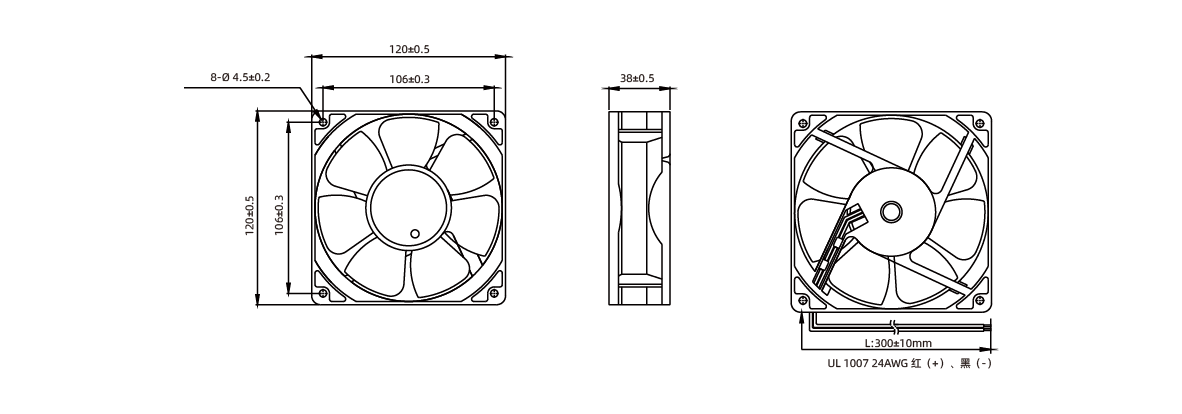

Drawing
