DC-3007 3.92CFM 50.8Pa 21.1Db
DESCRIPTION:

The 30x30x7mm DC axial fan is a high-performance cooling component specifically designed for small electronic devices and compact industrial applications. With its 30x30mm size, it provides powerful airflow in limited spaces, ensuring stable operation of equipment under high load or in high-temperature environments. The fan features a brushless DC motor, offering low power consumption, low noise, and long lifespan, making it ideal for use in wireless charging systems, LiDAR, PCB heatsinks, and other confined spaces. Additionally, the fan complies with various international safety certifications, such as CE and RoHS, and supports multiple operating voltages to meet the demands of different applications.

Date Sheet
Detailed Parameters

Model: DC-3007

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

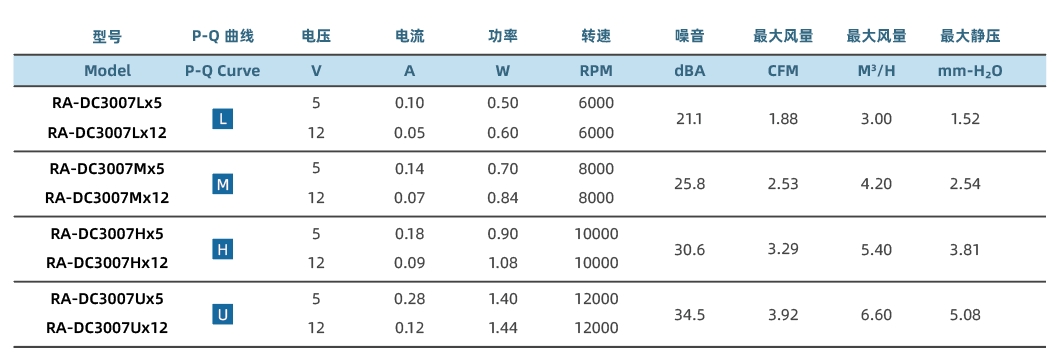

Performance Parameter

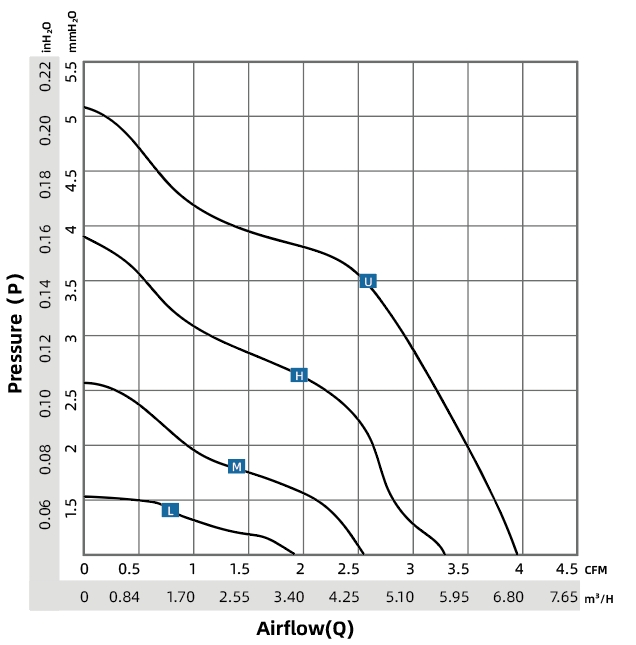

P-Q Curve Chart

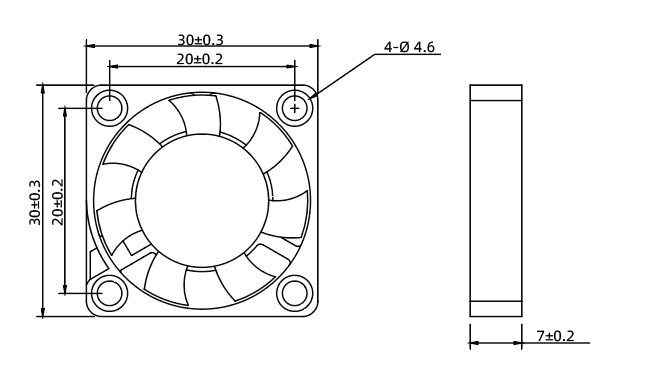

Drawing
