DC-6020 29.5CFM 119.5Pa 22.5Db
DESCRIPTION:

The 60x60x20mm DC axial fan is designed for efficient cooling, specifically built for compact devices requiring strong airflow. The fan operates at 12V, 24V, and 48V, with protection ratings up to IP68, making it ideal for communication equipment, industrial control systems, computer cases, and power modules. It offers various bearing options, including sleeve bearings, hydraulic bearings, and dual ball bearings, to meet different operational needs and extend its lifespan. The fan provides efficient cooling while maintaining low noise levels. This product is CE and UL certified, ensuring reliability and safety in harsh environments.

Date Sheet
Detailed Parameters

Model: DC-6020

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

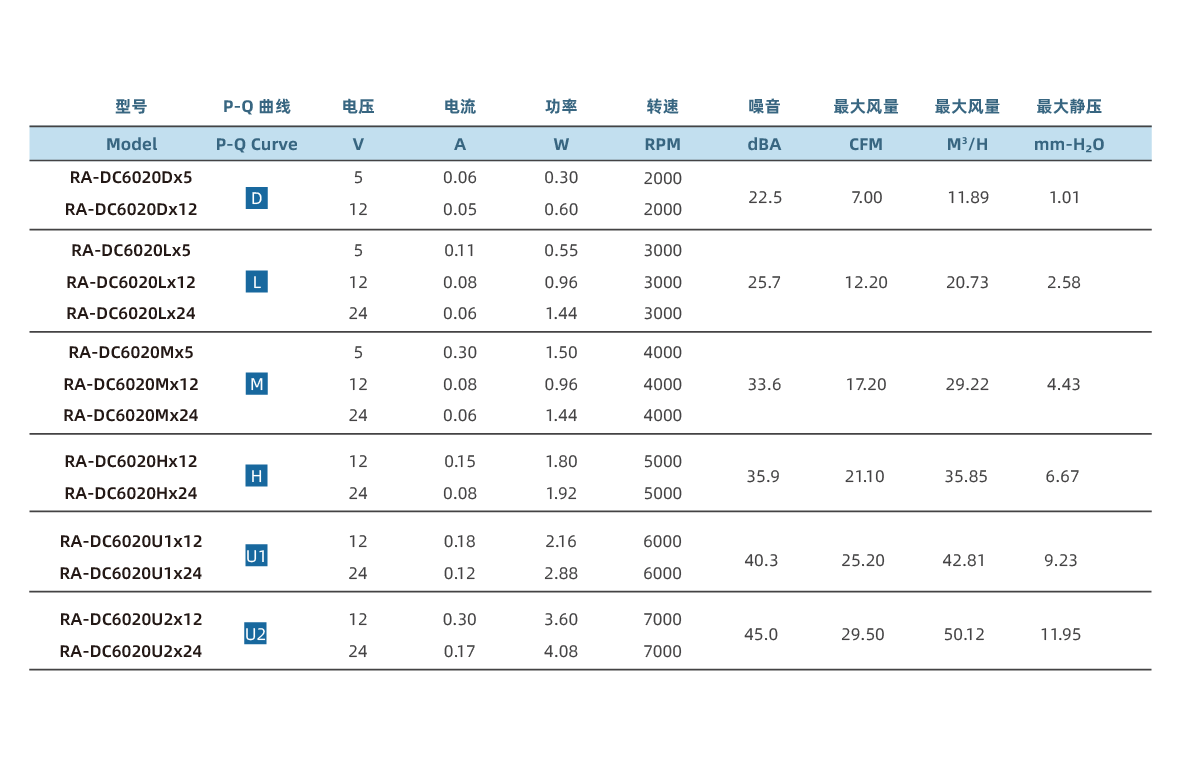

Performance Parameter

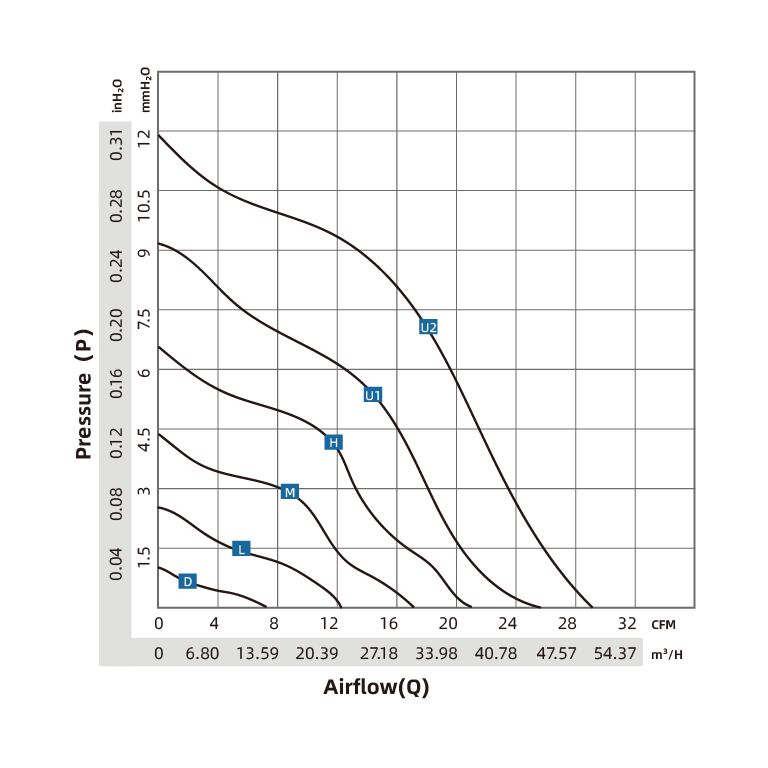

P-Q Curve Chart

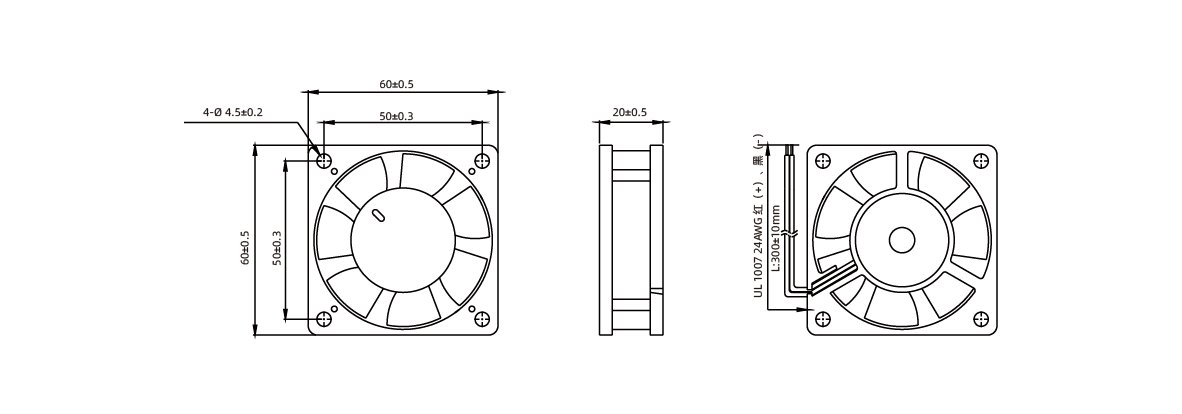

Drawing
