DC-7025 49.6CFM 106.7Pa 31.0Db
DESCRIPTION:

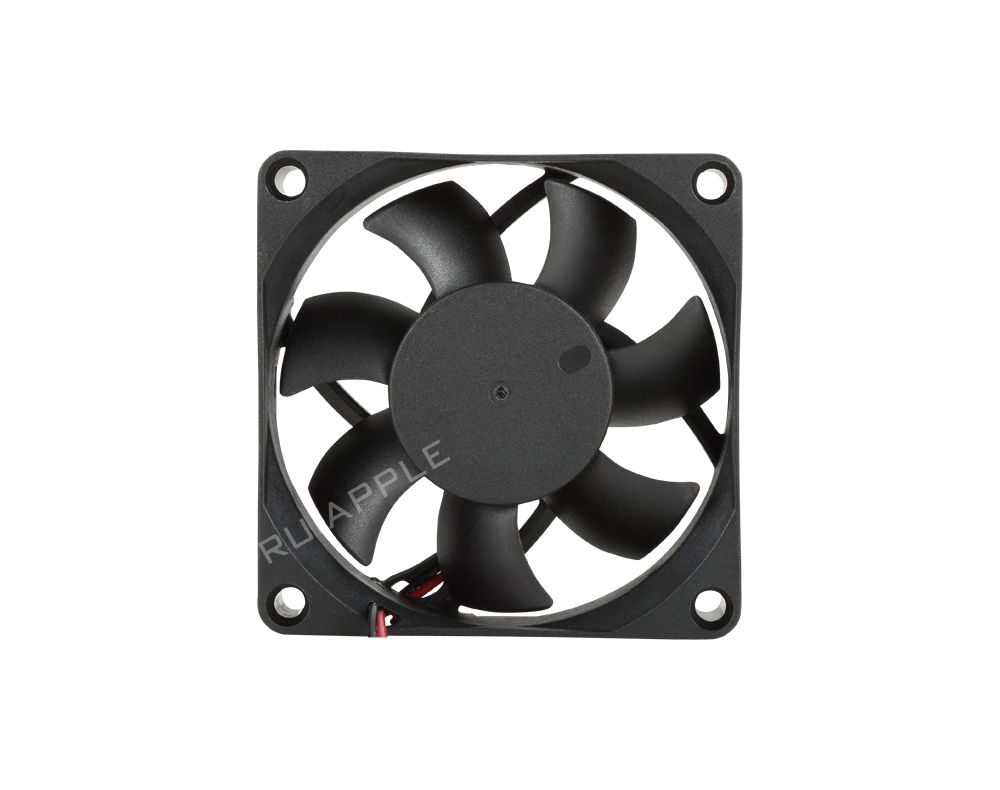

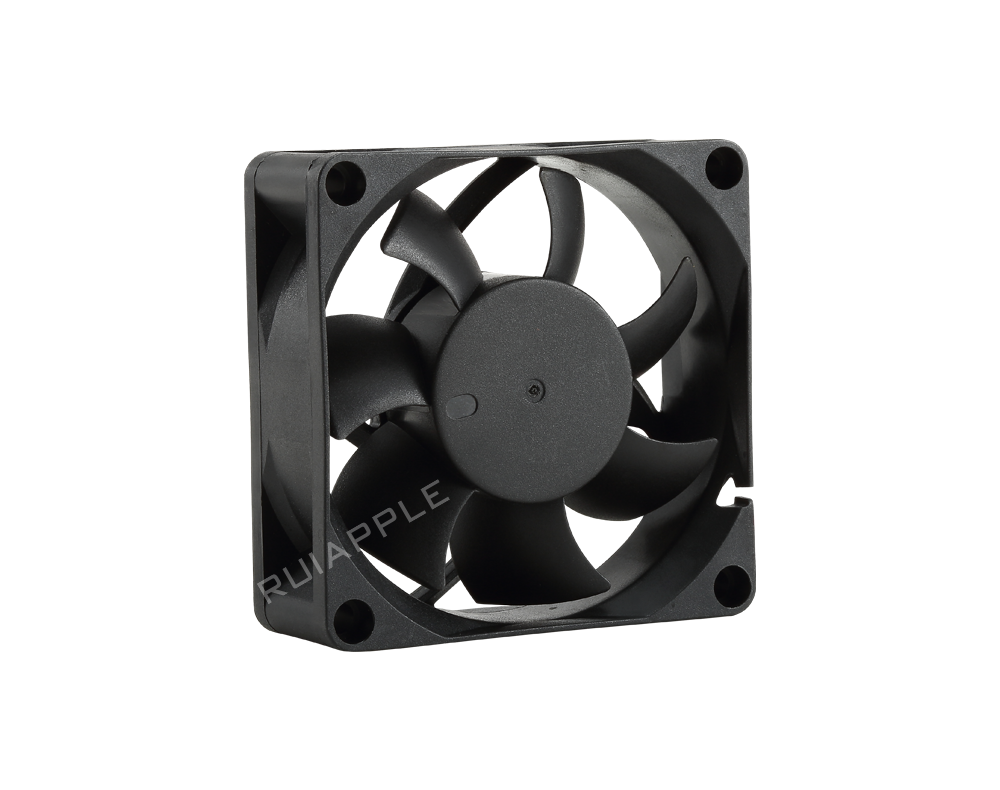

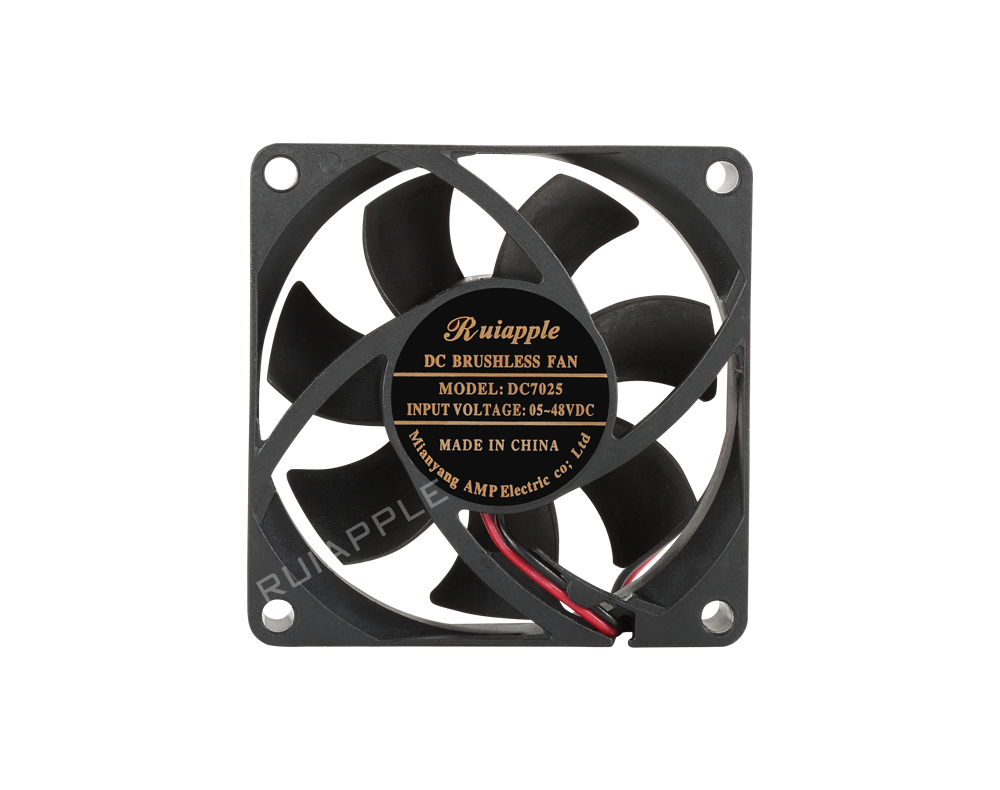

This 70x70x25mm DC axial fan is the high-performance cooling solution designed for applications requiring high airflow and static pressure. The fan features either dual ball bearings or oil-bearing systems and supports operating voltages from 5V to 24V, delivering excellent cooling performance and long lifespan. It is with speeds reaching up to 5100 RPM, it is ideal for use in IT and communication equipment, medical devices, and industrial applications where efficient heat dissipation is essential. Additionally, the fan offers exceptional durability and reliability, complies with RoHS standards, and is CE certified, ensuring stable operation in various harsh environments.

Date Sheet
Detailed Parameters

Model: DC-7025

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

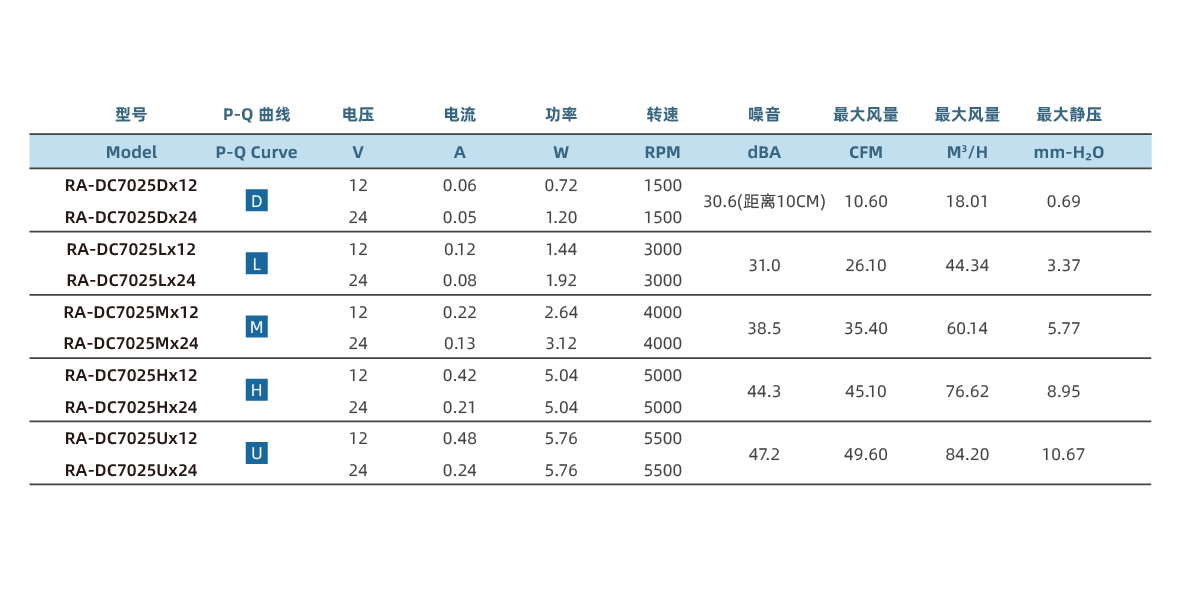

Performance Parameter

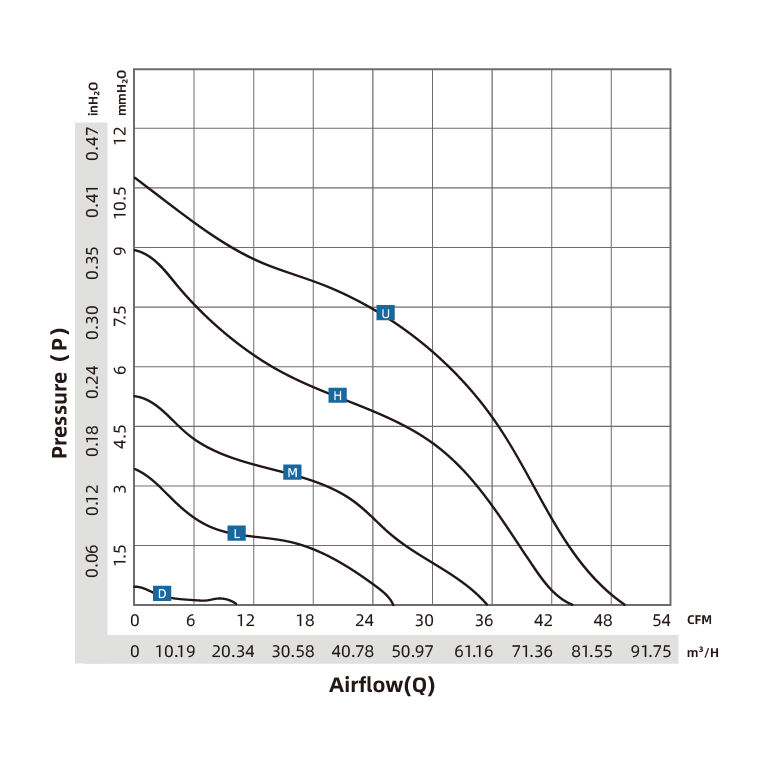

P-Q Curve Chart
Drawing
