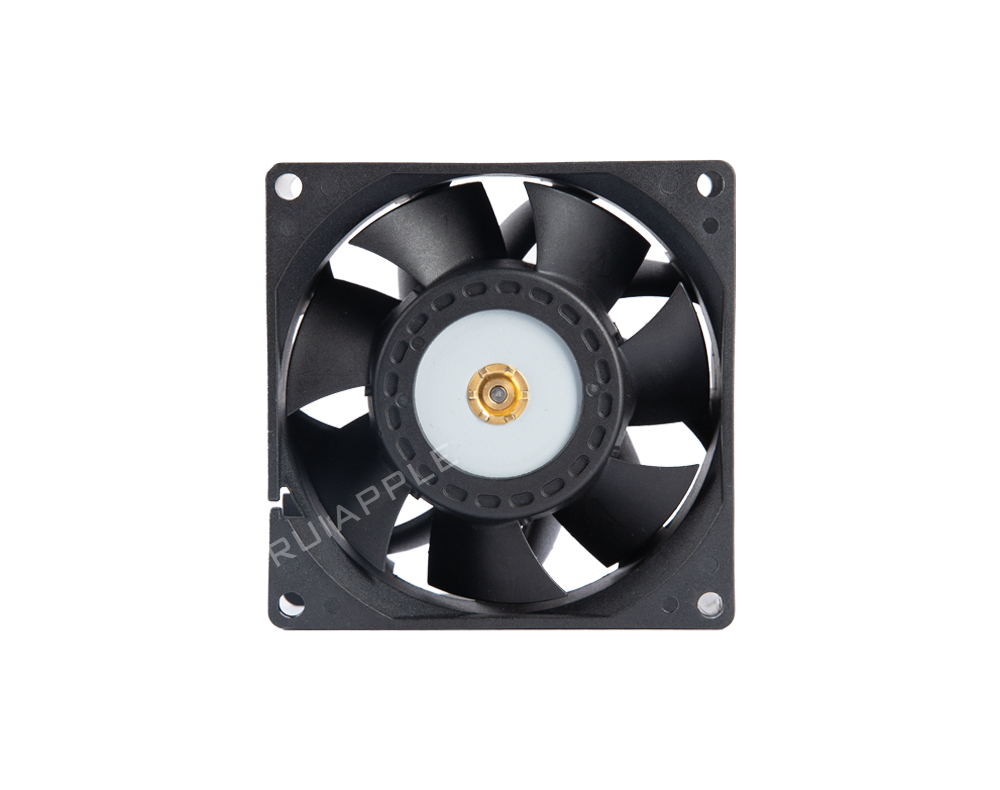

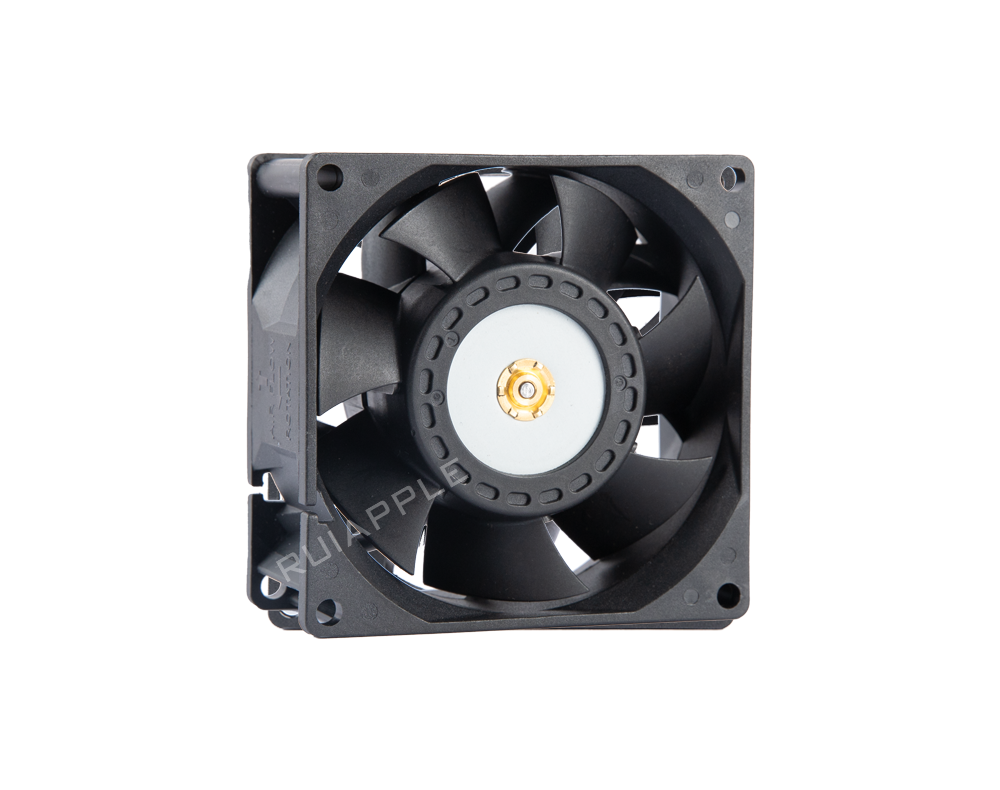

DC-8038A 111.4CFM 559.5Pa 46.6Db
DESCRIPTION:

The 80x80x38mm DC axial fan is the high-performance cooling solution designed for industrial and commercial applications requiring high airflow and static pressure. The fan offers multiple voltage options (12V, 24V, 48V) and can operate at speeds of up to 12,000 RPM, providing maximum airflow and static pressure. This makes it ideal for cooling high-density electronic devices, battery modules, heat dissipation modules, industrial automation systems, communication equipment, and server cooling. The fan features a dual ball bearing design with a lifespan of up to 70,000 hours, and its IP67 rating ensures durability and stability in harsh environments. Compared to the 8038 model, this fan provides higher airflow and static pressure, and it is UL certified.

Date Sheet
Detailed Parameters

Model: DC-8038A

Fan Type: Axial Fan

Motor: Brushless DC Motor

Bearing Type: Ball/Oil/Sleeve, Optional

Blade Material: PBT

Certification: UL CE CCC

Control Mode: PWM, VSP, Temperature Control, Constant Speed

Protection Performance: Lock Protection, IP Maximum IP68

Output Signal: FG RD LD

Insulation Class: B

Insulation Resistance: 10MΩ/500V DC

Voltage Strength: 2Min/500V AC/5mA

Humidity Range: 20%-85%

Operating Temperature: -10℃/+60℃

Maximum of Life Expectancy: 70000 Hours

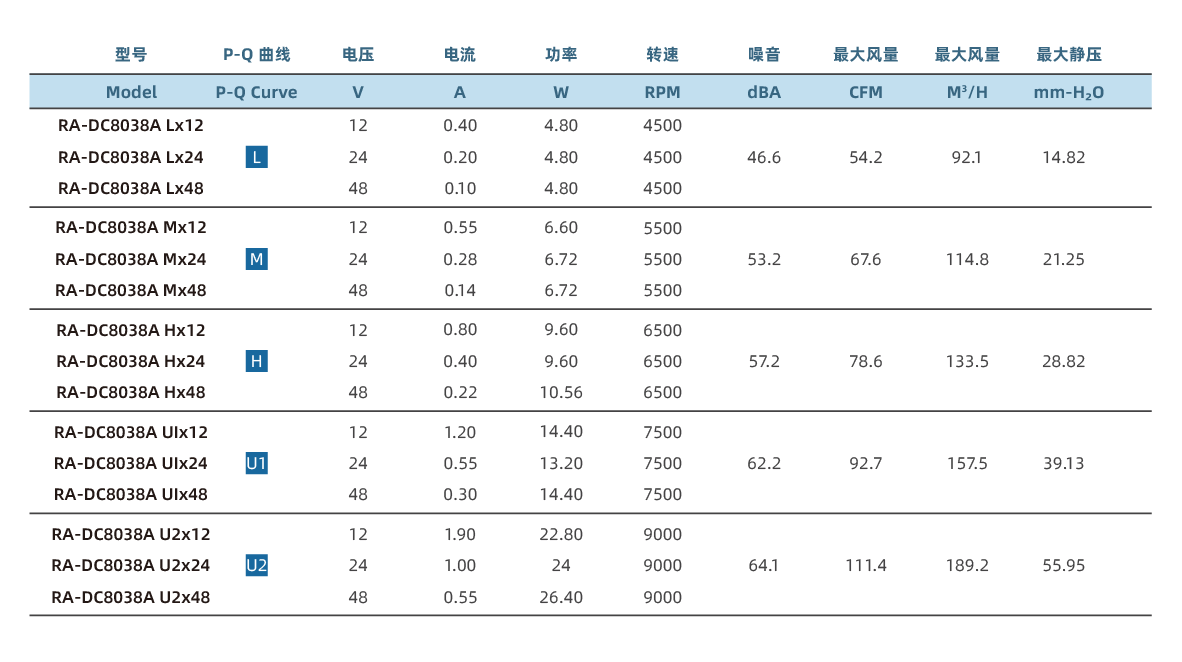

Performance Parameter

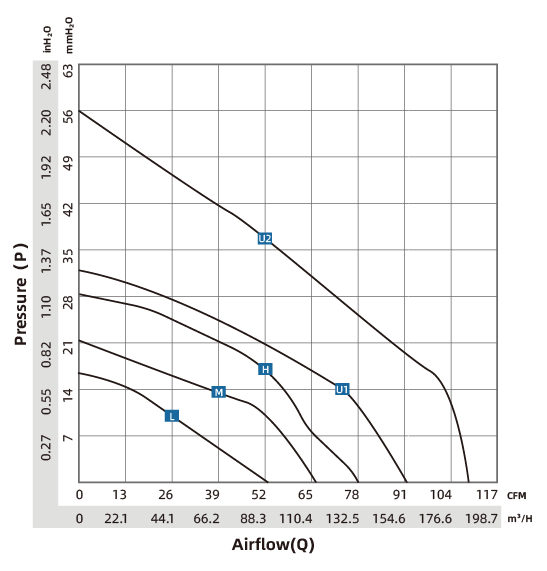

P-Q Curve Chart

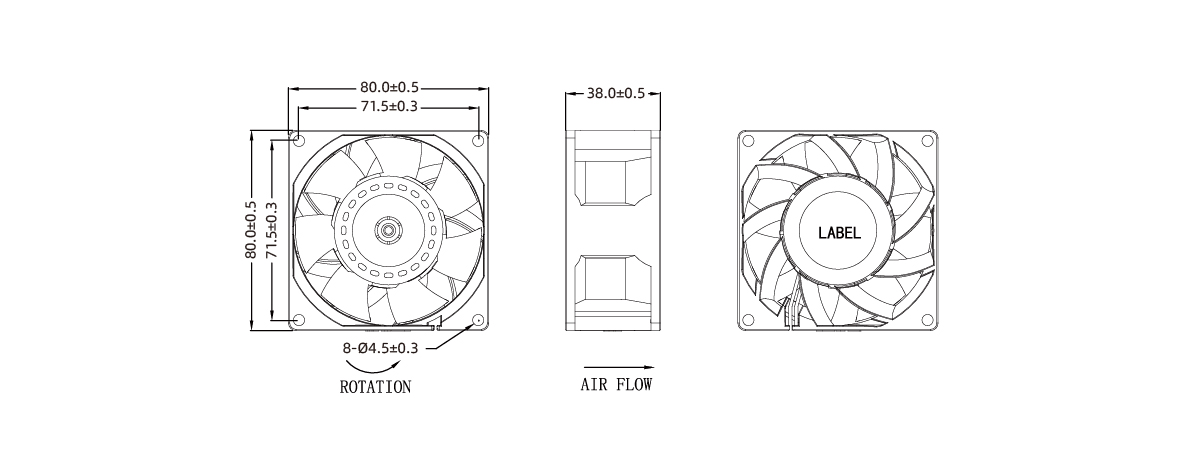

Drawing
